Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL5.0-24-130BPWR XFMR LAMINATED 5VA TH |
1,520 | - |
|
Datasheet | PL5.0-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 420mA, Series 210mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms | - |
|
|
PL5.0-10-130BPWR XFMR LAMINATED 5VA TH |
5,491 |
1+：$7.28800 10+：$6.57360 25+：$6.30592 54+：$6.08845 108+：$5.89807 270+：$5.65431 540+：$5.47588 1026+：$5.31509 |
|
Datasheet | PL5.0-xx-130B | Tube | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1A, Series 500mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms | - |
|
3FS-424PWR XFMR LAMINATED 6VA TH |
149 | - |
|
Datasheet | 3FS-4xx | Tube | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 34.55mm | 2500Vrms | - |
|
3FD-416PWR XFMR LAMINATED 6VA TH |
1,554 | - |
|
Datasheet | 3FD-4xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 38.00mm | 2500Vrms | - |
|
|
3FD-424PWR XFMR LAMINATED 6VA TH |
854 | - |
|
Datasheet | 3FD-4xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 38.00mm | 2500Vrms | - |
|
3FD-436PWR XFMR LAMINATED 6VA TH |
367 | - |
|
Datasheet | 3FD-4xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 34.55mm | 2500Vrms | - |
|

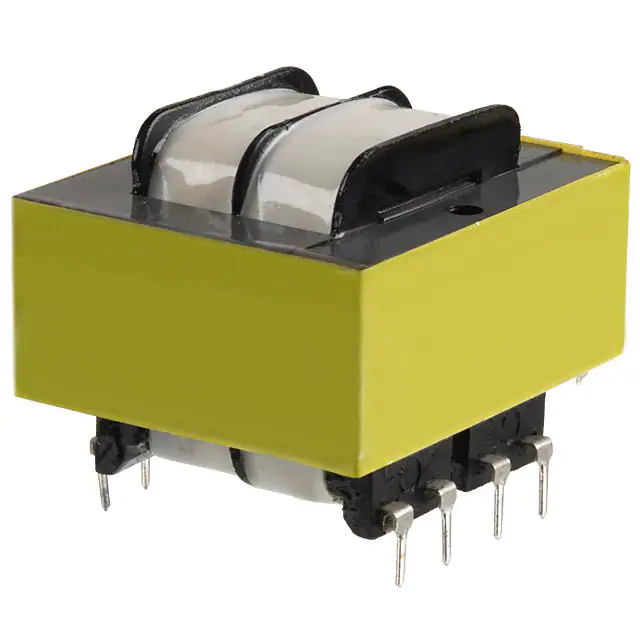

3FD-524PWR XFMR LAMINATED 12VA TH |
355 | - |
|
Datasheet | 3FD-5xx | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms | - |
|
3FS-216PWR XFMR LAMINATED 1.1VA TH |
105 | - |
|
Datasheet | 3FS-2xx | Tube | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms | - |
|
3FS-312PWR XFMR LAMINATED 2.4VA TH |
566 | - |
|
Datasheet | 3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|
|
3FS-316PWR XFMR LAMINATED 2.4VA TH |
500 | - |
|
Datasheet | 3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
