Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCT50-05E07ABPWR XFMR LAMINATED 50VA CHAS MT |
230 |
1+：$19.00800 10+：$17.11520 25+：$16.40864 50+：$15.89168 100+：$15.38888 250+：$14.74611 500+：$14.27622 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|

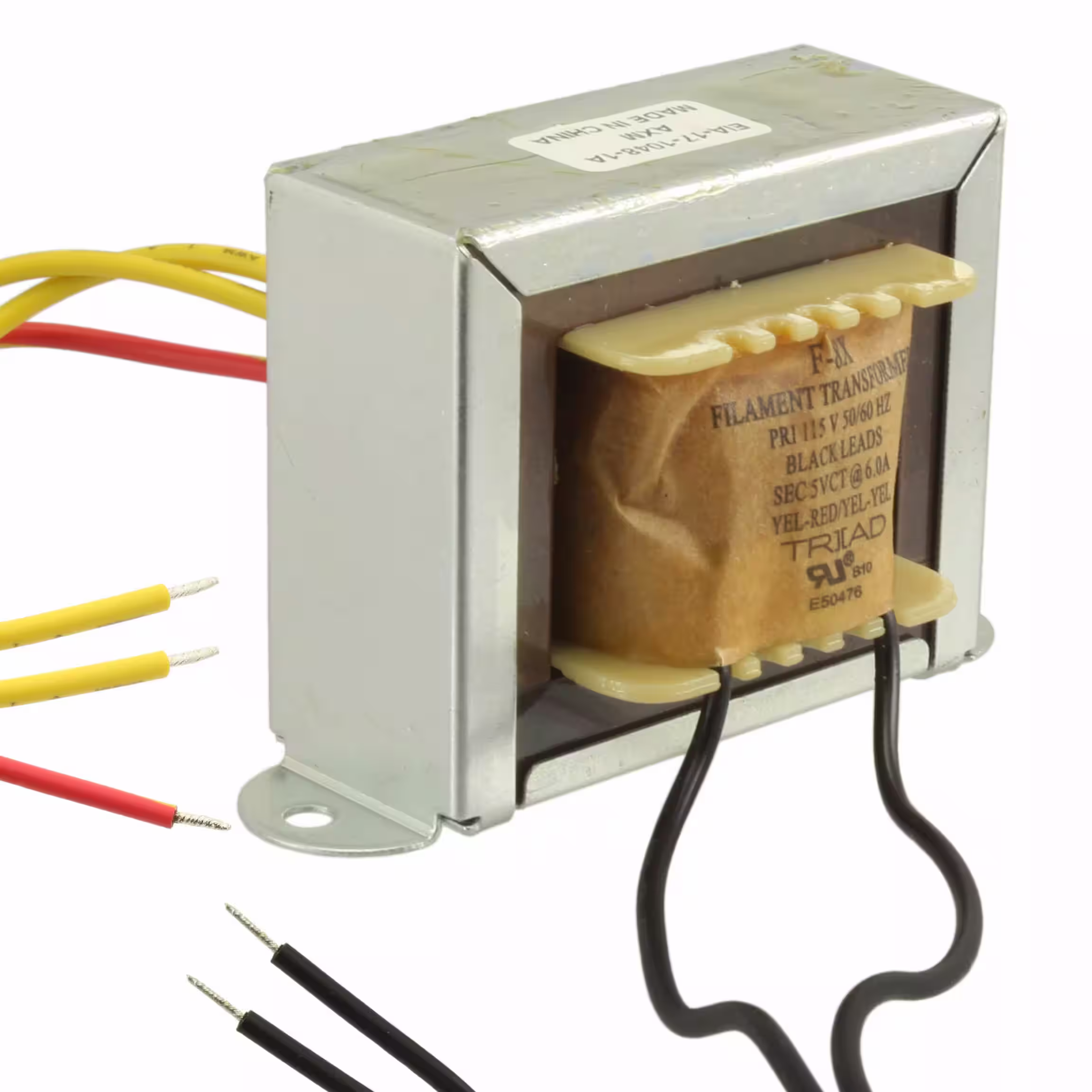

F-8XPWR XFMR LAMINATED 30VA CHAS MT |
1,494 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 5V | 6A | Single | Single | Yes | 30VA | Chassis Mount | Wire Leads | 95.25mm L x 53.97mm W | 57.94mm | 1500Vrms | 1.7 lbs (771.1 g) |
|

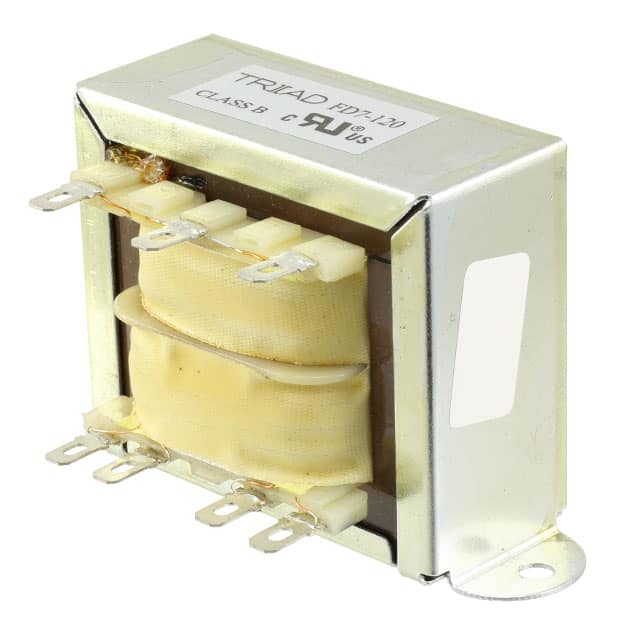

FD7-120PWR XFMR LAMINATED 56VA CHAS MT |
2,631 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 120V | 500mA | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

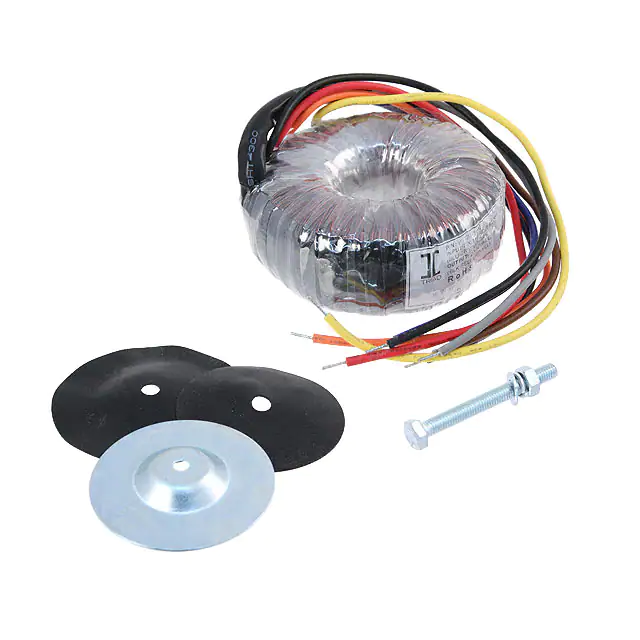

VPT24-1040PWR XFMR TOROIDAL 25VA CHAS MT |
3,938 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.08A, Series 1.04A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|

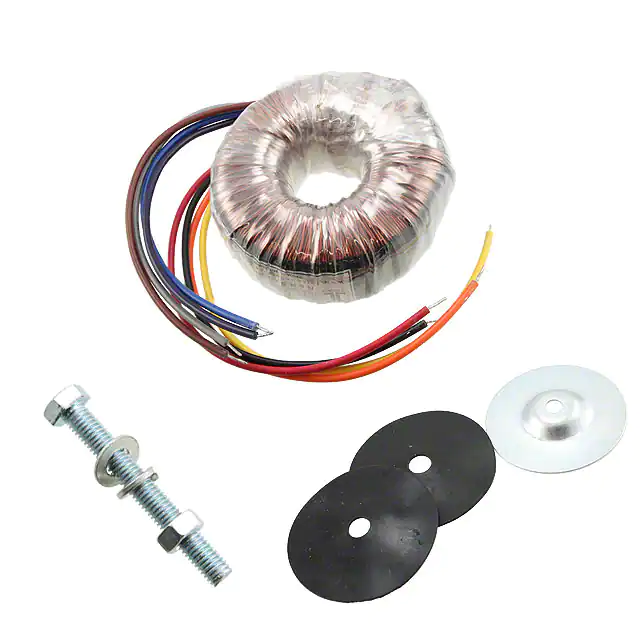

VPT18-1390PWR XFMR TOROIDAL 25VA CHAS MT |
74 |
1+：$25.48800 10+：$22.93840 25+：$21.98720 50+：$21.29104 100+：$20.61488 250+：$19.75085 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 2.78A, Series 1.39A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|

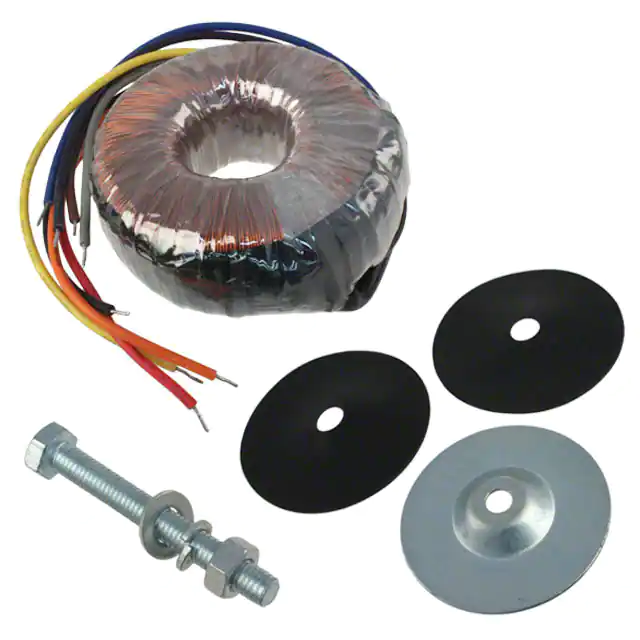

VPT36-690PWR XFMR TOROIDAL 25VA CHAS MT |
2,545 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.38A, Series 690mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|

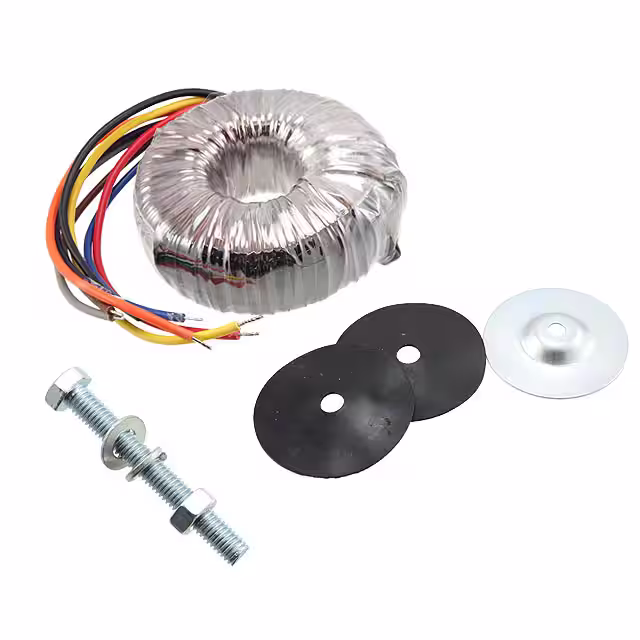

VPT12-2080PWR XFMR TOROIDAL 25VA CHAS MT |
1,853 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 6V, Series 12V | Parallel 4.16A, Series 2.08A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|
VPP28-2000PWR XFMR LAMINATED 56VA TH |
1,334 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 4A, Series 2A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
|
VPP20-2800PWR XFMR LAMINATED 56VA TH |
1,856 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|

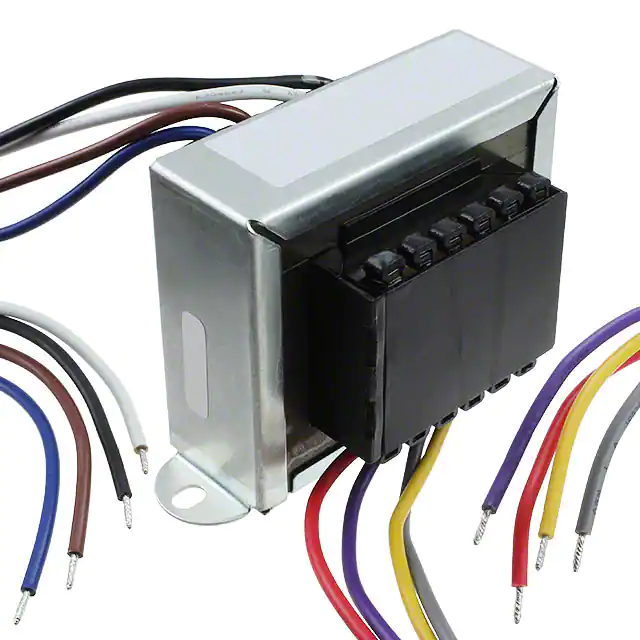

VPL24-2000PWR XFMR LAMINATED 50.0VA CHAS |
4,406 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 24V | 2.083A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
