Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BV301S12006-ZUPWR XFMR LAMINATED 0.6VA TH |
3,027 | - |
|
Datasheet | EI 30-5 | Box | Active | Laminated Core | 115V | 12V | 50mA | Single | Single | No | 0.6VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 15.40mm | 4200Vrms | - |
|

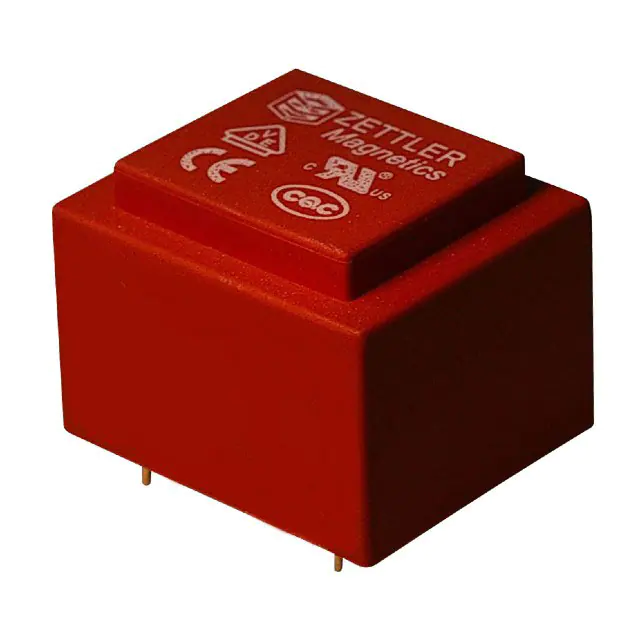

BV302S06020-ZUPWR XFMR LAMINATED 2VA TH |
4,066 | - |
|
Datasheet | EI30-15.5 | Box | Active | Laminated Core | 230V | 6V | 333mA | Single | Single | No | 2VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 27.40mm | 4200Vrms | - |
|
|
BV301S12010-ZUPWR XFMR LAMINATED 1VA TH |
2,249 | - |
|
Datasheet | EI30-10.5 | Box | Active | Laminated Core | 115V | 12V | 83mA | Single | Single | No | 1VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 22.30mm | 2800Vrms | - |
|
|
BV301S06010-ZUPWR XFMR LAMINATED 1VA TH |
2,048 | - |
|
Datasheet | EI30-10.5 | Box | Active | Laminated Core | 115V | 6V | 166mA | Single | Single | No | 1VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 22.30mm | 2800Vrms | - |
|
|
BV301S09006-ZUPWR XFMR LAMINATED 0.6VA TH |
2,494 | - |
|
Datasheet | EI 30-5 | Box | Active | Laminated Core | 115V | 9V | 66mA | Single | Single | No | 0.6VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 15.40mm | 4200Vrms | - |
|
|
BV302S06010-ZUXFRMR 230V ENCAPS 1.0VA CL2 THT |
1,325 | - |
|
Datasheet | EI30-10.5 | Box | Active | Laminated Core | 230V | 6V | 166mA | Single | Single | No | 1VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 22.30mm | 4200Vrms | - |
|
AH40028PWR XFMR LAMINATED 6.0VA TH |
2,144 | - |
|
Datasheet | AH400 | Box | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 400mA, Series 200mA | Single | Dual, Multiple Taps | No | 6VA | Through Hole | PC Pin | 41.8mm L x 34mm W | 33.40mm | 2500V | - |
|
|
AH30028PWR XFMR LAMINATED 2.4VA TH |
1,745 | - |
|
Datasheet | AH300 | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 600mA, Series 300mA | Single | Dual, Multiple Taps | No | 2.4VA | Through Hole | PC Pin | 35.2mm L x 29.8mm W | 30.20mm | 2500V | - |
|
|
AH20028PWR XFMR LAMINATED 1.1VA TH |
1,293 | - |
|
Datasheet | AH200 | Box | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Dual, Multiple Taps | No | 1.1VA | Through Hole | PC Pin | 35.2mm L x 29.8mm W | 24.00mm | 2500V | - |
