Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXH6115AC6USENSOR 16.68PSIA 0.13" 4.7V SSOP |
2,006 | - |
|
Datasheet | MPXH6115A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tube | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
MPXH6115AC6T1SENSOR 16.68PSIA 0.13" 4.7V SSOP |
418 | - |
|
Datasheet | MPXH6115A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|

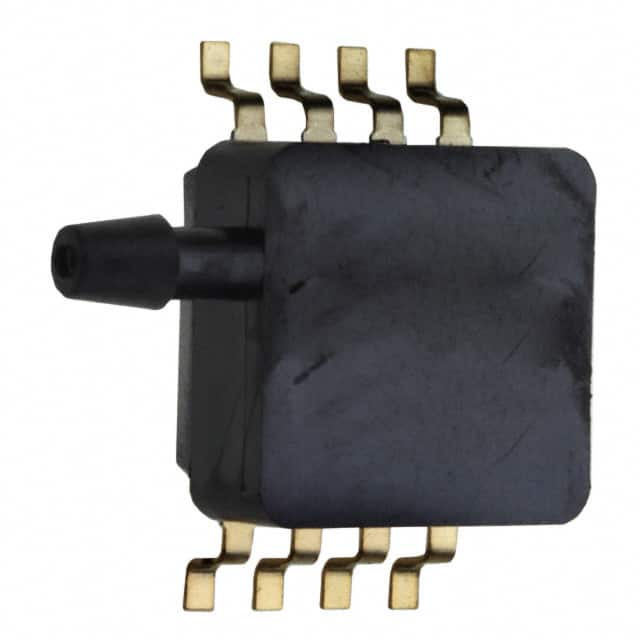

MP3V5004GPSENSOR 0.57PSIG 0.13" 3V 8SOP |
3,965 | - |
|
Datasheet | MP3V5004 | 8-SMD, Gull Wing, Side Port | Tray | Active | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 0.6 V ~ 3 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | 8-SOP |
|
MP3V5050GC6USENSOR 7.25PSIG 0.13" 2.82V |
984 | - |
|
Datasheet | MP3V5050 | 8-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MP3V5004DPSENSOR 0.57PSID 0.13" 3V 8SOP |
391 | - |
|
Datasheet | MP3V5004 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Active | Board Mount | Differential | 0.57PSI (3.92kPa) | Analog Voltage | 0.6 V ~ 3 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | 8-SOP |
|
MPXV2202DPT1SENSOR 29.01PSID 0.13" .04V 8SOP |
769 | - |
|
Datasheet | MPX2202 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tape & Reel (TR) | Active | Board Mount | Differential | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
MP3V5050VC6USENSOR 7.25PSI 0.13" 2.82V |
1,976 | - |
|
Datasheet | MP3V5050 | 8-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Vacuum | -7.25PSI (-50kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | -29.01PSI (-200kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPX2010DPSENSOR 1.45PSID 0.19" .025V |
6,248 |
1+：$19.65600 5+：$17.95200 10+：$17.31840 25+：$16.56000 50+：$16.04128 100+：$15.56544 500+：$14.60635 |
|
Datasheet | MPX2010 | 4-SIP Module | Tray | Active | Board Mount | Differential | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MP3V5050GPSENSOR 7.25PSIG 0.13" 2.82V 8SOP |
8,050 | - |
|
Datasheet | MP3V5050 | 8-SMD, Gull Wing, Side Port | Tray | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
MP3H6115AC6T1SENSOR 16.68PSIA 0.13" 2.8V SSOP |
300 | - |
|
Datasheet | - | 8-SOIC (0.335", 8.50mm Width), Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.12 V ~ 2.8 V | ±1.5% | 2.7V ~ 3.3V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
