Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FL1012NLMODULE FILTER SNGL LAN 16PIN TH |
2,008 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Through Hole | 0.995" L x 0.395" W (25.28mmx 10.03mm) | 0.338" (8.59mm) | - | - | - |
|
PE-68017SNLMODULE FILTER SNGL LAN 10-SIL |
2,248 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Through Hole | 1.000" L x 0.210" W (25.40mm x 5.33mm) | 0.450" (11.43mm) | - | - | - |
|
H1140NLMODULE XFRMR ETHERNET LAN 40SOIC |
4,220 | - |
|
Datasheet | - | Tube | Obsolete | - | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
PE-65870NLTRANSFORMER TELECOM DUAL T1/E1 |
1,353 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:1.15CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
PE-68062LNLMODULE XFRMR/CHOKE QUAD 40-SOIC |
1,105 | - |
|
Datasheet | - | Tube | Obsolete | - | - | - | 1CT:1.41CT | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
T1091NLTRANSFORMER TELECOM DUAL T1/E2 |
4,466 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT, 1:1.36CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX5007NLMODULE SINGLE GIGABIT LAN 24SOIC |
2,017 | - |
|
Datasheet | - | Tube | Obsolete | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|

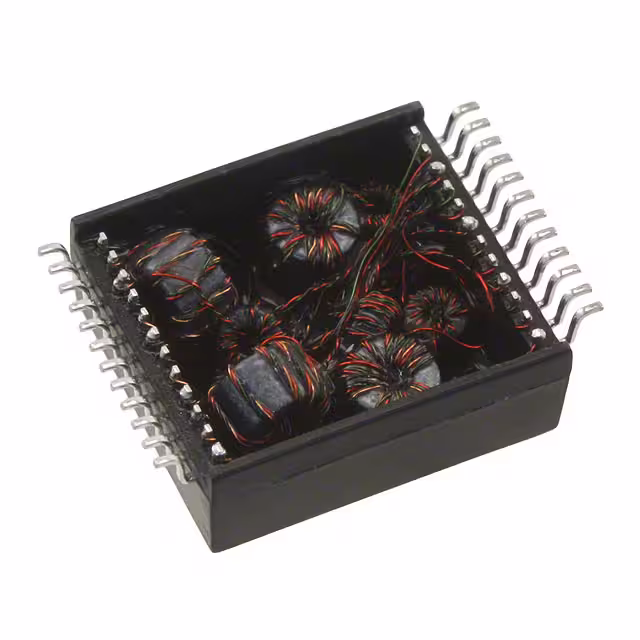

HX5009NLMODULE XFORMR GIGABIT SINGLE LAN |
3,687 | - |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
BX4107NLTTRANSFORMER 1.33:1 |
3,025 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | 1.33:1 | Surface Mount | 0.413" L x 0.276" W (10.50mm x 7.00mm) | 0.433" (11.00mm) | -40°C ~ 85°C | - | - |
|
|
PA3123NLXFMR CM-FLYBACK 3.5W REINF |
1,332 | - |
|
Datasheet | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - |
