Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX5014NLMODULE DL GIGABIT ETHER LAN 48P |
424 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
HX4019NLTRANSF MOD 2.5G 4CH 60W POE |
180 | - |
|
Datasheet | - | Tube | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | - | - | - |
|
|

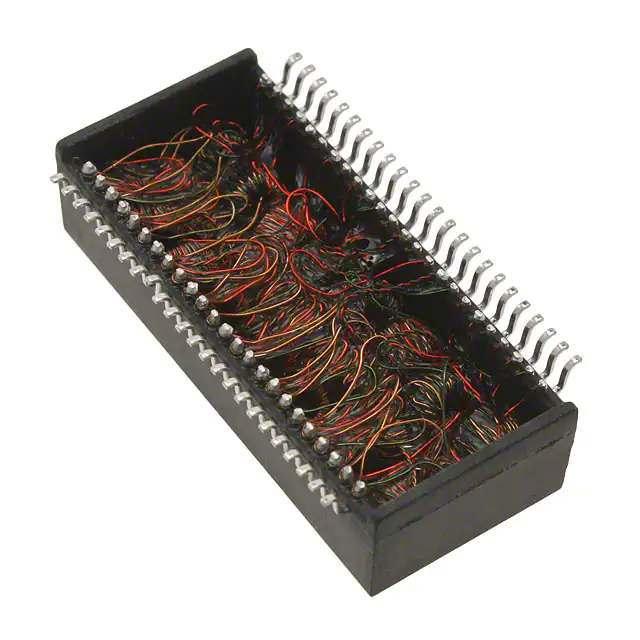

HX5014NLTTRANSFORMER MODULE GIGABIT 2PORT |
369 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
PM2180.011NLTXFMR GATE-DR 1CT:1CT SM NPB |
2,533 | - |
|
Datasheet | PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1CT:1CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
PH9085.021NLTIND PWR 3.0X3.0X1.2 1.16MH SMT |
1,525 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | - | - | - |
|
HM2106NLTMDL, SIN, XFMR, 1:1, 4.3KV, SMT, |
610 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 135µH | - | 1:1 | Surface Mount | 0.335" L x 0.524" W (8.50mm x 13.31mm) | 0.226" (5.75mm) | -40°C ~ 125°C | - | - |
|
PA1277NLXFMR FLYBACK EP10 SMT |
561 | - |
|
Datasheet | PA1277NL | Tray | Active | Isolation and Data Interface (Encapsulated) | 20.4µH | - | - | Surface Mount | 0.600" L x 0.515" W (15.24mm x 13.08mm) | 0.451" (11.45mm) | - | - | - |
|
|
PM2180.012NLTXFMR GATE-DR 1CT:2CT SM NPB |
2,698 | - |
|
Datasheet | PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1CT:2CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
PA2777NLPULSE XFMR 1:1 335.2UH |
872 | - |
|
Datasheet | - | Tray | Active | - | 335.2µH | 9.3VµS | 1:1 | Surface Mount | 0.291" L x 0.248" W (7.40mm x 6.30mm) | 0.232" (5.90mm) | -40°C ~ 130°C | - | - |
|

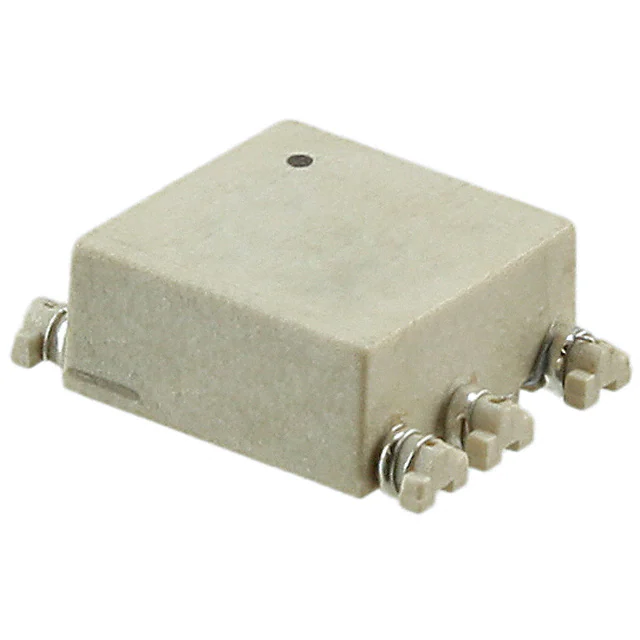

PA2005NLTPULSE XFMR 1:1:1 840UH |
5,058 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 840µH | 26VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
