Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

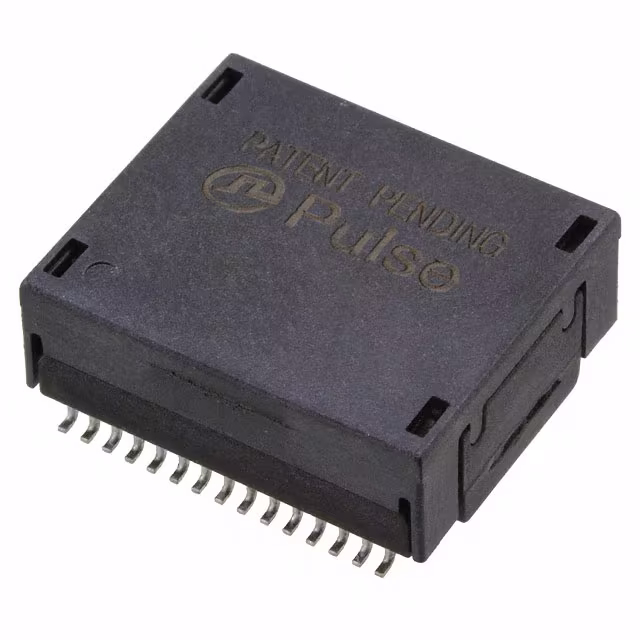

H7137FNLTRANSFORMER MODULE 10GBASE-T SMD |
308 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.698" L x 0.585" W (17.73mm x 14.86mm) | 0.290" (7.37mm) | 0°C ~ 70°C | - | - |
|
HM1234FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
164 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | -40°C ~ 105°C | Automotive | AEC-Q200 |
|
H2017NLXFRMR MAGNT MOD 4PORT POE 10/100 |
204 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|

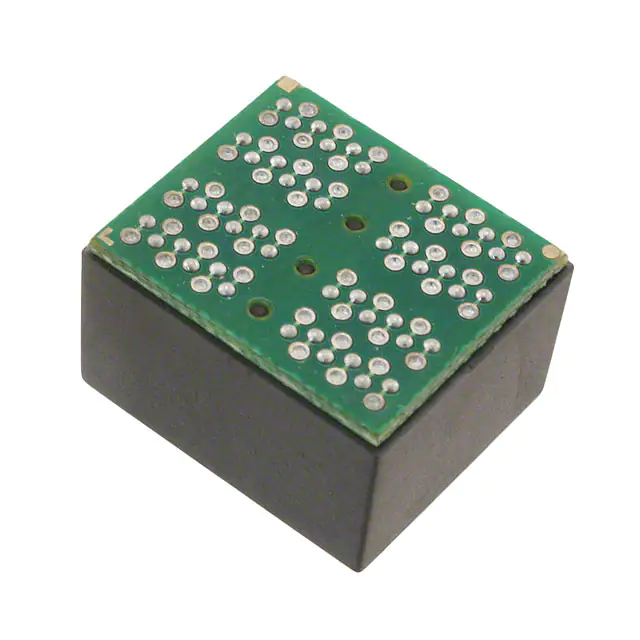

H5201NLMODULE XFORMR DUAL GIGABIT SMD |
204 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | 0°C ~ 70°C | - | - |
|

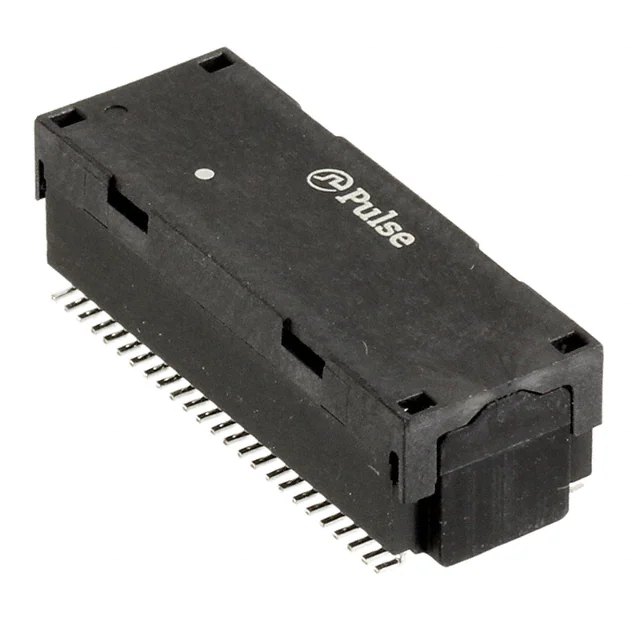

H5020FNLPULSE XFMR 1CT:1 TX 1CT:1 RX |
135 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
H5200NLMODULE XFORMR DUAL GIGABIT SMD |
108 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | 0°C ~ 70°C | - | - |
|
HX6136HLTMODULE DUAL GIGABIT ETHERNET 50P |
500 | - |
|
Datasheet | HX6136HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX6136HLMODULE DUAL GIGABIT ETHERNET 50P |
180 | - |
|
Datasheet | HX6136HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX5020HLMODULE DUAL GIGABIT ETHERNET 50P |
170 | - |
|
Datasheet | HX5020HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX6135HLTMODULE DUAL GIGABIT ETHERNET 50P |
500 | - |
|
Datasheet | HX6135HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
