Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A165L-JRM-24D-1SWITCH PUSHBUTTON SPDT 5A 125V |
3,785 | - |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
ZAP-YSWITCH PUSHBUTTON SPDT 15A 125V |
1,053 | - |
|
Datasheet | ZAP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 30.50mm Dia | -25°C ~ 80°C |
|
ZAP-2GSWITCH PUSHBUTTON SPDT 15A 125V |
1,244 | - |
|
Datasheet | ZAP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round, Button, Mushroom | No Marking | Green | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 30.50mm Dia | -25°C ~ 80°C |
|
A16L-JGM-12D-2SWITCH PUSHBUTTON DPDT 5A 125V |
4,963 | - |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A165L-AYM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
4,523 | - |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Yellow | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A16-JGM-2SWITCH PUSHBUTTON DPDT 5A 125V |
4,287 | - |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A165L-JGM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
3,031 | - |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A165L-JWM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
2,000 | - |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A165L-JYA-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
1,370 | - |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Yellow | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

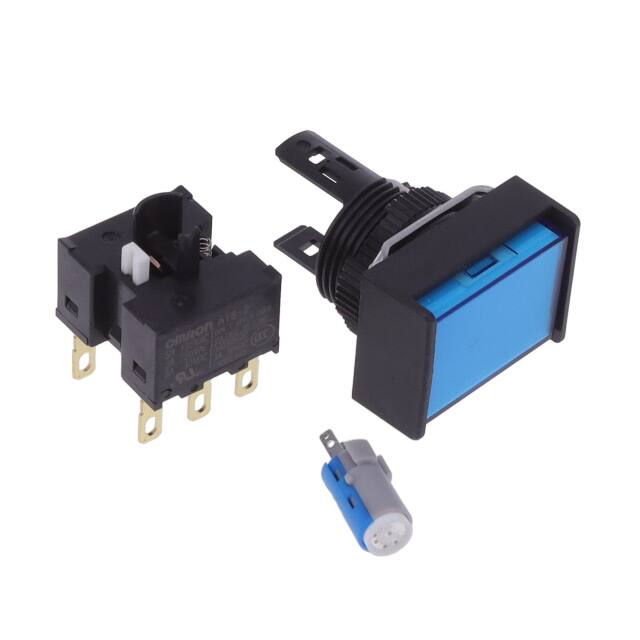

A165L-JAM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
3,712 | - |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Blue | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
