Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB4BW3445ILLUMINATED PUSH BUTTON, HARMONY |
4,453 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 220 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
9001SKR9P38LRRH1330MM PUSH BUTTON, TYPE SK, RED I |
4,871 | - |
|
Datasheet | Harmony 9001SK | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | - | - | - | Round, Button, Mushroom | - | Red | LED, Red | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | - |
|
XB7NA42HARMONY XB7, MONOLITHIC PUSH BUT |
2,382 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NC | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

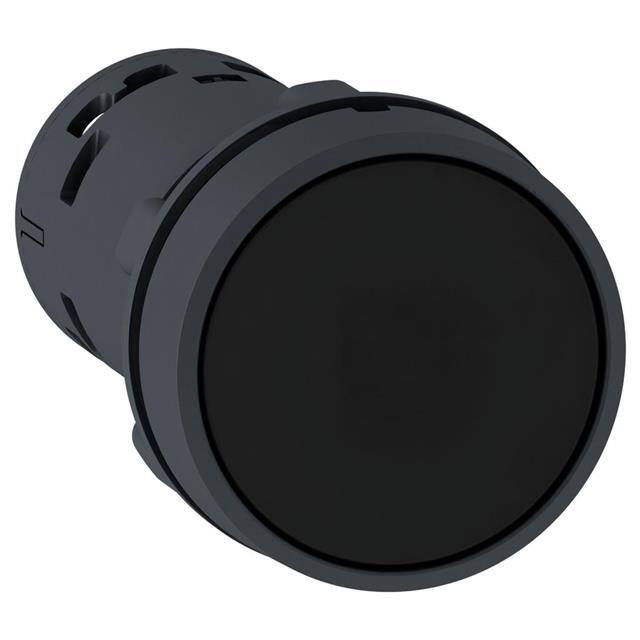

XB7NA21HARMONY XB7, MONOLITHIC PUSH BUT |
4,232 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
XB7NH21PUSH BUTTON, HARMONY XB7, BLACK |
4,904 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

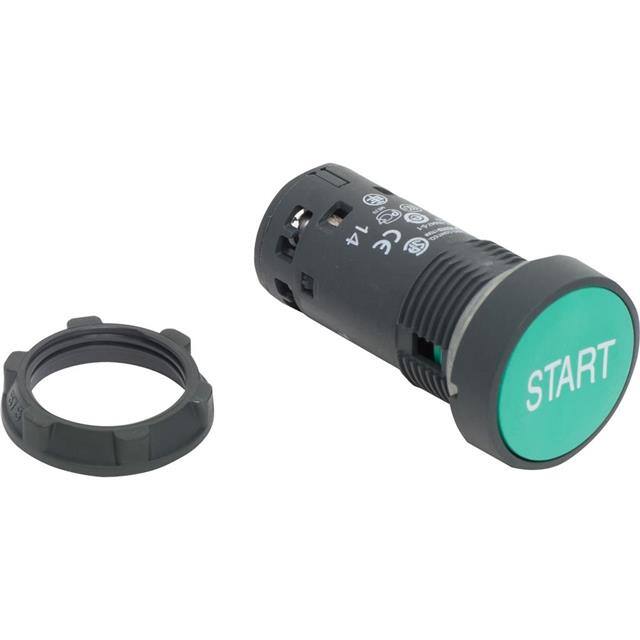

XB7NA3133HARMONY XB7, MONOLITHIC PUSH BUT |
1,324 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB7NA4234HARMONY XB7, MONOLITHIC PUSH BUT |
1,567 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NC | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB6CA21BCOMPLETE PUSH BUTTON, HARMONY XB |
2,850 | - |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button, Flush | - | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

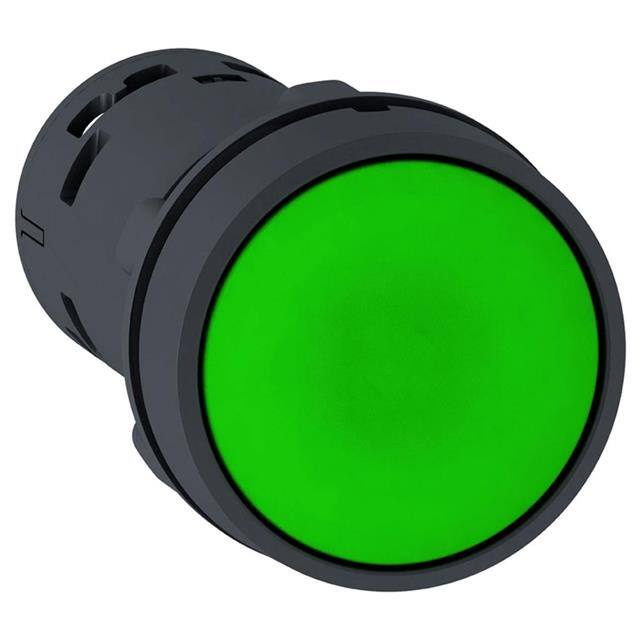

XB7NA33PUSH BUTTON, HARMONY XB7, PB, SP |
1,207 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | DPST-NO | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
XB7NA25HARMONY XB7, MONOLITHIC PUSH BUT |
1,907 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
