Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB4BL45PUSH BUTTON, HARMONY XB4, COMPLE |
1,834 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AA35HARMONY XB5, PUSH BUTTON, PLASTI |
1,179 | - |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

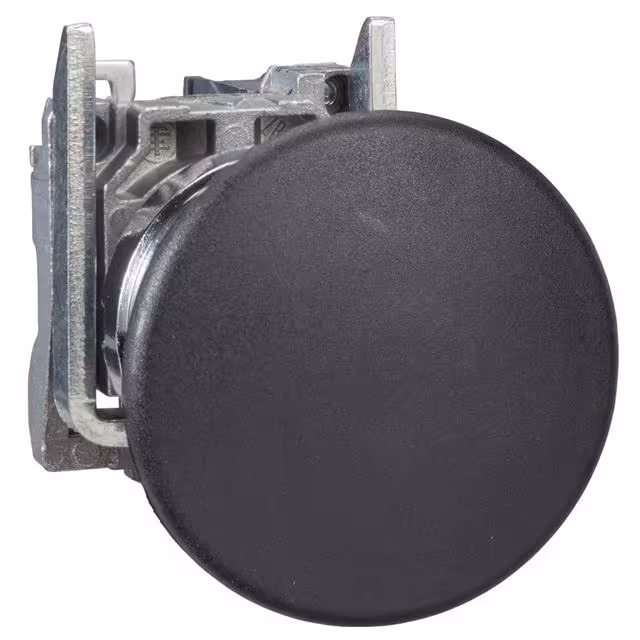

XB4BC21HARMONY XB4, PUSH BUTTON, METAL, |
2,688 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Mushroom | - | Black | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB7NW37M1HARMONY XB7, MONOLITHIC ILLUMINA |
3,696 | - |
|
Datasheet | Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Clear | LED, Clear | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
9001AB1PUSHBUTTON +OPTIONS |
4,223 | - |
|
Datasheet | Harmony 9001A | Box | Active | - | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | Circular - 30.00mm Dia | - |
|

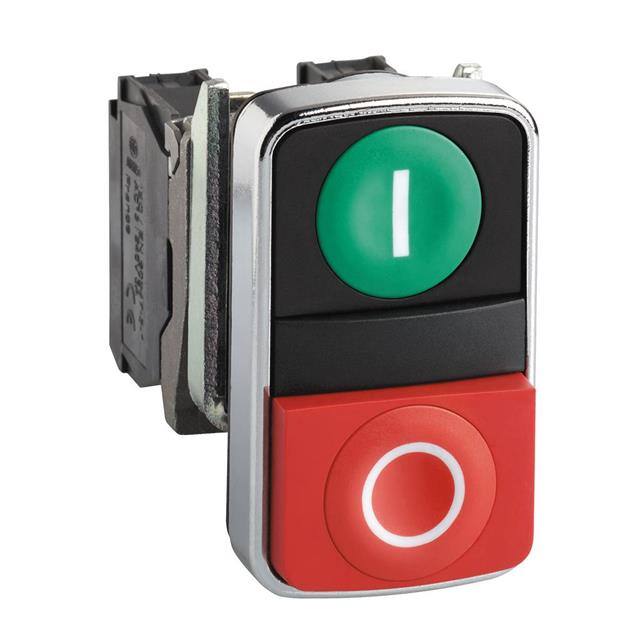

XB4BL73415HARMONY XB4, DOUBLE-HEADED PUSH |
1,029 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
9001KR3UH13PUSH BUTTON 600VAC 10A 30MM T-K |
4,878 | - |
|
Datasheet | Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
XB7NW33G1HARMONY XB7, MONOLITHIC ILLUMINA |
1,480 | - |
|
Datasheet | Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
9001AS2PUSHBUTTON +OPTIONS |
2,722 | - |
|
Datasheet | Harmony 9001A | Box | Active | - | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9001AS1PUSHBUTTON +OPTIONS |
1,977 | - |
|
Datasheet | Harmony 9001A | Box | Active | - | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
