Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XACA481PENDANT STATION 600VAC 10AMP XAC |
3,447 | - |
|
Datasheet | Harmony XAC | Box | Active | Free Hanging | - | DPST-NO/NC | On-Off, Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | - | - | - | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 70°C |
|

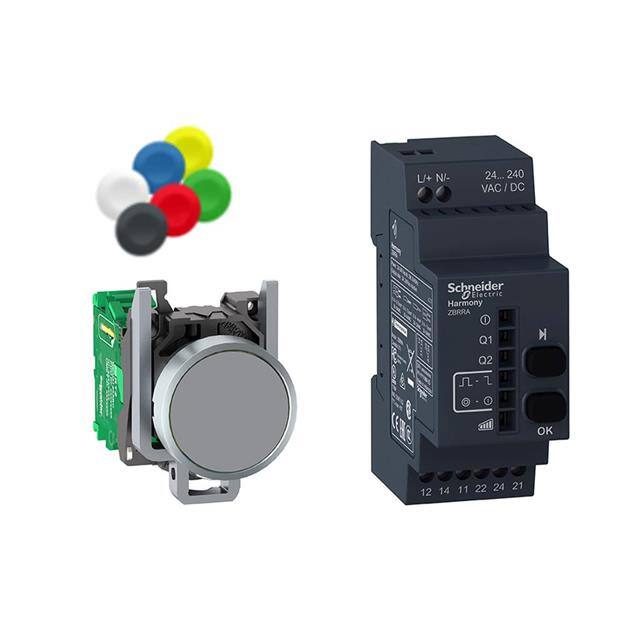

XB4RFA02HARMONY XB4, WIRELESS PUSH BUTTO |
3,530 | - |
|
Datasheet | Harmony XB4R | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button | - | - | - | - | Wireless | - | - | - | - |
|

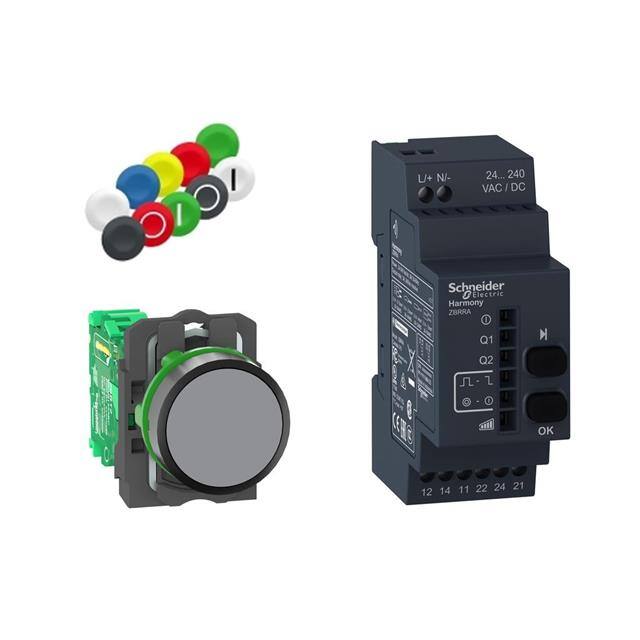

XB5RFA02HARMONY XB5, WIRELESS PUSH BUTTO |
1,775 | - |
|
Datasheet | Harmony XB5R | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Flush | - | - | LED, Green | 24 ~ 240 VAC/DC | Wireless | - | - | Circular - 22.00mm Dia | - |
|
XB5RMA04HARMONY XB5, PACK WITH 1 WIRELES |
4,346 | - |
|
Datasheet | Harmony XB5R | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button | - | - | LED, Green | 24 ~ 240 VAC/DC | Wireless | - | - | - | - |
|
XB6EAW3B1PILLUMINATED MONOLITHIC PUSH BUTT |
2,901 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1.5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
XB6EAW4B1PILLUMINATED MONOLITHIC PUSH BUTT |
3,465 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Red | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

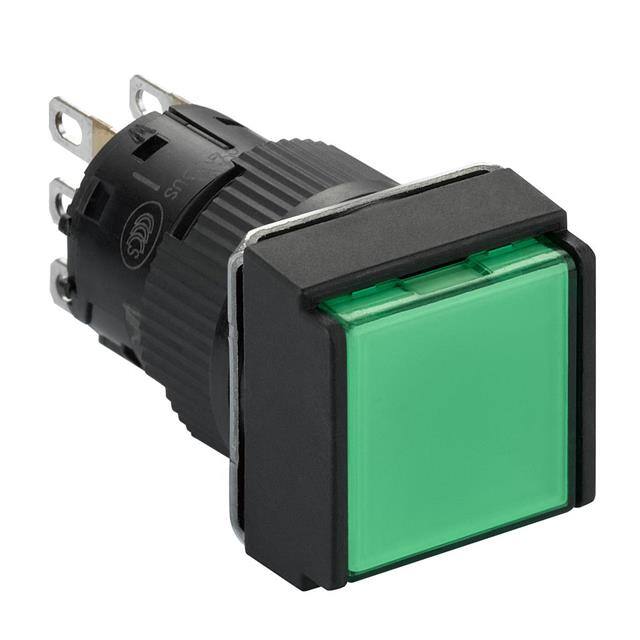

XB6ECW3B1PILLUMINATED MONOLITHIC PUSH BUTT |
4,135 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Square, Button | - | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

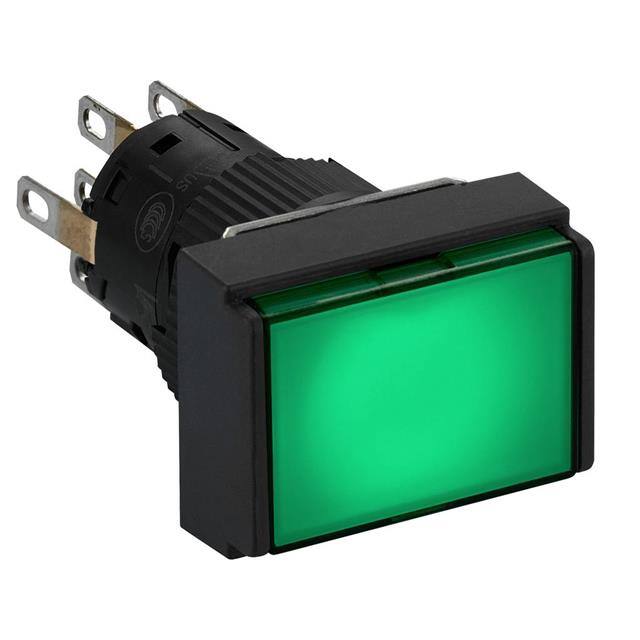

XB6EDW3B2PILLUMINATED MONOLITHIC PUSH BUTT |
1,534 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | Off-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Rectangular, Button, Flush | - | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

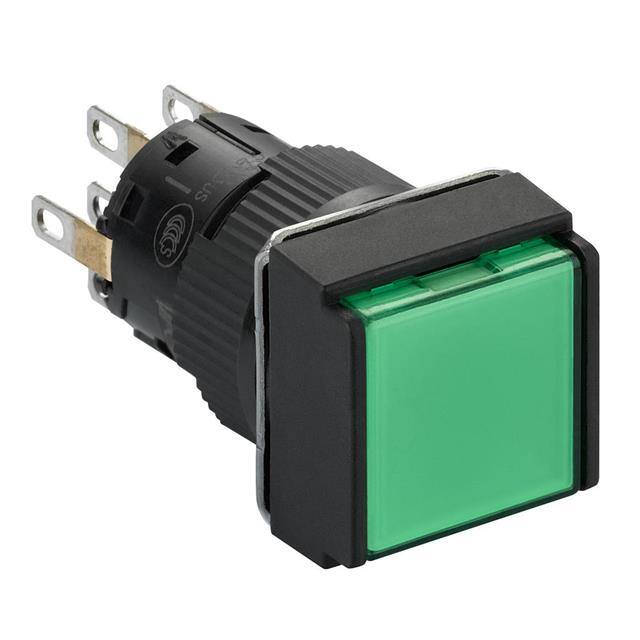

XB6ECW3B2PILLUMINATED MONOLITHIC PUSH BUTT |
4,892 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Square, Button | - | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
XB6ECW1B2PILLUMINATED MONOLITHIC PUSH BUTT |
3,900 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | Off-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Square, Button | - | White | LED, White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
