Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

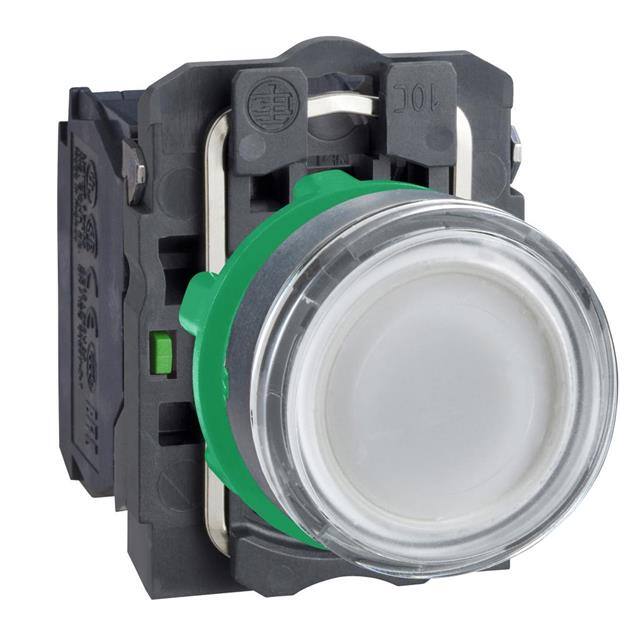

XB5AW31G5HARMONY XB5, ILLUMINATED PUSH BU |
4,519 | - |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AW33B3HARMONY XB5, ILLUMINATED PUSH BU |
3,923 | - |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AW34G5HARMONY XB5, ILLUMINATED PUSH BU |
1,059 | - |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
9001SKRU10PUSHBUTTON 600VAC 10AMP 30MM SKY |
2,449 | - |
|
Datasheet | Harmony 9001SK | Box | Active | Panel Mount, Front | Standard | - | - | 10A (AC) | 600 V | - | Round, Button | - | Black, Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | - |
|
|
XB4FW36M5FLUSH CAPS ILL PB BL LED 230V 1N |
4,350 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 230 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
XB4FW35B5FLUSH CAPS ILL PB OR LED 24V 1NO |
4,487 | - |
|
Datasheet | Harmony XB4 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
XB4FW36G5FLUSH CAPS ILL PB BL LED 120V 1N |
4,386 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
XB4FW31M5FLUSH CAPS ILL PB WH LED 230V 1N |
3,469 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 230 ~ 240 VAC | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -40°C ~ 70°C |
|
|
XB4FW35M5FLUSH CAPS ILL PB OR LED 230V 1N |
3,188 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 230 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
XB4FW33G5FLUSH CAPS ILL PB GR LED 120V 1N |
4,533 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
