Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

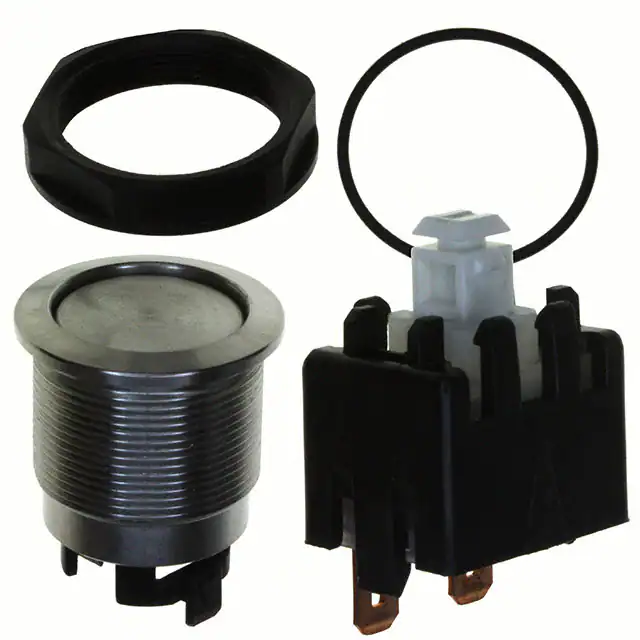

1241.6821.1110000SWITCH PUSHBUTTON SPST 12A 250V |
2,566 | - |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|

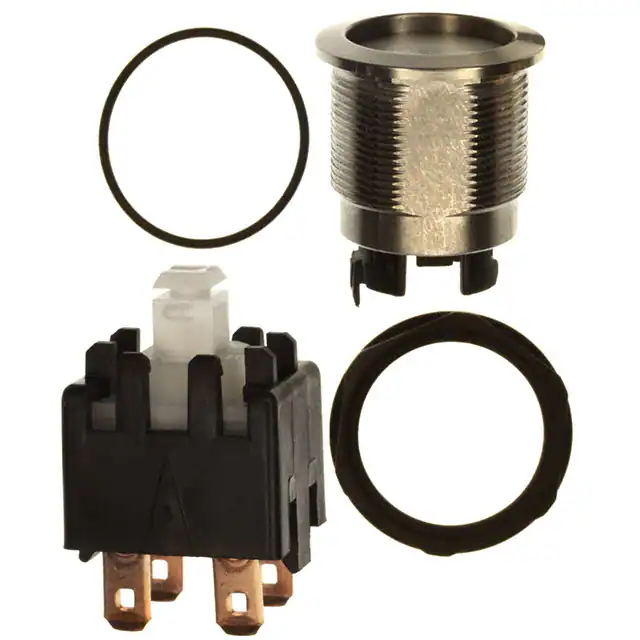

1241.6821.1120000SWITCH PUSHBUTTON DPST 12A 250V |
4,457 | - |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
3-101-404SWITCH PUSH SPST-NO 100MA 42V |
4,441 | - |
|
Datasheet | CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Finger Guide | Circular - 22.10mm Dia | -40°C ~ 60°C |
|

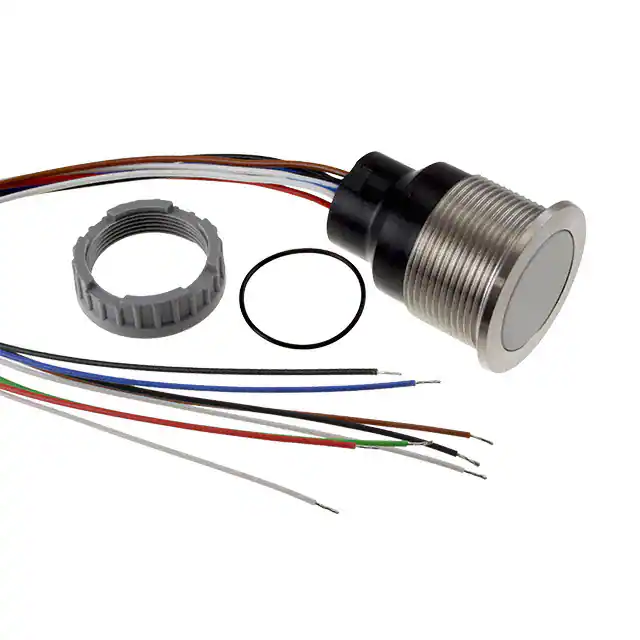

3-101-424SWITCH PUSH SPST-NO 100MA 42V |
2,201 | - |
|
Datasheet | CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Ceramic Actuator | Circular - 22.10mm Dia | -40°C ~ 60°C |
|
1241.2859SWITCH PUSH SPST-NO 125MA 48V |
1,210 | - |
|
Datasheet | MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -25°C ~ 60°C |
|
MCS-16-NO00A12-Z0NCZ0NCWF-PI0RG00R-S0000-SMCS 16, METAL SWITCH SHORT STROK |
100 | - |
|
Datasheet | MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.10mm Dia | -20°C ~ 60°C |
|
1241.2411.3SWITCH PUSH SPST-NO 100MA 42V |
4,752 | - |
|
Datasheet | PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Red | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
3-145-546MSM22 SWITCH MO NX SPDT 100MA |
1,027 | - |
|
Datasheet | MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|

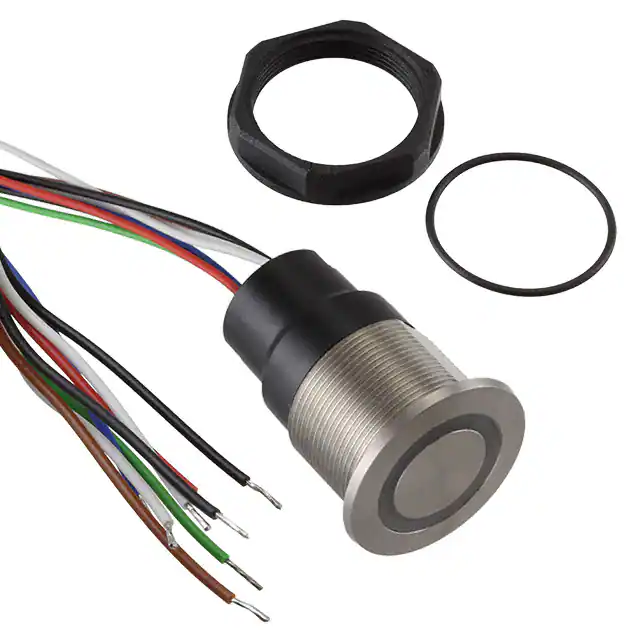

3-101-420SWITCH PUSHBUTTON SPST 100MA 42V |
4,118 | - |
|
Datasheet | CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -40°C ~ 60°C |
|

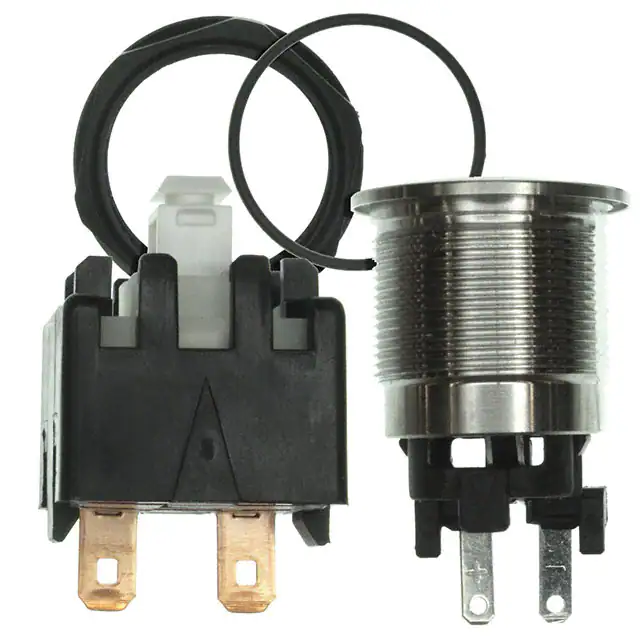

1241.6823.1114000SWITCH PUSHBUTTON SPST 12A 250V |
1,154 | - |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Blue | 3.7 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
