Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30141790ILLUMINATED PUSHBUTTON. YELLOW |
4,179 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141896ILLUMINATED PUSHBUTTON. CLEAR |
2,483 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141846ILLUMINATED PUSHBUTTON. BLUE |
2,882 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

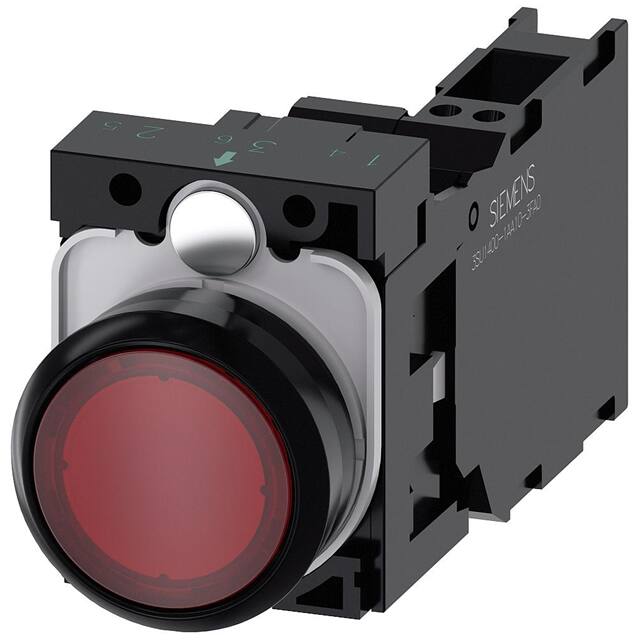

A6X30142365ILLUMINATED PUSHBUTTON. RED |
1,959 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11560AB301BA0ILLUMINATED PUSHBUTTON, MOM, YEL |
3,240 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11560AB601BA0ILLUMINATED PUSHBUTTON, MOM, WHT |
1,256 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11560AB701BA0ILLUMINATED PUSHBUTTON, MOM, CLR |
3,561 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11560AB401BA0ILLUMINATED PUSHBUTTON, MOM, GRN |
1,037 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11560AB001BA0ILLUMINATED PUSHBUTTON, MOM, AMB |
1,501 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Amber | LED, Amber | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11560AB501BA0ILLUMINATED PUSHBUTTON, MOM, BLU |
3,397 | - |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
