Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB6B2RS7M1CAL00Y500SWITCH PUSH SPST-NO 125MA 125V |
105 | - |
|
Datasheet | PB6 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Blue | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM7M1CAL07S500SWITCH PUSH SPST-NO 125MA 125V |
6,629 | - |
|
Datasheet | PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | LED, Blue | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM7M1CAL01S500SWITCH PUSH SPST-NO 125MA 125V |
311 | - |
|
Datasheet | PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | LED, White | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM2M1CAL06S500SWITCH PUSH SPST-NO 125MA 125V |
128 | - |
|
Datasheet | PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Green | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
MSP103C204SWITCH PUSH SPST-NO 3A 125V |
122 | - |
|
Datasheet | MSP3 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|

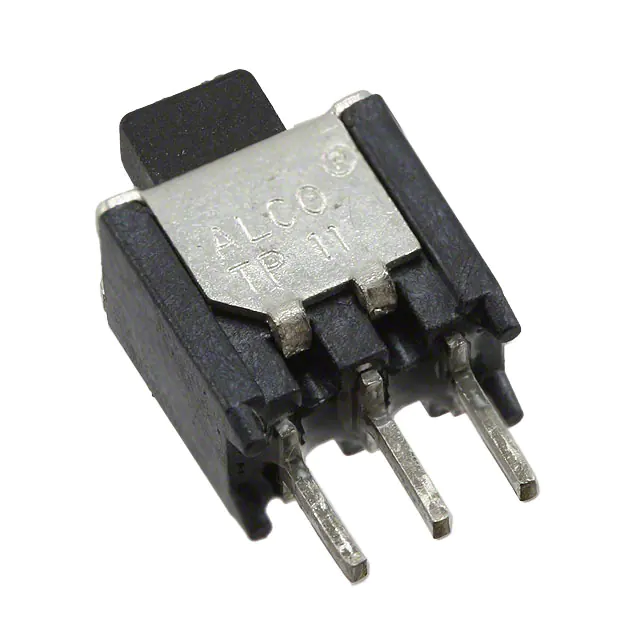

1825095-6SWITCH PUSHBUTTON SPDT 0.4VA 20V |
150 | - |
|
Datasheet | TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
AV1610P312R04SWITCH PUSHBUTTON SPDT 2A |
18 |
1+：$11.94400 10+：$10.30960 25+：$9.72096 50+：$9.29712 100+：$8.89112 300+：$8.28226 500+：$8.01299 1000+：$7.66082 |
|
Datasheet | AV16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | Power Symbol | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
1825098-1SWITCH PUSH SPST-NO 0.4VA 20V |
1,903 | - |
|
Datasheet | TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.83mm Dia | -30°C ~ 65°C |
|
AV2211EA12Q04SWITCH PUSHBUTTON SPDT 3A 250V |
77 |
1+：$22.74400 10+：$19.62240 25+：$18.49952 50+：$17.69136 100+：$16.91720 300+：$15.75606 500+：$15.24235 |
|
Datasheet | AV22 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
1825100-4SWITCH PUSH SPST-NO 0.4VA 20V |
1,459 | - |
|
Datasheet | TP | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
