Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV2211E612R04SWITCH PUSHBUTTON SPDT 0.4VA 20V |
2,117 | - |
|
Datasheet | AV22 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2211E624R04SWITCH PUSHBUTTON SPDT 0.4VA 20V |
3,155 | - |
|
Datasheet | AV22 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
TPC21MGRA2SWITCH PUSH DPST-NO 0.4VA 20V |
2,400 | - |
|
Datasheet | TP | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | Circular - 4.83mm Dia | -30°C ~ 65°C |
|

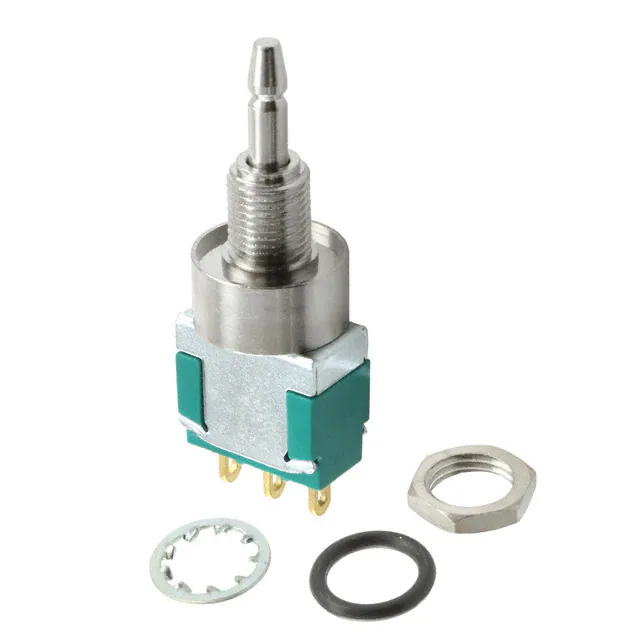

MPE106DSWITCH PUSHBUTTON SPDT 6A 125V |
4,352 | - |
|
Datasheet | MPE | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | Splash Proof | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
|
AV1920D112R04SWITCH PUSHBUTTON DPDT 0.4VA 20V |
4,852 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Spot LED | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920D124R04SWITCH PUSHBUTTON DPDT 0.4VA 20V |
4,875 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Spot LED | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920D712R04SWITCH PUSHBUTTON DPDT 0.4VA 20V |
4,821 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Spot LED | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920D724R04SWITCH PUSHBUTTON DPDT 0.4VA 20V |
4,480 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Spot LED | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920P124R04SWITCH PUSHBUTTON DPDT 0.4VA 20V |
2,938 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | Power Symbol | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920P724R04SWITCH PUSHBUTTON DPDT 0.4VA 20V |
4,251 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
