Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1520146-1SWITCH PUSH DPST-NO 20A 125V |
3,352 | - |
|
Datasheet | - | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 20A (AC) | 125 V | - | Round, Button | No Marking | - | - | - | Screw Terminal | - | - | - | - |
|

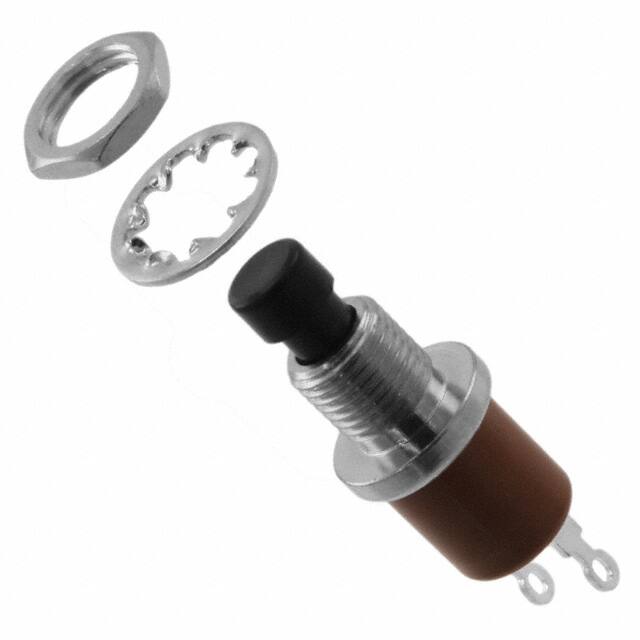

MSPS103BSWITCH PUSH SPST-NC 500MA 125V |
2,142 | - |
|
Datasheet | MSPS | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
1437568-6SWITCH PUSH SPST-NO 500MA 125V |
3,519 | - |
|
Datasheet | MSPS | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
TPA11CGPC0SWITCH PUSH SPST-NO 0.4VA 20V |
2,167 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
TP11CGRA0SWITCH PUSH SPST-NO 0.4VA 20V |
3,280 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
TPA11CGPC2SWITCH PUSH SPST-NO 0.4VA 20V |
4,897 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
TPB11CGRA0SWITCH PUSH SPST-NO 0.4VA 20V |
1,648 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

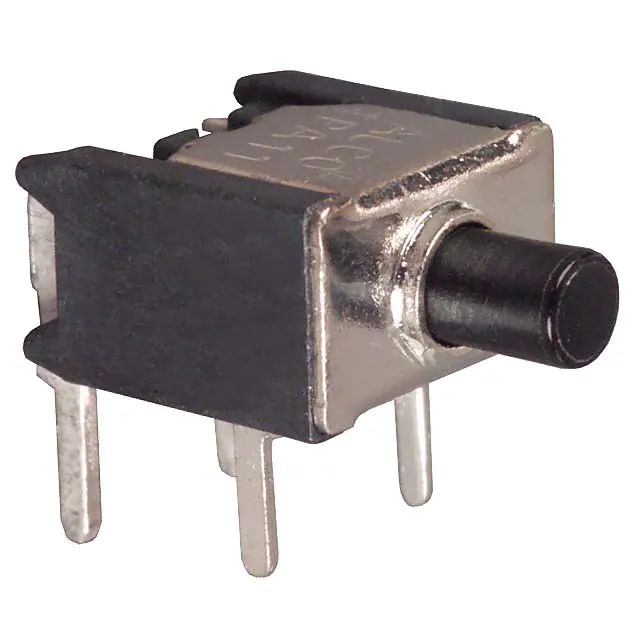

TPA11CGRA0SWITCH PUSH SPST-NO 0.4VA 20V |
4,550 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
TPD11CGPC0SWITCH PUSH SPST-NO 0.4VA 20V |
4,804 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
TPD11CGRA0SWITCH PUSH SPST-NO 0.4VA 20V |
1,371 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
