Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVC19LS04FE03T5A04SWITCH PUSHBUTTON SPST 1A |
1,494 | - |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
AVC22MAIOFE1DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
4,083 | - |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
AVC19LS16FE1DT5A04SWITCH PUSHBUTTON SPST 1A |
4,065 | - |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|

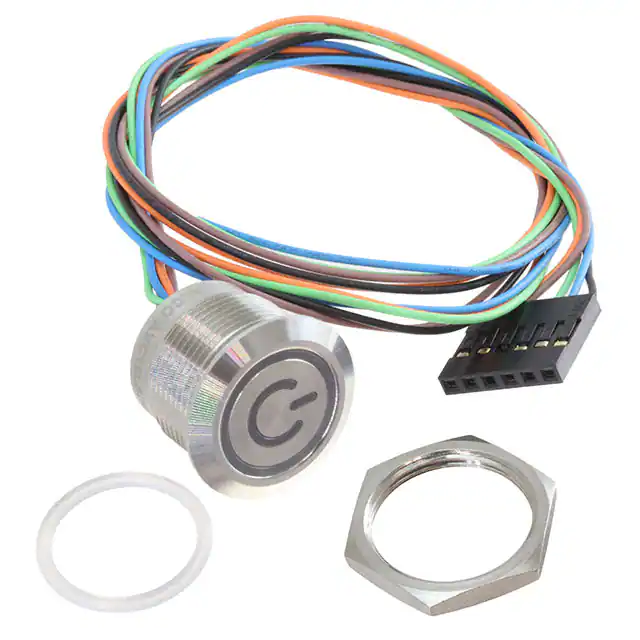

AVC19LS16FE13T5A04SWITCH PUSHBUTTON SPST 1A |
3,268 | - |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
AVP22MAIOC000T5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
2,383 | - |
|
Datasheet | AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
AVP22MAIBC000T5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
2,719 | - |
|
Datasheet | AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
AVC22LAIOFE0DT5A04SWITCH PUSHBUTTON SPST 1A |
3,051 | - |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
AVC22LAIOFE03T5A04SWITCH PUSHBUTTON SPST 1A |
1,501 | - |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
AVC22LAIOFE1DT5A04SWITCH PUSHBUTTON SPST 1A |
1,785 | - |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|

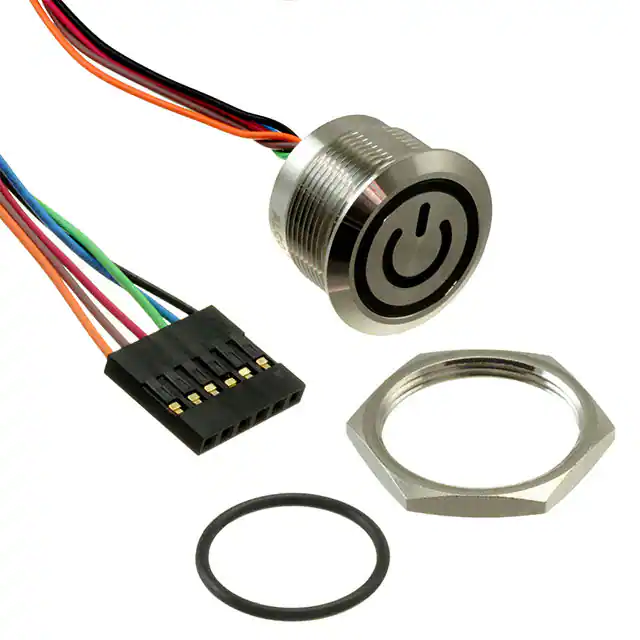

AVC22MS16FE1DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
1,446 | - |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
