Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

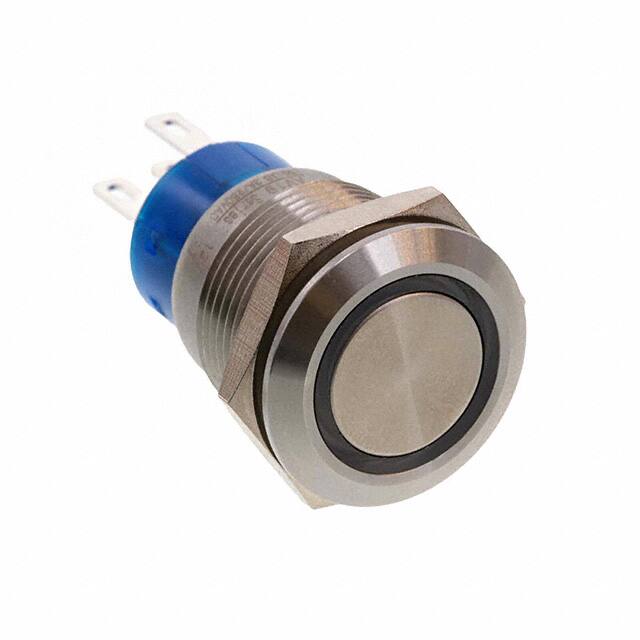

AV1911RB12Q04SWITCH PUSHBUTTON SPDT 3A 250V |
1,935 | - |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1911PB12Q04SWITCH PUSHBUTTON SPDT 3A 250V |
3,539 | - |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1920EA12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
2,589 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AVH19LSFE17121604SWITCH PUSHBUTTON SPDT 16A 125V |
1,658 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH22MSSFO001604SWITCH PUSHBUTTON SPDT 16A 125V |
1,773 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
MPA106DSWITCH PUSHBUTTON SPDT 6A 125V |
4,087 | - |
|
Datasheet | MPA | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
.jpg)
|
AV2510M612Q04SWITCH PUSHBUTTON SPDT 3A 250V |
3,783 | - |
|
Datasheet | AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
AV1911E324Q04SWITCH PUSHBUTTON SPDT 3A 250V |
4,951 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1911E312Q04SWITCH PUSHBUTTON SPDT 3A 250V |
3,653 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1910E524Q04SWITCH PUSHBUTTON SPDT 3A 250V |
4,477 | - |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
