Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPBR3C1222E02N9PUSHBUTTON SWITCH FD DBLE ICON |
2,786 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FPBP3C1222E02N9PUSHBUTTON SWITCH FD DBLE ICON |
1,873 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FPBF3C1222E02N9PUSHBUTTON SWITCH FD DBLE ICON |
4,004 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8446WABPUSHBUTTON SWITCH 8000 |
4,902 | - |
|
Datasheet | 8000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
LPI3124G1XX47XXSWITCH PUSH SPST-NO 0.05A 24V |
2,790 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
13445AD2PUSH SWITCH 13000 HIGH SPEC |
2,913 | - |
|
Datasheet | 1300 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 4A (DC) | - | 30 V | Plunger for Cap | - | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
IQC3V222SWITCH PUSHBUTTON SPST-NO 4A 48V |
1,192 | - |
|
Datasheet | IQ | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 4A (DC) | - | 48 V | Square, Button | No Marking | Black | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 15.90mm Dia | -40°C ~ 85°C |
|

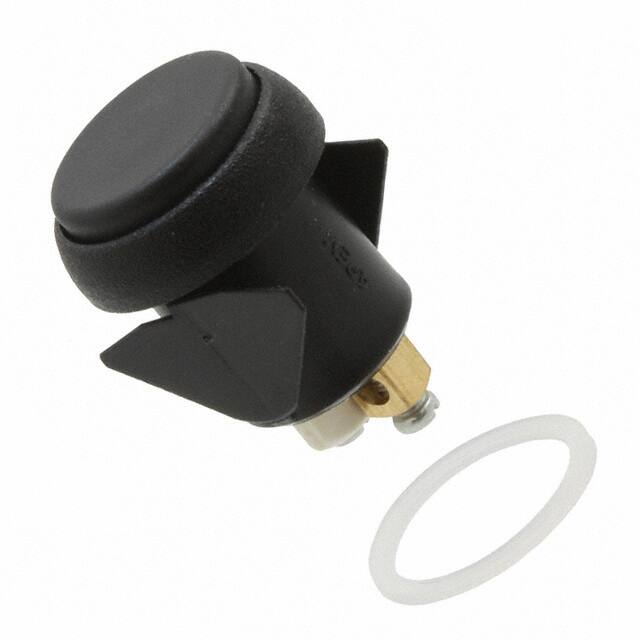

IQP3V222SWITCH PUSHBUTTON SPST-NO 4A 48V |
2,549 | - |
|
Datasheet | IQ | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 4A (DC) | - | 48 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 15.90mm Dia | -40°C ~ 85°C |
|
|
ILR3FAD6L0SPUSHBUTTON SWITCH |
3,936 | - |
|
Datasheet | IL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | - | Red | LED, Red | 2.1 VDC | Wire Leads | IP54 - Dust Protected, Water Resistant | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
13435AGKPUSH SWITCH 13000 HIGH SPEC |
4,154 | - |
|
Datasheet | 1300 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
