Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBAR1AF3002PUSHBUTTON SWITCH PBA PIEZO |
2,465 | - |
|
Datasheet | PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | - | Green | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 75°C |
|
|
IZNP3F42NPUSHBUTTON SWITCH FD DBLE ICON |
2,324 | - |
|
Datasheet | IZ | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button, Domed | - | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.10mm Dia | -40°C ~ 85°C |
|
|
PBAR5AF6000SWITCH PUSH SPST-NO 0.2A 24V |
3,227 | - |
|
Datasheet | PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 16.20mm Dia | -40°C ~ 75°C |
|
|
CG211AP0GCCAPACITIVE SWITCH CG |
2,309 | - |
|
Datasheet | CG | Bulk | Active | Surface Mount | Capacitive | SPST | Off-On | 200mA (DC) | - | 24 V | Round, Button | - | - | LED, Green | 12 VDC | Wire Leads | - | - | Circular - 29.00mm Dia | -40°C ~ 70°C |
|
|
CG111AP0RCCAPACITIVE SWITCH CG |
4,427 | - |
|
Datasheet | CG | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 200mA (DC) | - | 24 V | Round, Button, Flush | - | - | LED, Red | 12 VDC | Connector | - | - | - | -40°C ~ 70°C |
|
|
AV190003A900PUSHBUTTON SWITCH AV SECURITY |
4,554 | - |
|
Datasheet | AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 4A (DC) | - | 48 V | Round, Button, Domed | - | Silver | - | - | Screw Terminal | - | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

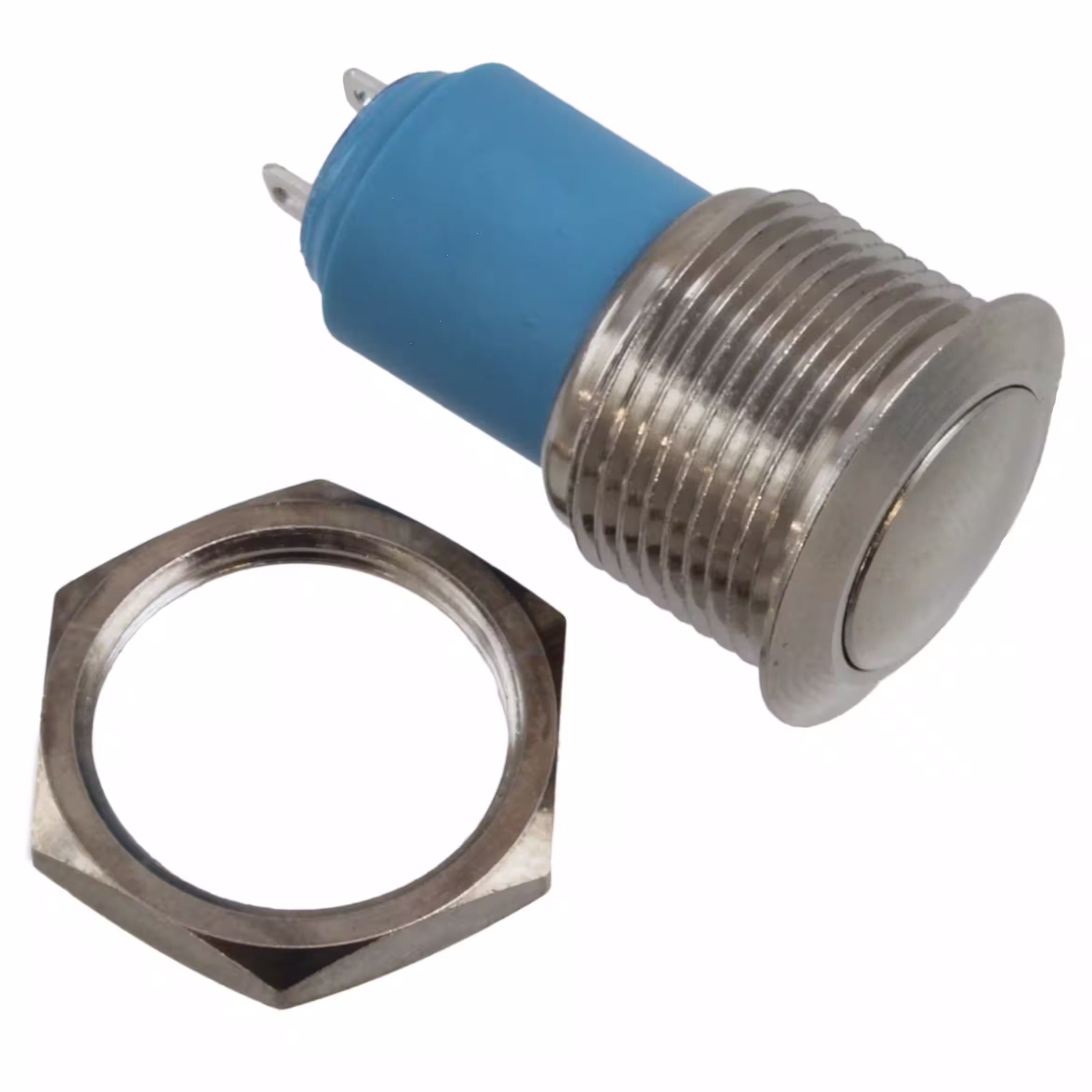

AV1611A200SWITCH PUSHBUTTON SPST 1.5A 250V |
4,554 | - |
|
Datasheet | AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 1.5A (AC), 1A (DC) | 250 V | 24 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 16.20mm Dia | -30°C ~ 70°C |
|
|
IZPR1F422L0SPUSHBUTTON SWITCH FD DBLE ICON |
4,072 | - |
|
Datasheet | IZ | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button, Domed | - | Black | LED, Red | 2.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.10mm Dia | -40°C ~ 85°C |
|
|
IV30BWXX09XXXXXAPUSHBUTTON SWITCH IV |
2,939 | - |
|
Datasheet | IV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | - | Orange | - | - | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.20mm Dia | -20°C ~ 65°C |
|
|
IV30BWXX03XXXXXAPUSHBUTTON SWITCH IV |
2,266 | - |
|
Datasheet | IV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | - | Green | - | - | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.20mm Dia | -20°C ~ 65°C |
