Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

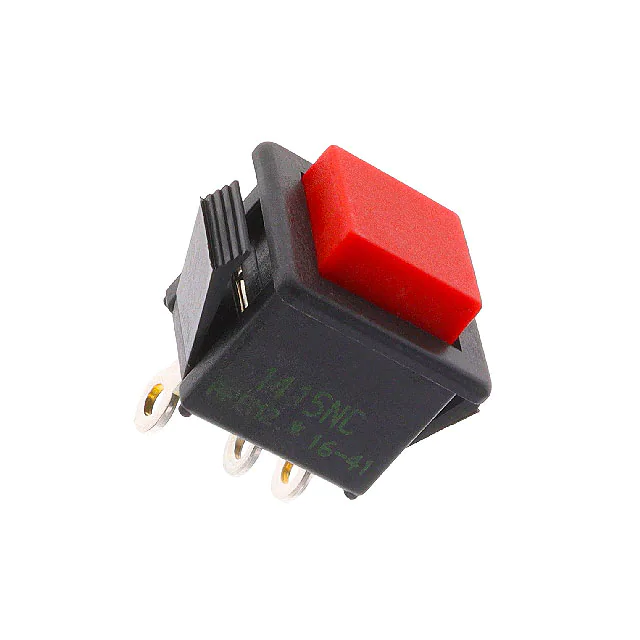

1415NC6SWITCH PUSHBUTTON SPDT 3A 12V |
2,529 | - |
|
Datasheet | 1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
302CBESWITCH PUSH SPST-NO 0.4VA 20V |
1,963 | - |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
1445NC2SWITCH PUSHBUTTON SPDT 3A 12V |
1,483 | - |
|
Datasheet | 1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
1212C6SWITCH PUSH SPST-NC 3A 125V |
1,410 | - |
|
Datasheet | 1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Red | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
1212C7/1SWITCH PUSH SPST-NC 3A 125V |
2,849 | - |
|
Datasheet | 1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | White | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
1213C3SWITCH PUSH SPST-NO 3A 125V |
1,133 | - |
|
Datasheet | 1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Green | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
4731A02UUSWITCH PUSHBUTTON SPST 6A 125V |
1,220 | - |
|
Datasheet | 4700 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|

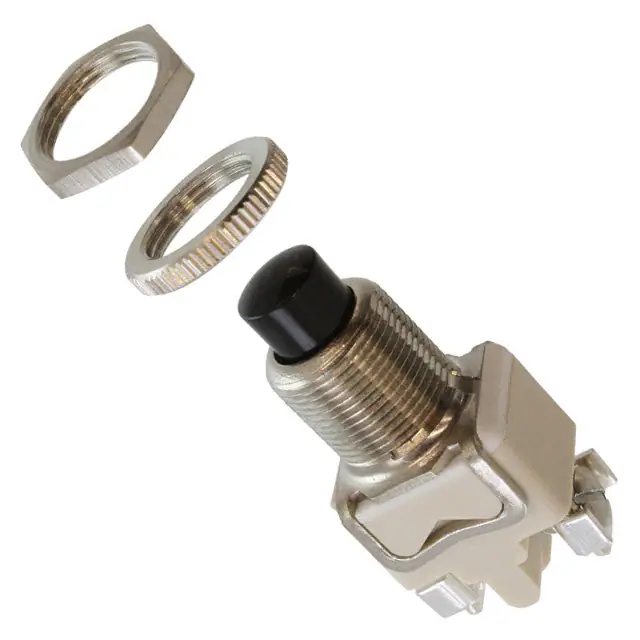

1202A2SWITCH PUSH SPST-NC 8A 125V |
3,520 | - |
|
Datasheet | 1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Screw Terminal | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
18535CDSWITCH PUSH SPDT 0.1A 30V |
2,298 | - |
|
Datasheet | 18000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
4736A02UUSWITCH PUSHBUTTON SPDT 6A 125V |
1,469 | - |
|
Datasheet | 4700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
