Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

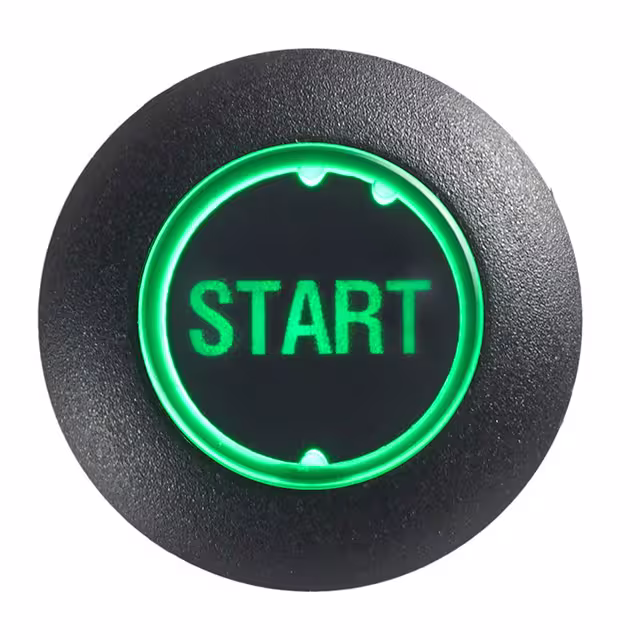

FDAP1F1482F04SWITCH PUSHBUTTON SPST 200MA 12V |
2,695 | - |
|
Datasheet | FD | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 200mA (DC) | - | 12 V | Round, Button | ON/OFF | Black | LED, Green/Red | - | Solder Lug | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 24.20mm Dia | -40°C ~ 75°C |
|
TP33P008500SWITCH PUSH SPST-NO 0.4VA 20V |
100 | - |
|
Datasheet | TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
ZP33S010100SWITCH PUSH SPST-NO 0.5A 48V |
3,201 | - |
|
Datasheet | ZP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Voltage Reduction Lighting | Circular - 4.90mm Dia | -30°C ~ 85°C |
|
|
ZP32S010100SWITCH PUSH SPDT 0.5A 48V |
1,477 | - |
|
Datasheet | ZP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 500mA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Voltage Reduction Lighting | Circular - 4.90mm Dia | -30°C ~ 85°C |
|
|
1232C2SWITCH PUSH SPST-NC 3A 125V |
3,680 | - |
|
Datasheet | 1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
|
TP33W003000SWITCH PUSH SPST-NO 0.4VA 20V |
3,991 | - |
|
Datasheet | TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
TP33W003050SWITCH PUSH SPST-NO 0.4VA 20V |
4,451 | - |
|
Datasheet | TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
1233C6SWITCH PUSH SPST-NO 3A 125V |
4,717 | - |
|
Datasheet | 1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
9432ABSWITCH PUSH SPST-NC 1A 30V |
3,798 | - |
|
Datasheet | 9000 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
9635ABSWITCH PUSHBUTTON SPDT 1A 30V |
4,935 | - |
|
Datasheet | 9000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
