Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8636AB6X718SWITCH PUSHBUTTON SPDT 6A 125V |
2,508 | - |
|
Datasheet | 8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
8646AKSWITCH PUSHBUTTON DPDT 6A 125V |
3,214 | - |
|
Datasheet | 8000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | Environment Sealed | Front Panel Sealing | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
ILP3PAD2L0BSWITCH PUSHBUTTON SPST-NO 2A 24V |
3,546 | - |
|
Datasheet | IL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button | No Marking | Black | LED, Blue | 3.2 VDC | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
8632AB6X718SWITCH PUSHBUTTON SPDT 6A 125V |
2,908 | - |
|
Datasheet | 8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -40°C ~ 85°C |
|

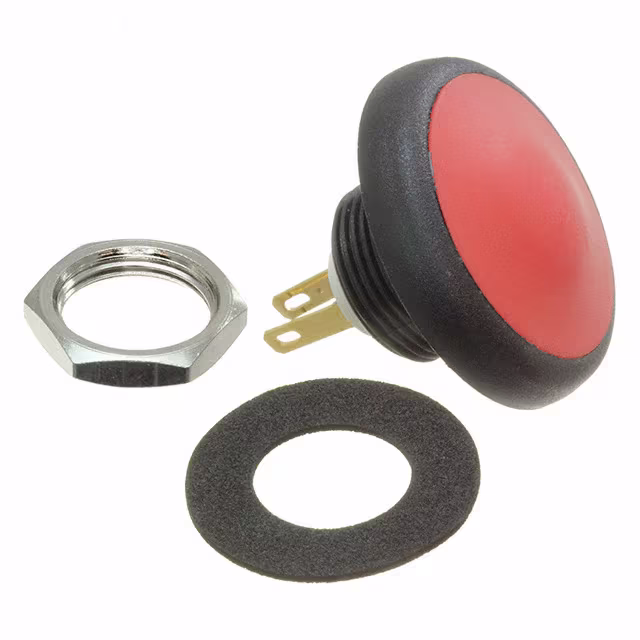

IFS3Z1AD600SWITCH PUSH SPST-NO 0.4A 32V |
2,211 | - |
|
Datasheet | IF | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 16.00mm Dia | -20°C ~ 85°C |
|
ICP3PAD2100SWITCH PUSH SPST-NO 5A 48V |
1,213 | - |
|
Datasheet | IC | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 48 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
ICP3SAD2100SWITCH PUSH SPST-NO 5A 48V |
1,092 | - |
|
Datasheet | IC | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 48 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
ICP3SAD2101SWITCH PUSH SPST-NO 5A 48V |
4,824 | - |
|
Datasheet | IC | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 48 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
8432WABPUSHBUTTON SWITCH 8000 |
2,807 | - |
|
Datasheet | 8000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
ISR3SADA20PUSHBUTTON SWITCH FD DBLE ICON |
2,227 | - |
|
Datasheet | IS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 48 V | Round, Button | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
