Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3J-1100SWITCH PUSH SPST-NO 0.05A 24V |
874 | - |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-1000SWITCH PUSH SPST-NO 0.05A 24V |
477 | - |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|

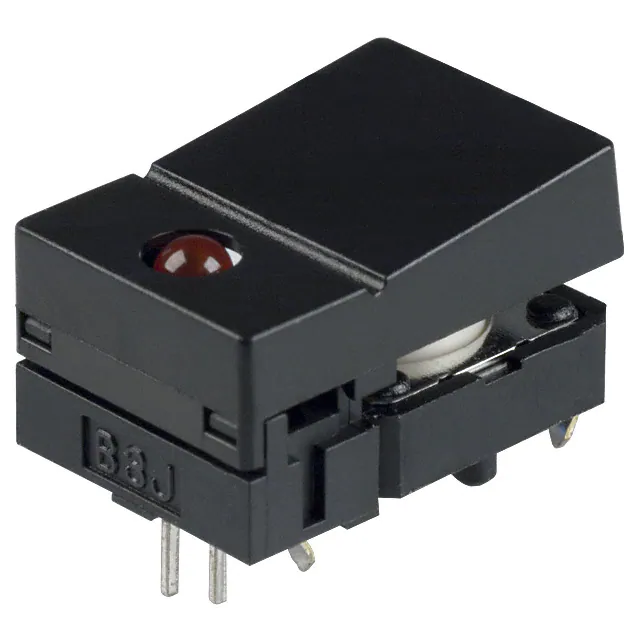

B3J-2100SWITCH PUSH SPST-NO 0.05A 24V |
291 | - |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|

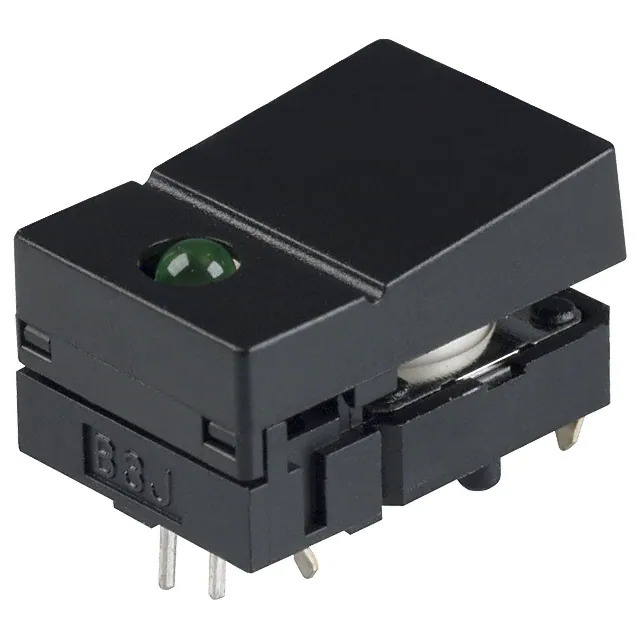

B3J-4100SWITCH PUSH SPST-NO 0.05A 24V |
163 | - |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|

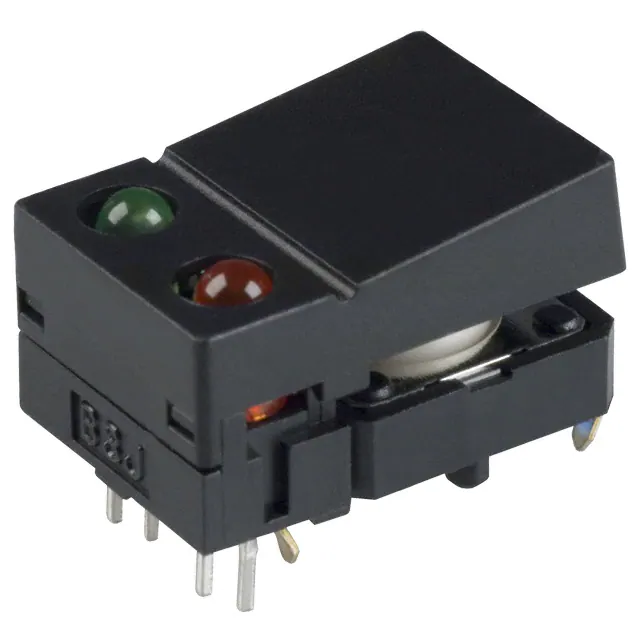

B3J-6100SWITCH PUSH SPST-NO 0.05A 24V |
995 | - |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green/Red | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|

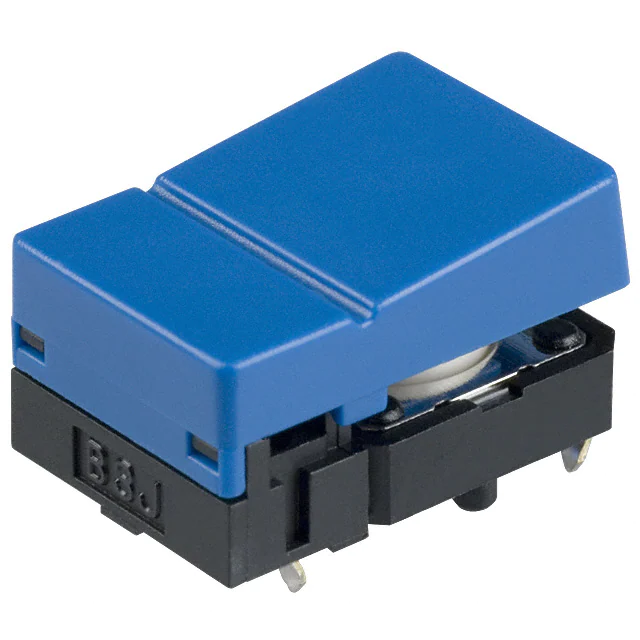

B3J-1400SWITCH PUSH SPST-NO 0.05A 24V |
285 | - |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|

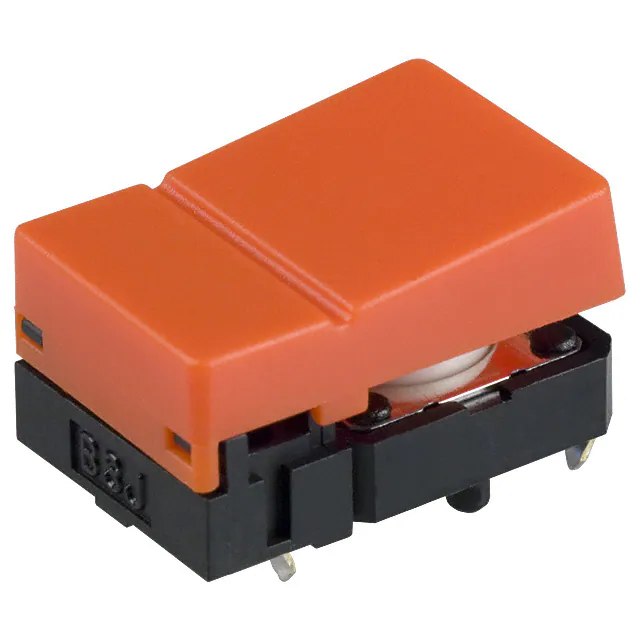

B3J-1200SWITCH PUSH SPST-NO 0.05A 24V |
168 | - |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
C4V-821ASWITCH PUSHBUTTON DPST 8A 125V |
286 |
1+：$4.52000 10+：$3.90160 25+：$3.67904 50+：$3.51904 100+：$3.36592 300+：$3.13610 500+：$3.03448 1000+：$2.90162 |
|
Datasheet | C4V | Tray | Active | Panel Mount, Side | Standard | DPST | Off-On | 8A (AC) | 125 V | - | Square, Plunger | No Marking | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -10°C ~ 55°C |
|
B3J-4000SWITCH PUSH SPST-NO 0.05A 24V |
126 |
1+：$4.01600 10+：$3.46800 25+：$3.27072 50+：$3.12864 100+：$2.99240 300+：$2.78822 600+：$2.66634 1200+：$2.54958 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
B3J-2200SWITCH PUSH SPST-NO 0.05A 24V |
301 | - |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
