Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D6C90 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
48,560 | - |
|
Datasheet | D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
D6R90 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
16,028 |
1+：$1.45600 10+：$1.25840 25+：$1.18720 50+：$1.13568 100+：$1.08632 250+：$1.02438 500+：$0.97976 1000+：$0.93704 |
|
Datasheet | D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
|
D6R90 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
23,905 |
1+：$1.43200 10+：$1.23440 25+：$1.16416 50+：$1.11376 100+：$1.06536 250+：$1.00458 500+：$0.96082 1000+：$0.91891 |
|
Datasheet | D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
PN11SHNA03QESWITCH PUSH SPDT 0.2A 30V |
2,455 |
1+：$1.51200 10+：$1.30720 25+：$1.23296 50+：$1.17952 100+：$1.12840 250+：$1.06400 910+：$0.97919 1820+：$0.93640 |
|
Datasheet | PN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|

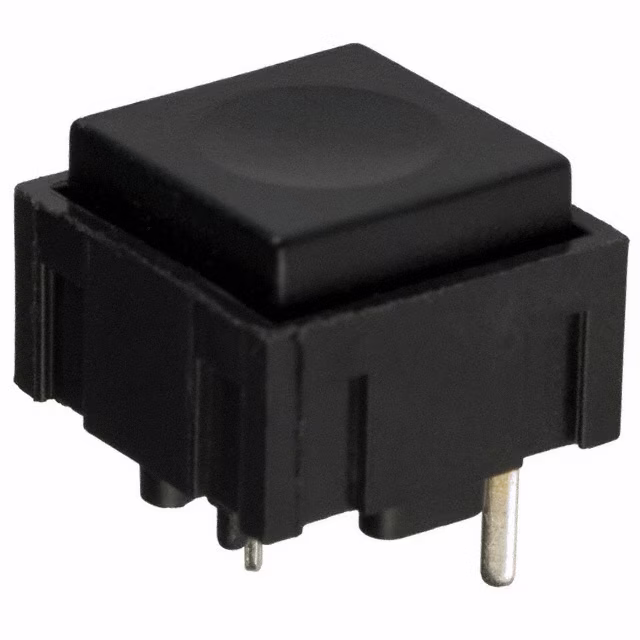

KS11R22CQDSWITCH PUSH SPST-NO 0.025A 50V |
33,521 | - |
|
Datasheet | KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
PVA1 OA H1 1.2N V2SWITCH PUSH DPST-NO 0.1A 32V |
2,480 | - |
|
Datasheet | PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA1 OA H4 1.2N V2SWITCH PUSH DPST-NO 0.1A 32V |
1,396 | - |
|
Datasheet | PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA1 OA H2 1.2N V2SWITCH PUSH DPST-NO 0.1A 32V |
1,759 | - |
|
Datasheet | PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA2 EE H1 1.7N V2SWITCH PUSH DPDT 0.1A 32V |
1,197 | - |
|
Datasheet | PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|

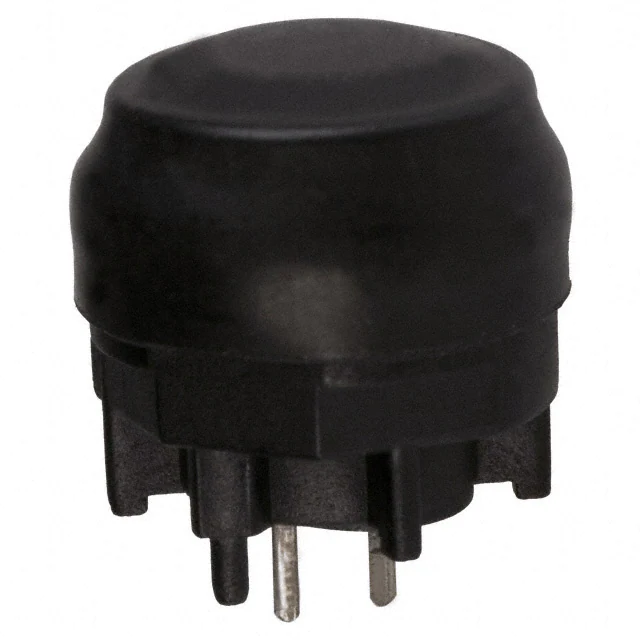

K12C 1 5NSWITCH PUSH SPST-NO 0.1A 30V |
3,304 | - |
|
Datasheet | K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Rubber Cap | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Tactile Feedback | - | -40°C ~ 85°C |
