Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESB-30B333SWITCH PUSH DPDT 0.2A 14V |
1,186 | - |
|
Datasheet | ESB30 | Tray | Active | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | - |
|
|
ESB-30B133SWITCH PUSH DPDT 0.2A 14V |
4,171 | - |
|
Datasheet | ESB30 | Tray | Active | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | - |
|
|
ESB-30B305SWITCH PUSH DPDT 0.2A 14V |
4,298 | - |
|
Datasheet | ESB30 | Tray | Active | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | - |
|
|
ESB-30B304SWITCH PUSH |
3,976 | - |
|
Datasheet | ESB30 | Tape & Reel (TR) | Active | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | - | Gray | - | - | PC Pin | - | - | - | - |
|
|
ESB-33533SWITCH PUSH |
2,672 | - |
|
Datasheet | ESB33 | Tape & Reel (TR) | Active | Surface Mount | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | - | White | - | - | Gull Wing | - | - | - | - |
|
|
ESB-33533ASWITCH PUSH |
1,121 | - |
|
Datasheet | ESB33 | Tape & Reel (TR) | Active | Surface Mount | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | - | White | - | - | Gull Wing | - | - | - | - |
|
ESB-92S21BSWITCH PUSHBUTTON SPST 5A 250V |
2,516 | - |
|
Datasheet | ESB92S | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST | Off-On | 5A (AC) | 250 V | - | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | - |
|

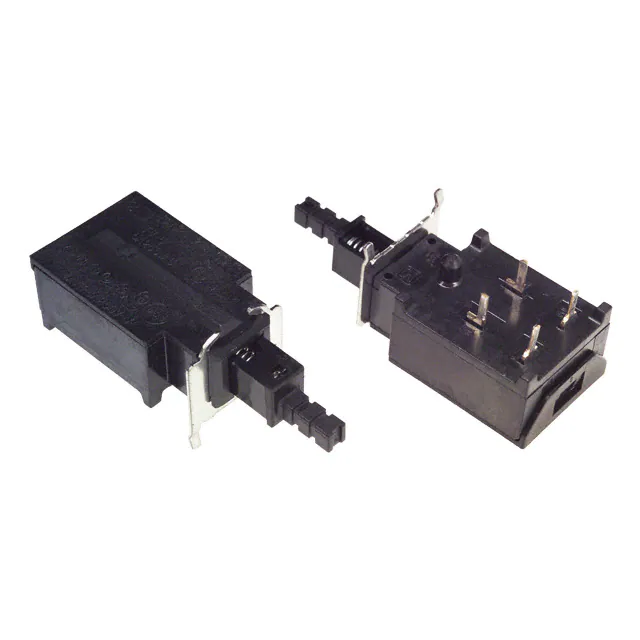

ESB-92D21BSWITCH PUSHBUTTON DPST 5A 250V |
1,669 | - |
|
Datasheet | ESB92D | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPST | Off-On | 5A (AC) | 250 V | - | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | - |
|
ESB-32101NSWITCH PUSHBUTTON DPST 3A 12V |
3,796 | - |
|
Datasheet | ESB32 | Bulk | Obsolete | Through Hole | Standard | DPST | Off-On | 3A (DC) | - | 12 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | - |
|

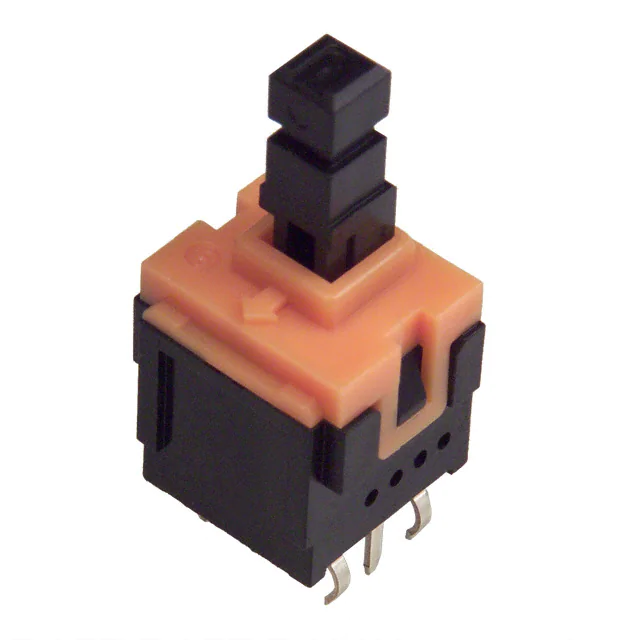

ESB-30A105SWITCH PUSH DPDT 0.2A 14V |
3,516 | - |
|
Datasheet | ESB30 | Bulk | Obsolete | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | - |
