Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EHPBSMRPKGEH MOM PSHBTN SW/SPD |
4,887 | - |
|
Datasheet | EH | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | - | - | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
101SWITCH PUSH SPST-NO 0.25A 28V |
4,815 | - |
|
Datasheet | 100 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 250mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
|
EHPBSMRBPKGEH MOM PSHBTN SW/SPD |
3,148 | - |
|
Datasheet | EH | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | - | - | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
103SWITCH PUSH SPDT 0.25A 28V |
1,239 | - |
|
Datasheet | 100 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 250mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
|
963XSWITCH PUSH SPDT 0.25A 120V |
3,395 | - |
|
Datasheet | 960 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 250mA (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
|
67021K506SWITCH PUSHBUTTON DPDT 3A 125V |
3,672 | - |
|
Datasheet | 67000 | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | DPDT | - | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 31.76mm x 15.88mm | - |
|

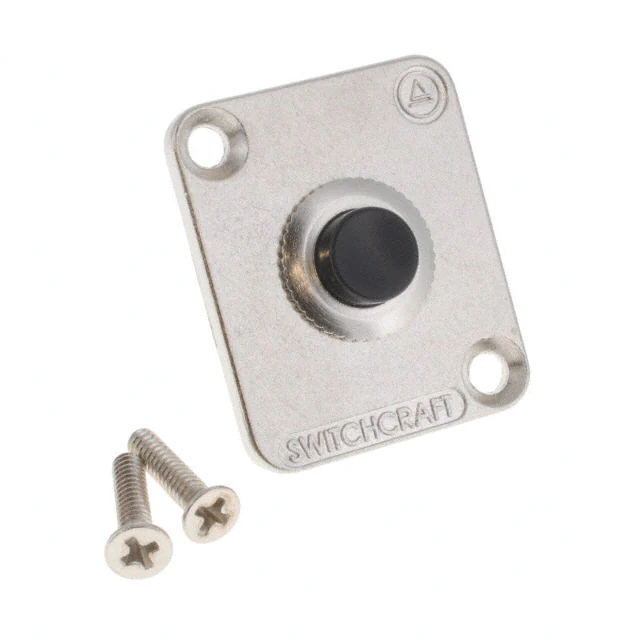

EHPBSMBPKGEH MOM PSHBTN SW/SPD |
2,366 | - |
|
Datasheet | EH | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | - | - | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|

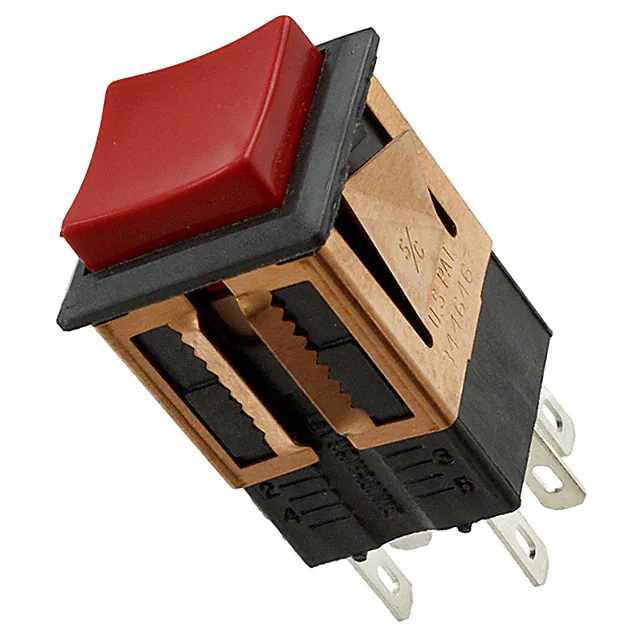

BXR016SWITCH PUSH DPDT 0.25A 115V |
1,012 | - |
|
Datasheet | BXR | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Square, Button | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Square - 15.75mm x 15.75mm | - |
|
|
953XSWITCH PUSH SPDT 0.25A 120V |
3,517 | - |
|
Datasheet | 950 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 250mA (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
921SWITCH PUSH SPST-NO 0.5A 30V |
4,526 | - |
|
Datasheet | 921 | Bulk | Obsolete | Free Hanging | Standard | SPST-NO | - | 500mA (DC) | - | 30 V | Round, Button | No Marking | - | - | - | - | - | - | - | - |
