Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C936KRSWITCH PUSH SPST-NO 0.5A 250V |
1,249 | - |
|
Datasheet | 0936 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC), 250mA (DC) | 250 V | 250 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
MP0042/2SWITCH PUSH SPST-NO 2A 48V |
129 | - |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

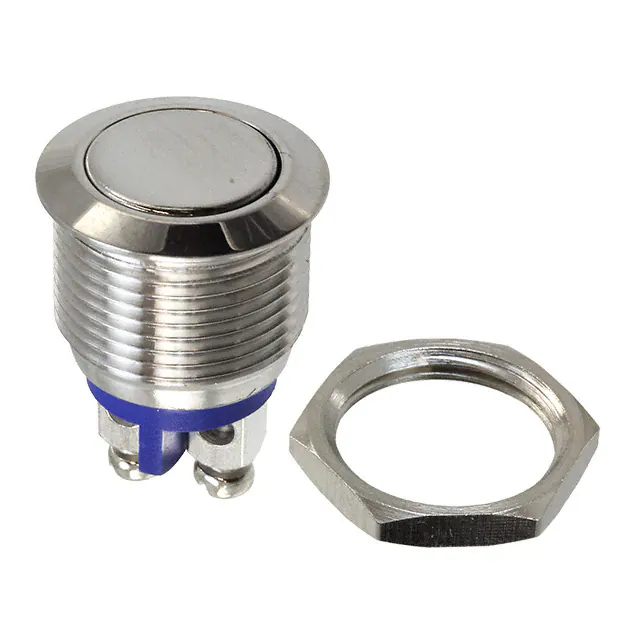

MP0042/1SWITCH PUSH SPST-NO 2A 48V |
124 | - |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
MP0037/2SWITCH PUSH SPST-NO 1A 50V |
173 | - |
|
Datasheet | - | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 50 V | 50 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 70°C |
|
MAV0120/3D2RD012SWITCH PUSHBUTTON SPST-NO 2A 36V |
221 | - |
|
Datasheet | MAV0120 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

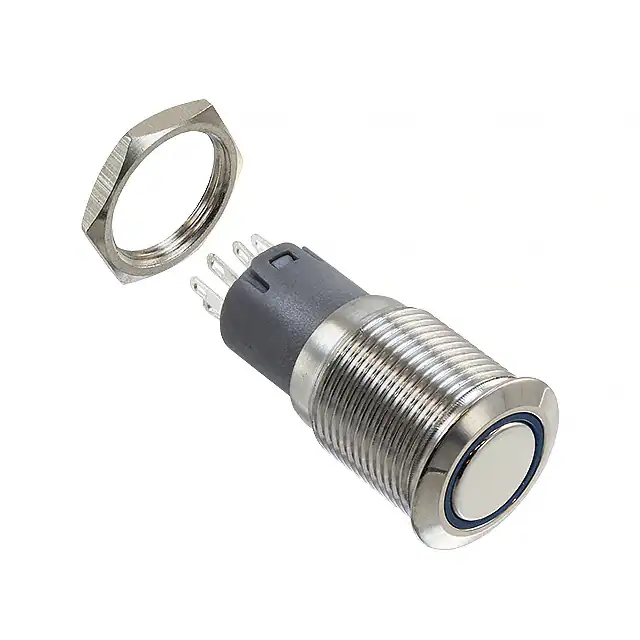

MP0045/1D2BL012SWITCH PUSHBUTTON DPDT 3A 250V |
108 |
1+：$35.18400 10+：$30.35440 25+：$28.61536 50+：$27.36352 100+：$26.16416 250+：$24.65558 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
MP0045/1D2GN012SWITCH PUSHBUTTON DPDT 3A 250V |
112 | - |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

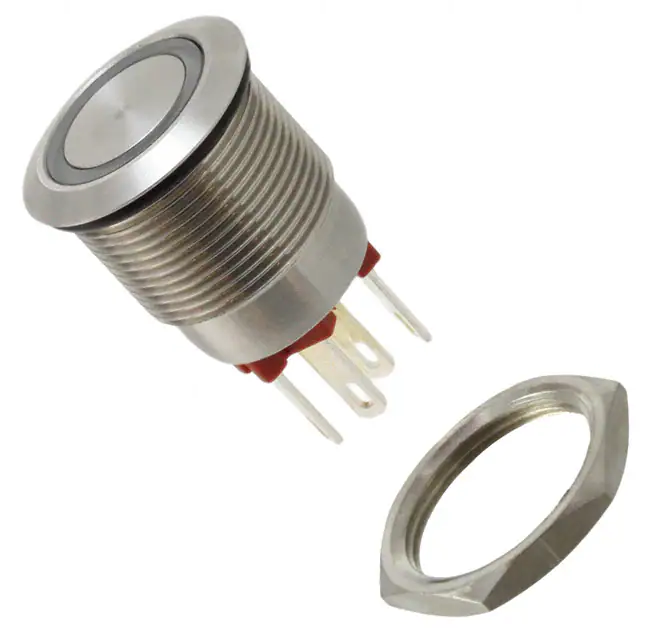

MPI002/28/RDSWITCH PUSH SPST-NO 0.05A 24V |
280 |
1+：$42.50400 10+：$36.66720 25+：$34.56512 50+：$33.05216 100+：$31.60256 250+：$29.77891 |
|
Datasheet | - | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.85 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
MPI002/28/RD/12SWITCH PUSH SPST-NO 0.05A 24V |
216 | - |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

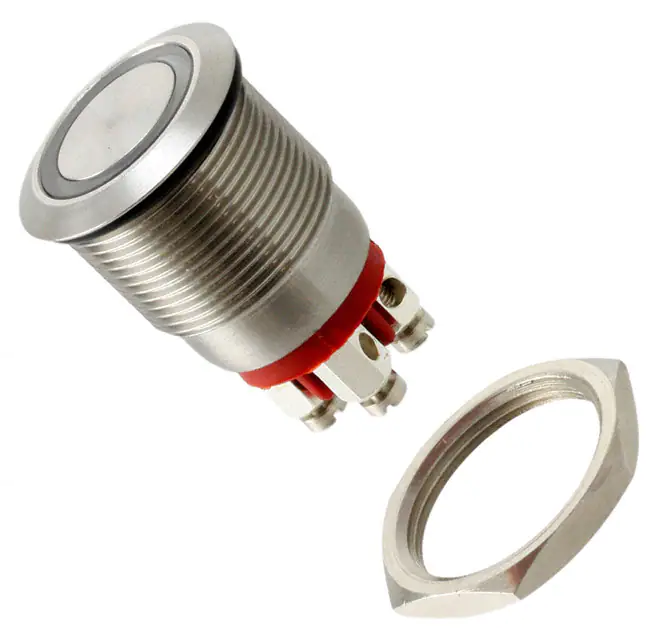

MPI002/TERM/RDSWITCH PUSH SPST-NO 0.05A 24V |
119 | - |
|
Datasheet | - | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.85 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
