Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3852510KBSPDT PUSHBUTTON SPDT 16A 250V |
2,839 | - |
|
Datasheet | 380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
|
3852510KBLSPDT PUSHBUTTON SPDT 16A 250V |
4,366 | - |
|
Datasheet | 380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Blue | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Circular - 12.70mm Dia | - |
|

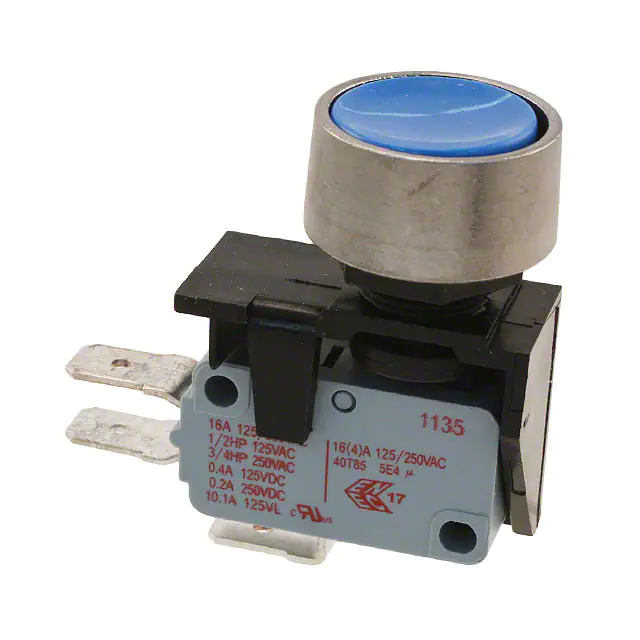

3832510KBLSWITCH PUSHBUTTON SPDT 16A 250V |
1,969 | - |
|
Datasheet | 380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Blue | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
3832510KWSWITCH PUSHBUTTON SPDT 16A 250V |
3,177 | - |
|
Datasheet | 380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | White | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
|
C7003AFBR3SPST PUSHBUTTON SWITCH |
2,622 | - |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 16A (AC) | 250 V | - | Round, Button | No Marking | Red | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
|
C7003AFBG7SPST PUSHBUTTON SWITCH |
3,616 | - |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 16A (AC) | 250 V | - | Round, Button | No Marking | Green | Incandescent, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
|
C7003SABR7SPST PUSHBUTTON SWITCH |
2,191 | - |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 16A (AC) | 250 V | - | Rectangular, Button | No Marking | Red | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP40 | - | Rectangular - 27.30mm x 22.40mm | - |
|
|
SM0446/2/INS/RDSWITCH PUSHBUTTON DPDT 2A 250V |
1,443 | - |
|
Datasheet | - | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 2A (AC) | 250 V | - | Round, Button, Mushroom | No Marking | Red | - | - | Solder Lug | - | Push-Pull | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
C936DIBPUSH BUTTON SWICH |
3,545 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C936DIRPUSH BUTTON SWICH |
4,338 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
