Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16-3PON-CBL-2SWITCH PUSH BUTTON |
4,000 | - |
|
Datasheet | 16-3P | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
P267F-1D-RND MTL/12SWITCH PUSH BUTTON |
3,332 | - |
|
Datasheet | P26 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | - | - | - | - | Wire Leads | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
16-3POFF-CRD-2SWITCH PUSH BUTTON |
0 |
100+：$10.19096 |
|
Datasheet | 16-3P | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
16-3POFF-CBL-2SWITCH PUSH BUTTON |
1,572 | - |
|
Datasheet | 16-3P | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|

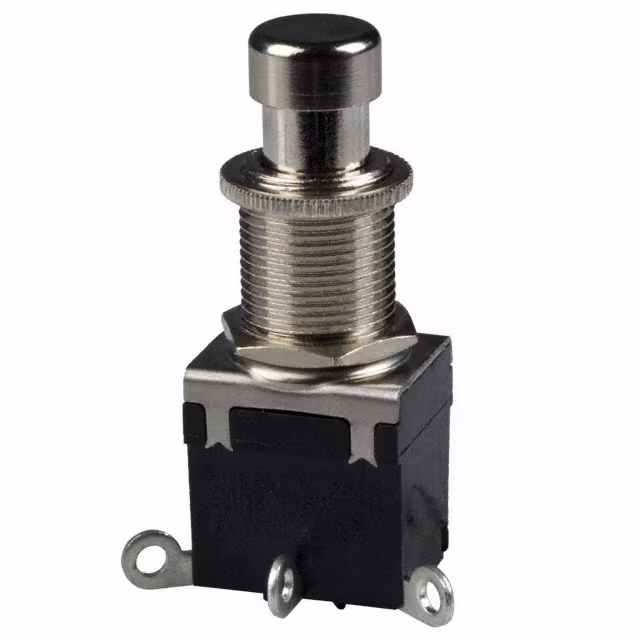

64111220SWITCH PUSHBUTTON SPDT 5A 125V |
4,008 | - |
|
Datasheet | 641 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | - |
|
|
111-16-PSWITCH PUSH BUTTON |
4,073 | - |
|
Datasheet | 110-316P | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 6A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Wire Leads | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
110-SP/HDW ASSMSWITCH PUSH BUTTON |
0 |
100+：$10.23640 |
|
Datasheet | 110-316P | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 6A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Screw Terminal | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
170/POLYSWITCH PUSH BUTTON |
2,815 | - |
|
Datasheet | 170 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Screw Terminal | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
170-B-CBL/2HEXSWITCH PUSH BUTTON |
1,843 | - |
|
Datasheet | 170 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
172-B-CRDSWITCH PUSH BUTTON |
4,031 | - |
|
Datasheet | 172 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
