Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CH2LBRRNSSWITCH PB DPDT 1A 125VAC |
3,695 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Red | LED, Red | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2LBUBNSSWITCH PB DPDT 1A 125VAC |
3,146 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2LBUB24SSWITCH PB DPDT 1A 125VAC |
3,647 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2LBUB6SSWITCH PB DPDT 1A 125VAC |
3,794 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2LBGG24SSWITCH PB DPDT 1A 125VAC |
3,033 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Green | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2LBUB110SSWITCH PB DPDT 1A 125VAC |
2,783 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 110 VAC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2LBGG110SSWITCH PB DPDT 1A 125VAC |
3,815 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Green | LED, Green | 110 VAC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
AH1NCSGNSWITCH PB DPST-NO/NC 1A 125V |
3,737 | - |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|

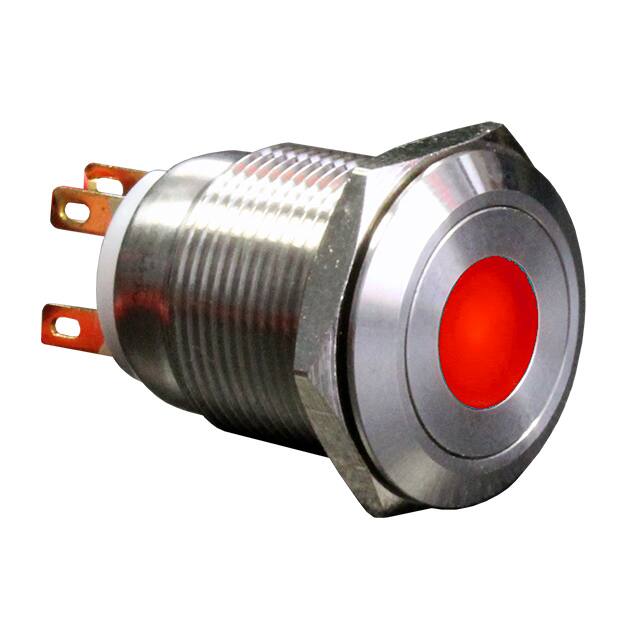

AH1NCSRNSWITCH PB DPST-NO/NC 1A 125V |
4,575 | - |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NCBRNSWITCH PB DPST-NO/NC 1A 125V |
2,662 | - |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
