Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FHNBBBRGNSWITCH PB SPST 2A 48V |
1,179 | - |
|
Datasheet | FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | 2.1, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
EH12NLB2BRGSWITCH PB SPST-NO 2A 48V |
2,683 | - |
|
Datasheet | EH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Black | LED, Green/Red | 2.1, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
CH1LASSSWITCH PB SPDT 1A 125V |
1,792 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH2NABSSWITCH PB DPDT 1A 125V |
1,690 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1NGSGNSSWITCH PB SPDT 1A 125V |
1,986 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1NBSGNSSWITCH PB SPDT 1A 125V |
2,597 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
DH251NBSR24SWITCH PB DPST-NO/NC 2A 125V |
4,285 | - |
|
Datasheet | DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
|
CH1LBBRNSSWITCH PB SPDT 1A 125V |
3,810 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1LGSGNSSWITCH PB SPDT 1A 125V |
4,996 | - |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

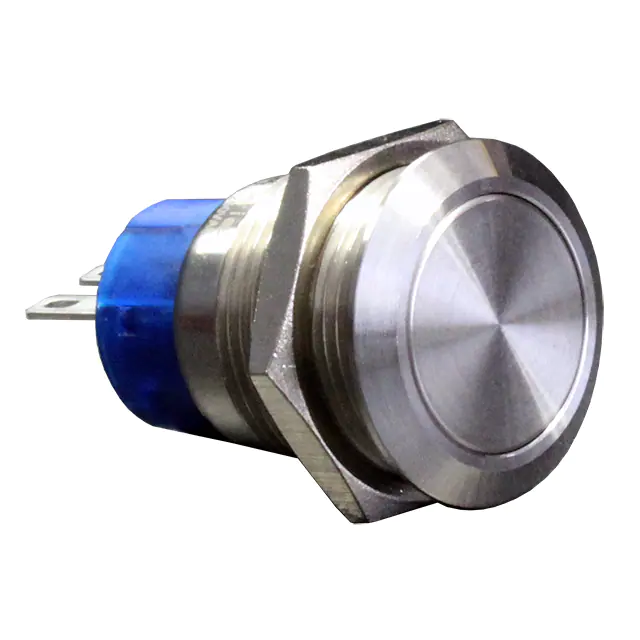

AHU1NASZZSWITCH PB SPDT 3A 125V |
4,588 | - |
|
Datasheet | AHU | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -20°C ~ 65°C |
