Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

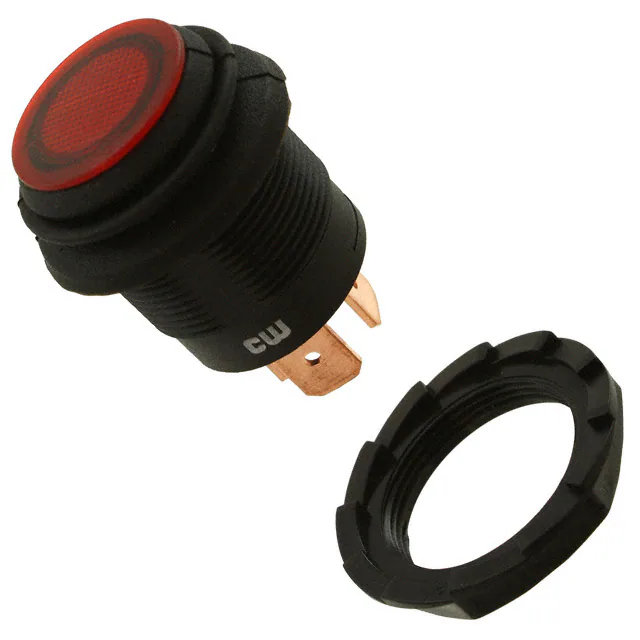

GPB553A2L01BRSWITCH PUSH SPST-NO 10A 14V |
560 | - |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|

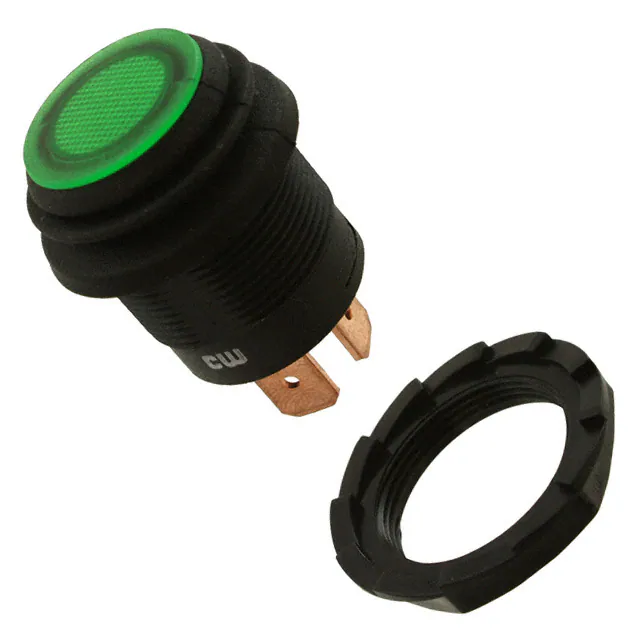

GPB553A2L01BGSWITCH PUSH SPST-NO 10A 14V |
211 |
1+：$8.68000 10+：$7.48960 25+：$7.06240 50+：$6.75488 100+：$6.46024 250+：$6.08960 500+：$5.82285 1000+：$5.56726 |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Green | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
GPB553B2L01BGSWITCH PUSHBUTTON SPST 10A 14V |
796 | - |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 10A (DC) | - | 14 V | Round, Button | No Marking | Green | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
GPB556A05BRSWITCH PB SPST-NO 0.125A 125V |
1,236 |
1+：$7.19200 10+：$6.20960 25+：$5.85504 50+：$5.60032 100+：$5.35616 250+：$5.04906 500+：$4.82800 1000+：$4.61626 |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 85°C |
|

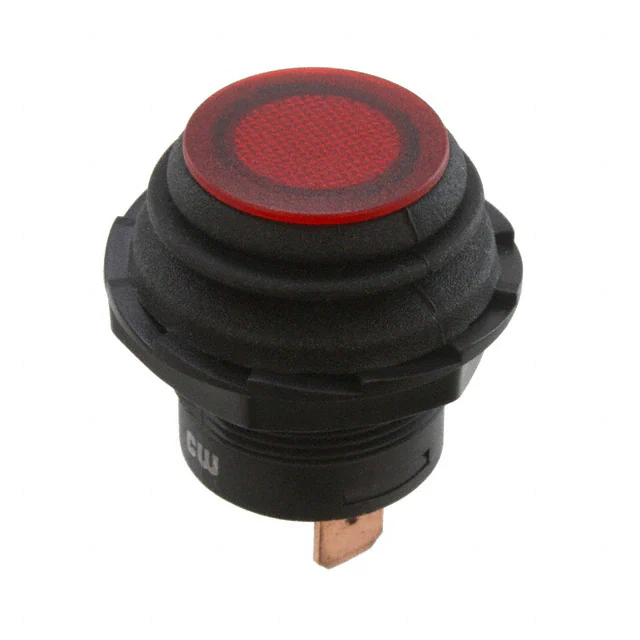

GPB553A201BRSWITCH PUSH SPST-NO 10A 14V |
143 | - |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|

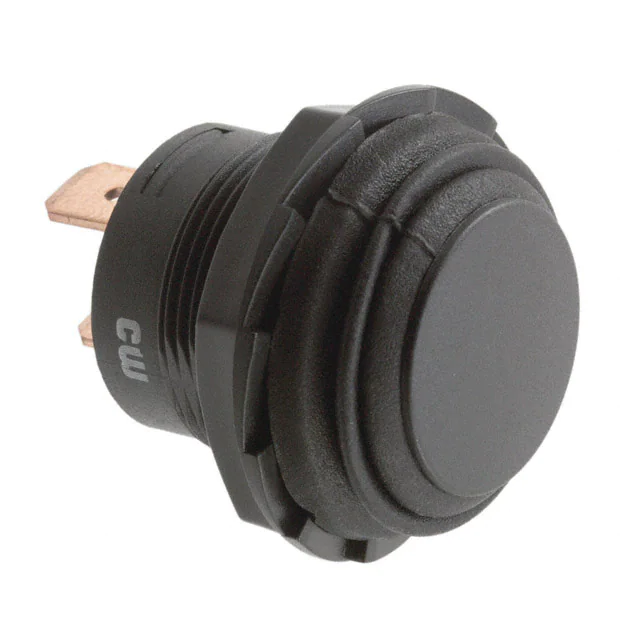

GPB553B201BBSWITCH PUSHBUTTON SPST 10A 14V |
1,185 | - |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 10A (DC) | - | 14 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|

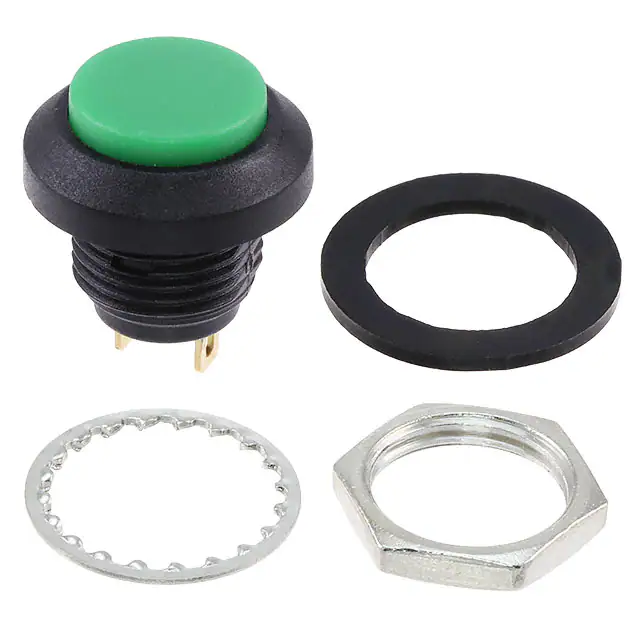

GPB556A05BGSWITCH PUSH SPST-NO 125MA 125V |
319 | - |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 85°C |
|

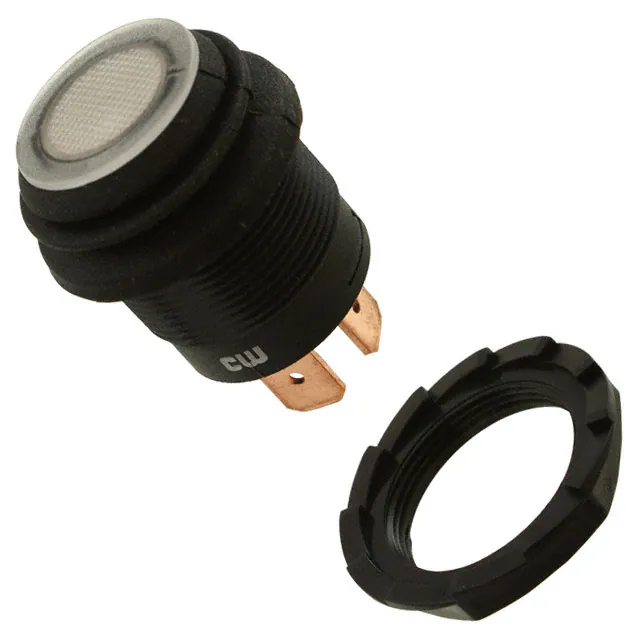

GPB553A2L01BWSWITCH PUSH SPST-NO 10A 14V |
283 | - |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | White | LED, White | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
GPBS-800LSWITCH PUSHBUTTON DPDT 0.1A 30V |
1,899 | - |
|
Datasheet | GPBS | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

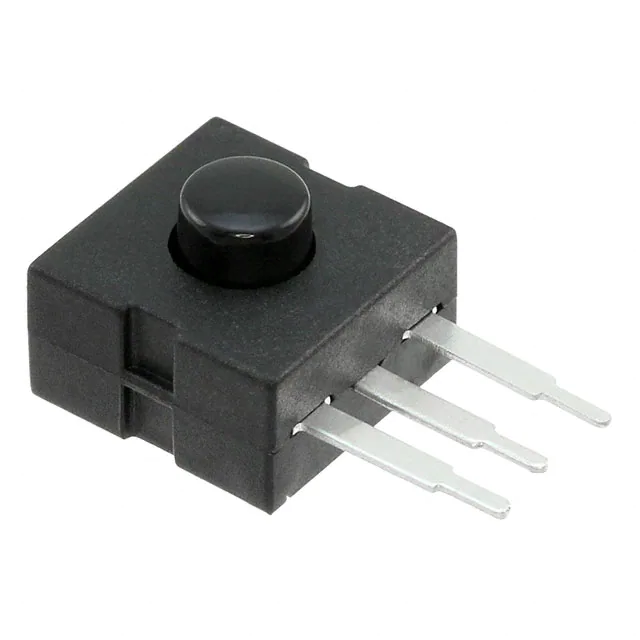

GPTS202312BSWITCH PUSHBUTTON SPDT 1A 30V |
2,970 | - |
|
Datasheet | GPTS | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Off-On | 1A (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
