Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6611SWITCH PUSH SPST 10A 125V |
568 | - |
|
Datasheet | 6611 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 10A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Wire Leads | - | - | - | - |
|
6612SWITCH PUSH SPST 10A 125V |
1,427 | - |
|
Datasheet | 6612 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
7084CSWITCH PUSH SPST-NC 15A 125V |
3,767 | - |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

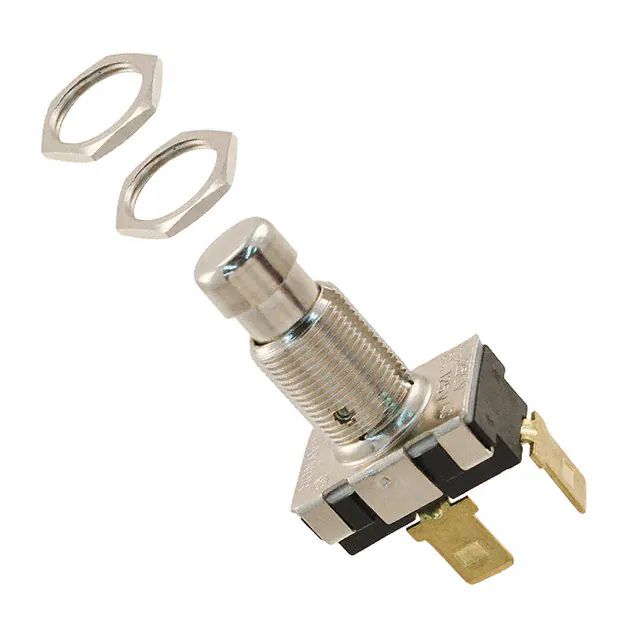

7004CSWITCH PUSH SPST 15A 125V |
2,713 | - |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
7004ASWITCH PUSH SPST 15A 125V |
1,422 | - |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | - |
|
7103DSWITCH PUSHBUTTON SPDT 6A 125V |
2,716 | - |
|
Datasheet | 7100 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | - | - |
|
7074CSWITCH PUSH SPST-NO 15A 125V |
1,554 | - |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

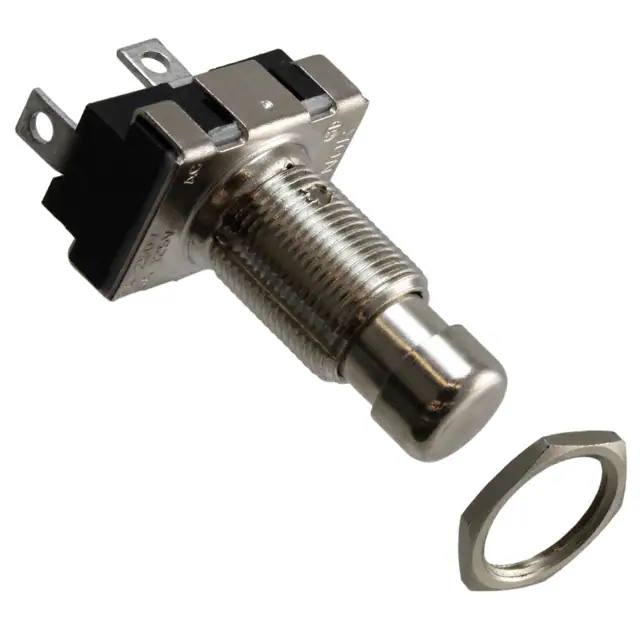

7104DSWITCH PUSHBUTTON SPST 6A 125V |
3,806 | - |
|
Datasheet | 7100 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 6A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | - | - |
|
PB-12331ZQSWITCH PUSHBUTTON SPDT 6A 125V |
4,626 | - |
|
Datasheet | PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | - |
|
|
SA1RV20SWITCH PUSH SPST-NO 0.75A 125V |
1,199 | - |
|
Datasheet | SA | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 750mA (AC), 1.5A (DC) | 125 V | 28 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | - | - | -20°C ~ 70°C |
