Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBH2UEESNPNAGXSWITCH PUSH DPDT 0.1A 30V |
7,139 |
1+：$0.80000 10+：$0.69280 25+：$0.65344 50+：$0.62528 100+：$0.59808 288+：$0.55894 576+：$0.53466 1152+：$0.51136 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
PS1024ABLKSWITCH PUSH SPST-NO 3A 125V |
8,883 |
1+：$1.32800 10+：$1.14560 25+：$1.08064 50+：$1.03392 200+：$0.94604 400+：$0.90488 600+：$0.88162 1000+：$0.85311 |
|
Datasheet | PS1024 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | -20°C ~ 65°C |
|
PBH2UOANAGXSWITCH PUSH DPDT 0.1A 30V |
2,977 |
1+：$1.45600 10+：$1.26000 25+：$1.18848 50+：$1.13680 100+：$1.08752 256+：$1.02390 512+：$0.97931 1024+：$0.93659 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|

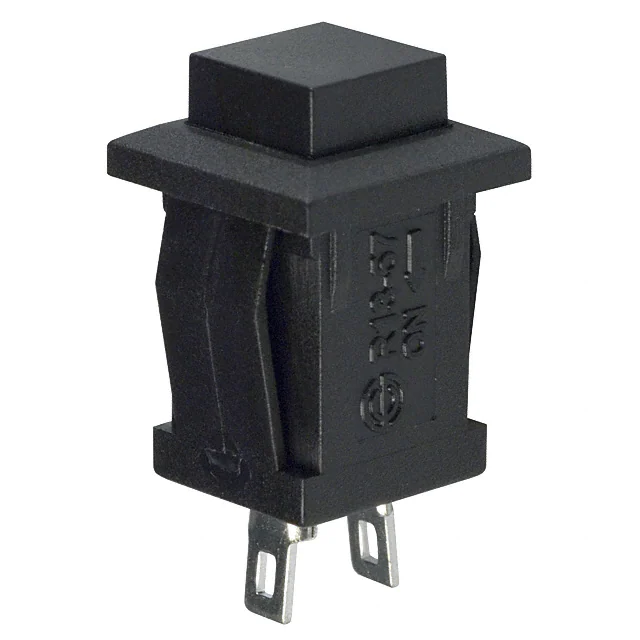

PS1057ABLKSWITCH PUSH SPST-NO 1A 125V |
420 | - |
|
Datasheet | PS1057 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 12.60mm x 11.30mm | -20°C ~ 65°C |
|
PBH2UEENAGXSWITCH PUSH DPDT 0.1A 30V |
2,598 | - |
|
Datasheet | PBH | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
PS1023ABLKSWITCH PUSH SPST-NO 3A 125V |
3,142 | - |
|
Datasheet | PS1023 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|

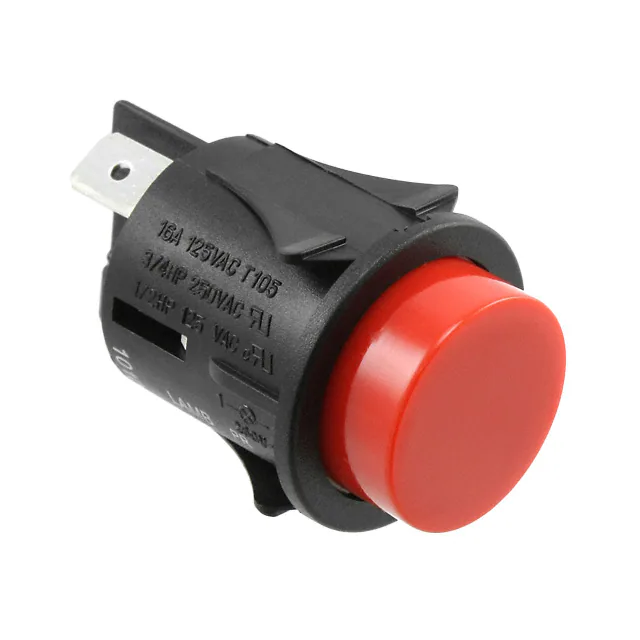

PR144C1900SWITCH PUSH SPST-NO 16A 125V |
2,382 | - |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|

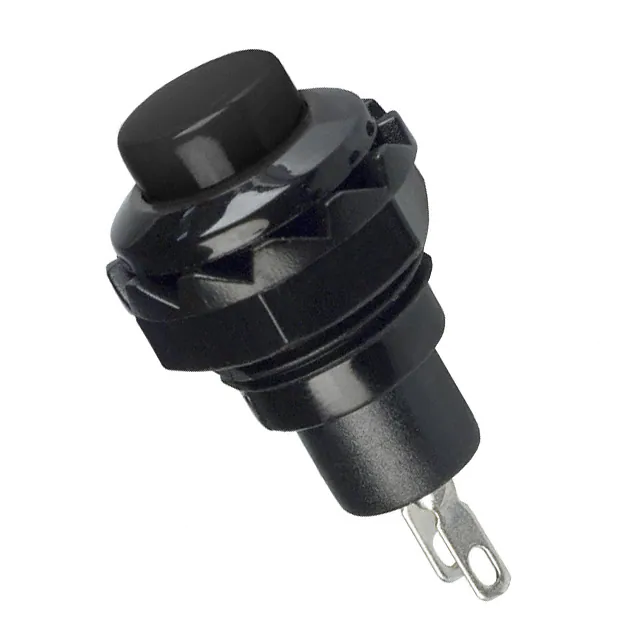

RP3502ABLKSWITCH PUSH SPST-NO 3A 120V |
2,535 | - |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
RP3502AREDSWITCH PUSH SPST-NO 3A 120V |
2,490 | - |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
RP3502MABLKSWITCH PUSH SPST-NO 3A 120V |
11,668 | - |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
