Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

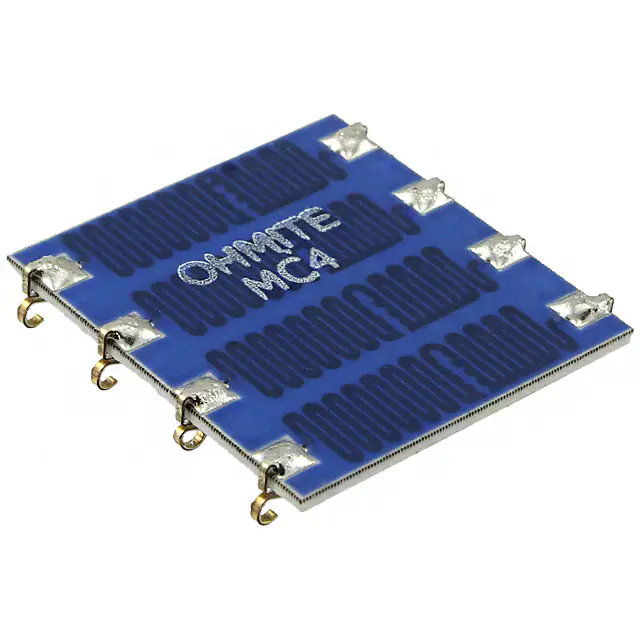

MC4-5007KERES ARRAY 4 RES 5G OHM 8SMD |
3,516 | - |
|
Datasheet | MC4 | 8-SMD | Bulk | Active | Isolated | 5G | ±10% | 4 | - | - | 8 | 750mW | ±100ppm/°C | -55°C ~ 180°C | - | - | - | Surface Mount | 8-SMD DIP | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.030" (0.76mm) |
|
SM104RD-0022RES NETWORK 2 RES 100K OHM 3SIP |
4,923 | - |
|
Datasheet | Slim-Mox Divider | 3-SIP | Bulk | Active | Voltage Divider | 100k | ±0.5% | 2 | ±0.5% | - | 3 | 1W | - | -55°C ~ 110°C | - | - | Voltage Divider (TCR Matched) | Through Hole | - | - | 0.250" (6.35mm) |
|
SM106RD-0021ERES NETWORK 2 RES MULT OHM 3SIP |
3,836 | - |
|
Datasheet | Slim-Mox Divider | 3-SIP | Bulk | Active | Voltage Divider | 8M, 4.008G | ±1% | 2 | ±0.5% | - | 3 | 1.5W | ±25ppm/°C | -55°C ~ 110°C | - | - | Voltage Divider (TCR Matched) | Through Hole | - | - | 0.250" (6.35mm) |
|
|
MC4-1007KERES ARRAY 4 RES 1G OHM 8SMD |
1,346 | - |
|
Datasheet | MC4 | 8-SMD | Bulk | Active | Isolated | 1G | ±10% | 4 | - | - | 8 | 750mW | ±100ppm/°C | -55°C ~ 180°C | - | - | - | Surface Mount | 8-SMD DIP | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.030" (0.76mm) |
|
|
MC4-5005JERES ARRAY 4 RES 50M OHM 8SMD |
3,600 | - |
|
Datasheet | MC4 | 8-SMD | Bulk | Active | Isolated | 50M | ±5% | 4 | - | - | 8 | 750mW | ±50ppm/°C | -55°C ~ 180°C | - | - | - | Surface Mount | 8-SMD DIP | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.030" (0.76mm) |
|
|
MC4-1003JERES ARRAY 4 RES 100K OHM 8SMD |
4,962 | - |
|
Datasheet | MC4 | 8-SMD | Bulk | Active | Isolated | 100k | ±5% | 4 | - | - | 8 | 750mW | ±50ppm/°C | -55°C ~ 180°C | - | - | - | Surface Mount | 8-SMD DIP | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.030" (0.76mm) |
|
|
MC4-5003JERES ARRAY 4 RES 500K OHM 8SMD |
1,013 | - |
|
Datasheet | MC4 | 8-SMD | Bulk | Active | Isolated | 500k | ±5% | 4 | - | - | 8 | 750mW | ±50ppm/°C | -55°C ~ 180°C | - | - | - | Surface Mount | 8-SMD DIP | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.030" (0.76mm) |
|
|
MC4-5004JERES ARRAY 4 RES 5M OHM 8SMD |
1,178 | - |
|
Datasheet | MC4 | 8-SMD | Bulk | Active | Isolated | 5M | ±5% | 4 | - | - | 8 | 750mW | ±50ppm/°C | -55°C ~ 180°C | - | - | - | Surface Mount | 8-SMD DIP | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.030" (0.76mm) |
|
|
MC4-1005JERES ARRAY 4 RES 10M OHM 8SMD |
1,851 | - |
|
Datasheet | MC4 | 8-SMD | Bulk | Active | Isolated | 10M | ±5% | 4 | - | - | 8 | 750mW | ±50ppm/°C | -55°C ~ 180°C | - | - | - | Surface Mount | 8-SMD DIP | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.030" (0.76mm) |
|
|
MC4-1006JERES ARRAY 4 RES 100M OHM 8SMD |
4,721 | - |
|
Datasheet | MC4 | 8-SMD | Bulk | Active | Isolated | 100M | ±5% | 4 | - | - | 8 | 750mW | ±50ppm/°C | -55°C ~ 180°C | - | - | - | Surface Mount | 8-SMD DIP | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.030" (0.76mm) |
