Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
752101103GRES ARRAY 9 RES 10K OHM 10SRT |
4,220 | - |
|
Datasheet | 752 | 10-SRT | Bulk | Obsolete | Bussed | 10k | ±2% | 9 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|
|
752101102GRES ARRAY 9 RES 1K OHM 10SRT |
4,521 | - |
|
Datasheet | 752 | 10-SRT | Bulk | Obsolete | Bussed | 1k | ±2% | 9 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|

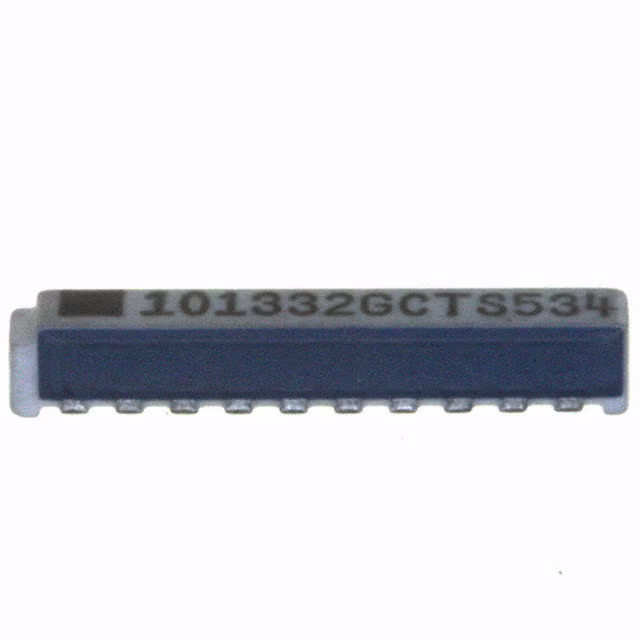

752101332GRES ARRAY 9 RES 3.3K OHM 10SRT |
4,946 | - |
|
Datasheet | 752 | 10-SRT | Bulk | Obsolete | Bussed | 3.3k | ±2% | 9 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|
753091101GTRRES ARRAY 8 RES 100 OHM 9SRT |
2,168 | - |
|
Datasheet | 753 | 9-SRT | Tape & Reel (TR) | Obsolete | Bussed | 100 | ±2% | 8 | - | - | 9 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.270" L x 0.080" W (6.86mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753091102GTRRES ARRAY 8 RES 1K OHM 9SRT |
3,002 | - |
|
Datasheet | 753 | 9-SRT | Tape & Reel (TR) | Obsolete | Bussed | 1k | ±2% | 8 | - | - | 9 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.270" L x 0.080" W (6.86mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753091222GTRRES ARRAY 8 RES 2.2K OHM 9SRT |
3,508 | - |
|
Datasheet | 753 | 9-SRT | Tape & Reel (TR) | Obsolete | Bussed | 2.2k | ±2% | 8 | - | - | 9 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.270" L x 0.080" W (6.86mm x 2.03mm) | 0.100" (2.53mm) |
|
|
752105131ATR7RES NTWRK 16 RES MULT OHM 10SRT |
1,877 | - |
|
Datasheet | 752 | 10-SRT | Tape & Reel (TR) | Obsolete | Dual Terminator | 220, 330 | ±2% | 16 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|
|
752105131ARES NTWRK 16 RES MULT OHM 10SRT |
2,474 | - |
|
Datasheet | 752 | 10-SRT | Bulk | Obsolete | Dual Terminator | 220, 330 | ±2% | 16 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|
RT1400B6TR7RES NTWRK 18 RES MULT OHM 27LBGA |
1,788 | - |
|
Datasheet | ClearONE™ | 27-LBGA | Tape & Reel (TR) | Obsolete | Dual Terminator | 25, 50 | ±1% | 18 | - | - | 27 | 50mW | ±200ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM | Surface Mount | 27-BGA (11.43x3.81) | 0.450" L x 0.150" W (11.43mm x 3.81mm) | 0.058" (1.47mm) |
|
|
RT1402B6TR7RES NTWRK 18 RES 50 OHM 27LBGA |
4,217 | - |
|
Datasheet | ClearONE™ | 27-LBGA | Tape & Reel (TR) | Obsolete | Dual Terminator | 50 | ±1% | 18 | - | - | 27 | 50mW | ±200ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM | Surface Mount | 27-BGA (11.43x3.81) | 0.450" L x 0.150" W (11.43mm x 3.81mm) | 0.058" (1.47mm) |
