RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

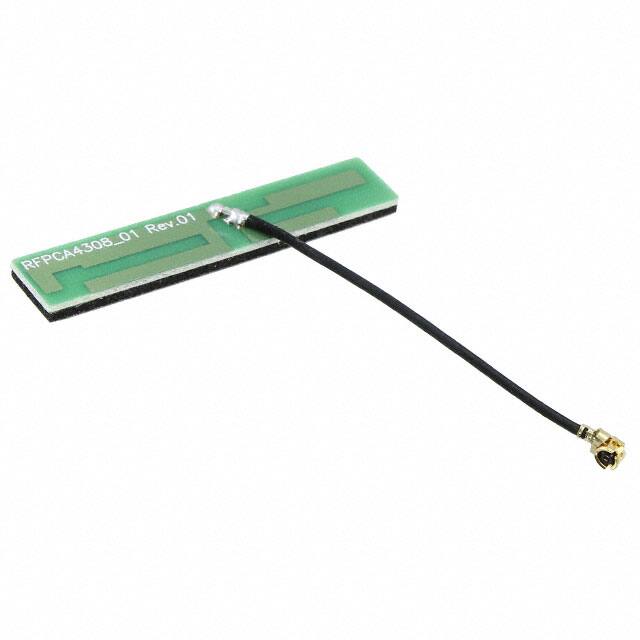

RFPCA430805IMLB301RF ANT 2.4GHZ/5.2GHZ PCB TRACE |
919 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz, 5.8GHz | - | PCB Trace | 3 | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|
RFPCA322615IMLB3G1RF ANT 2.4/5GHZ PCB TRACE IPEX |
468 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|
RFDPA161500SMMB802RF ANT DIPOLE SMA MALE RG178 LTE |
270 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.75GHz, 6.15GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 7.15GHz | Whip, Tilt | 4 | 3 | -6dB | 0.93dBi, 2.71dBi, 3.66dBi, 4.37dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.722" (196.15mm) | LTE |
|
RFANT3216120A5TRF ANT 2.4GHZ CHIP SOLDER SMD |
2,891 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN |
|
|
RGFRA8010110A2TTAPE & REEL (TR) |
3,074 | - |
|
Datasheet | RGFRA | Tape & Reel (TR) | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -9.6dB | 3.61dBi | - | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, ISM |
|

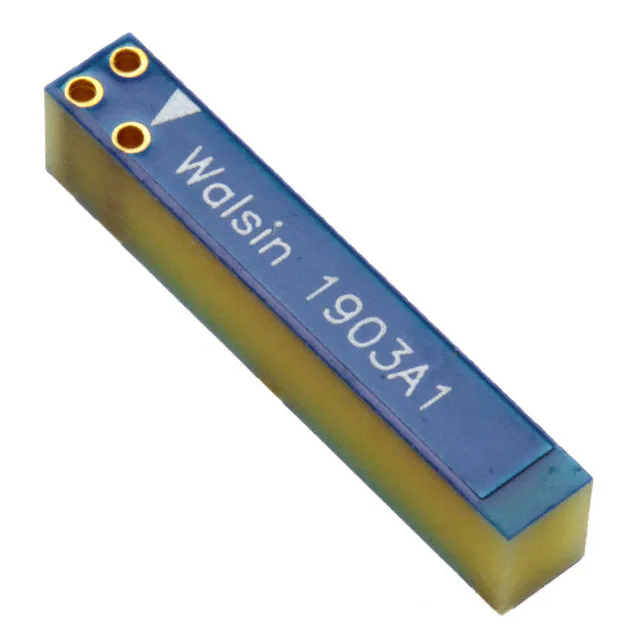

RGFRA1903041A1TRF ANT 2.4GHZ CHIP SOLDER SMD |
2,731 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.150" (3.80mm) | - |
|
|
RFECA3216060A7TSMD ANTENNA |
3,854 | - |
|
Datasheet | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RFECA3216060A4TSMD ANTENNA |
3,421 | - |
|
Datasheet | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RFECA3216060A6TSMD ANTENNA |
4,544 | - |
|
Datasheet | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RFECA3216060A0TSMD ANTENNA |
3,460 | - |
|
Datasheet | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
