RF Directional Coupler
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CP10208A-62 GHz - 8 GHz, 6 dB Coupling |
2,600 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 8GHz | 6dB | General Purpose | 1.7dB | 50W | 29dB | 23dB | Module |
|

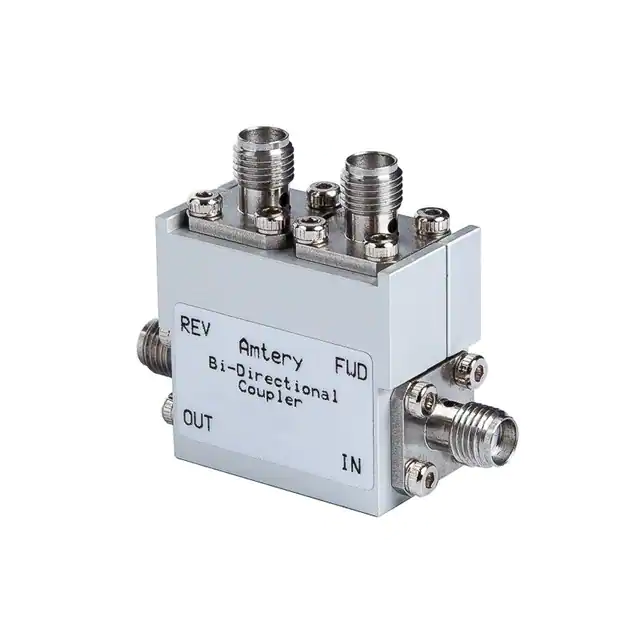

CP20710P150-207 GHz - 10 GHz, 20 dB Coupling |
2,441 | - |
|
Datasheet | - | Box | Active | Standard | 7GHz ~ 10GHz | 20dB | General Purpose | 0.35dB | 150W | 42dB | 23dB | Module |
|
CP20008A-60.5 GHz - 8 GHz, 6 dB Coupling |
1,354 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 6dB | General Purpose | 2dB | 50W | 29dB | 21dB | Module |
|
CP20008A-100.5 GHz - 8 GHz, 10 dB Coupling |
2,278 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 10dB | General Purpose | 1.3dB | 20W | 33dB | 23dB | Module |
|
CP10008A-100.5 GHz - 8 GHz, 10 dB Coupling |
2,462 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 10dB | General Purpose | 1.3dB | 20W | 33dB | 23dB | Module |
|
CP20418A-104 GHz - 18 GHz, 10 dB Coupling |
3,247 | - |
|
Datasheet | - | Box | Active | Standard | 4GHz ~ 18GHz | 10dB | General Purpose | 1dB | 20W | 31dB | 21dB | Module |
|
CP20218A-102 GHz - 18 GHz, 10 dB Coupling |
3,849 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 18GHz | 10dB | General Purpose | 1.1dB | 20W | 32dB | 21dB | Module |
|
CP10418A-104 GHz - 18 GHz, 10 dB Coupling |
1,872 | - |
|
Datasheet | - | Box | Active | Standard | 4GHz ~ 18GHz | 10dB | General Purpose | 1dB | 20W | 30dB | 21dB | Module |
|
CP10218A-102 GHz - 18 GHz, 10 dB Coupling |
4,505 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 18GHz | 10dB | General Purpose | 1.1dB | 20W | 33dB | 21dB | Module |
|
CP10218A-202 GHz - 18 GHz, 20 dB Coupling |
3 |
1+：$438.40000 4+：$426.40000 10+：$418.40000 |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 18GHz | 20dB | General Purpose | 0.5dB | 20W | 42dB | 26dB | Module |
