RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

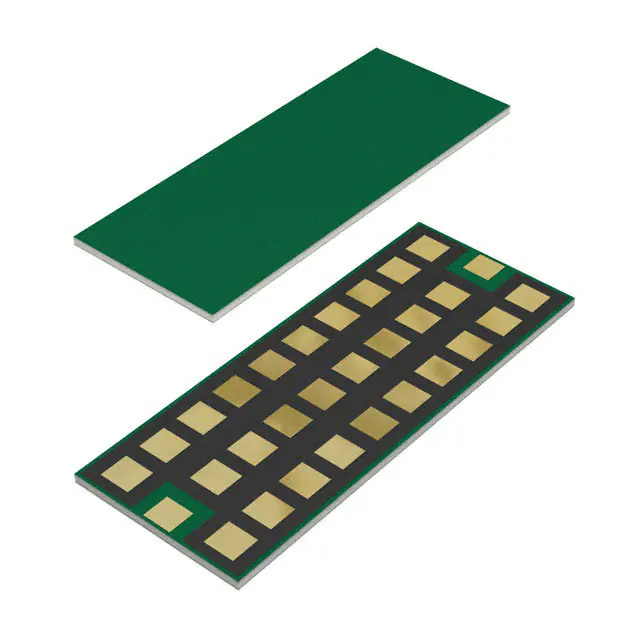

BP0EA3430A7TRRF FILT BAND PASS 3.43GHZ 30ULGA |
145 | - |
|
Datasheet | BP | 30-ULGA | Tape & Reel (TR) | Active | 3.43GHz | 1.82GHz | Band Pass | - | 1dB | Surface Mount | 0.460" L x 0.170" W (11.68mm x 4.32mm) | 0.022" (0.56mm) |
|
VLF-2750+RF FILTER LOW PASS 3.15GHZ SMA |
530 | - |
|
Datasheet | VLF-2750+ | SMA In line Module | Box | Active | 3.15GHz (Cutoff) | - | Low Pass | - | 1.83dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
B259MC1SRF FILTER BAND PASS 25.9GHZ |
155 | - |
|
Datasheet | - | - | Bulk | Active | 25.9GHz Center | 3.25GHz | Band Pass | - | 4dB | Surface Mount | 0.217" L x 0.09" W (5.5mm x 2.3mm) | 0.071" (1.80mm) |
|
HP2816A1000SNTRRF FILTER HIGH PASS 1GHZ 4SMD |
1,000 | - |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Active | 1GHz Center | - | High Pass | - | -1.5dB | Surface Mount | 0.276" L x 0.157" W (7.00mm x 4.00mm) | 0.047" (1.20mm) |
|
BPF-A69+RF FILTER BAND PASS 69MHZ 18SMD |
4,810 | - |
|
Datasheet | - | 18-SMD, No Lead | Tape & Reel (TR) | Active | 69MHz Center | 28MHz | Band Pass | - | - | Surface Mount | 1.360" L x 0.730" W (34.54mm x 18.54mm) | 0.350" (8.89mm) |
|
BPF-C495+RF FILTER BAND PASS 495MHZ 14SMD |
270 | - |
|
Datasheet | - | 14-SMD Module | Tape & Reel (TR) | Active | 495MHz Center | 50MHz | Band Pass | - | 3dB | Surface Mount | 0.870" L x 0.800" W (22.10mm x 20.32mm) | 0.250" (6.35mm) |
|
|
BPF-A1140+RF FILTER BANDPASS 1.14GHZ 14SMD |
252 | - |
|
Datasheet | - | 14-SMD Module | Tape & Reel (TR) | Active | 1.14GHz Center | 600MHz | Band Pass | - | 4dB | Surface Mount | 1.360" L x 0.365" W (34.54mm x 9.27mm) | 0.350" (8.89mm) |
|
L128XH4SRF FILTER LOW PASS 6GHZ 6SMD |
4,613 | - |
|
Datasheet | - | 6-SMD, No Lead | Bulk | Active | 6GHz Center | - | Low Pass | - | 1.5dB | Surface Mount | 0.220" L x 0.140" W (5.59mm x 3.56mm) | 0.103" (2.62mm) |
|
|
ZX75BP-204-S+RF FILTER BANDPASS 206MHZ INLINE |
3,555 | - |
|
Datasheet | ZX75BP | Inline, SMA Connection, F and M | Tray | Active | 206MHz Center | 62MHz | Band Pass | - | 3.2dB | Free Hanging (In-Line) | 0.740" L x 0.750" W (18.80mm x 19.05mm) | 0.490" (12.45mm) |
|
|
L254XF3S-TRF FILTER LOW PASS 25.4GHZ 3SMD |
211 | - |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | 25.4GHz Center | - | Low Pass | - | 2.2dB | Surface Mount | 0.220" L x 0.140" W (5.59mm x 3.56mm) | 0.093" (2.36mm) |
|
|
L117XH4SRF FILTER LOW PASS 5.5GHZ 6SMD |
178 | - |
|
Datasheet | - | 6-SMD, No Lead | Bulk | Active | 5.5GHz Center | - | Low Pass | - | 1.5dB | Surface Mount | 0.220" L x 0.140" W (5.59mm x 3.56mm) | 0.103" (2.62mm) |
|
|
B111NC4SRF FILTER BAND PASS 11.4GHZ 2SMD |
1,476 | - |
|
Datasheet | - | 2-SMD, No Lead | Bulk | Active | 11.4GHz | 2.55GHz | Band Pass | - | 2.25dB | Surface Mount | 0.400" L x 0.150" W (10.16mm x 3.81mm) | 0.103" (2.62mm) |
|
|
B168MB1S16.75GHZ SMD BANDPASS FILTER |
53 |
1+：$108.30400 10+：$88.38320 25+：$81.50176 50+：$78.95008 |
|
Datasheet | - | 2-SMD, No Lead | Bulk | Active | 16.75GHz | 2GHz | Band Pass | - | 2.75dB | Surface Mount | 0.350" L x 0.200" W (8.89mm x 5.08mm) | 0.098" (2.49mm) |
|
|
ABF-8R075G+RF FILTER BANDPASS 8.075GHZ 3SMD |
409 | - |
|
Datasheet | ABF-8R075G+ | 3-SMD Module | Tape & Reel (TR) | Active | 8.075GHz Center | 650MHz | Band Pass | - | 2.7dB | Surface Mount | 0.320" L x 0.220" W (8.13mm x 5.59mm) | 0.090" (2.29mm) |
|
B055NC5SRF FILTER BANDPASS 5.5GHZ 2SMD |
116 | - |
|
Datasheet | - | 2-SMD, No Lead | Tray | Active | 5.5GHz Center | 1GHz | - | - | 2.5dB | Surface Mount | 0.350" L x 0.200" W (8.89mm x 5.08mm) | 0.098" (2.49mm) |
|
B065NC5SRF FILTER BANDPASS 6.5GHZ 2SMD |
4,285 | - |
|
Datasheet | - | 2-SMD, No Lead | Tray | Active | 6.5GHz Center | 1GHz | - | - | 3.5dB | Surface Mount | 0.500" L x 0.250" W (12.70mm x 6.35mm) | 0.098" (2.49mm) |
|
BPF1608LM06R5000ARF FILTER BAND PASS 5.55GHZ 0603 |
44,566 |
1+：$0.09600 10+：$0.07600 25+：$0.07008 50+：$0.06592 100+：$0.06192 250+：$0.05709 500+：$0.05368 1000+：$0.05049 |
|
Datasheet | 1608 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 5.55GHz Center | 800MHz | Band Pass | - | 0.6dB | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.030" (0.75mm) |
|
|
LPF1005LL50R2400ARF FILTER LOW PASS 2.45GHZ 0402 |
25,952 |
1+：$0.13600 10+：$0.11200 25+：$0.10272 50+：$0.09664 100+：$0.09088 250+：$0.08378 500+：$0.07880 1000+：$0.07411 5000+：$0.06430 |
|
Datasheet | 1005 | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | 100MHz | Low Pass | - | 0.5dB | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.018" (0.45mm) |
|
|
LQZ02HQ242A02ERF FILTER 2.45GHZ 01005 |
30,000 | - |
|
Datasheet | - | 01005 (0402 Metric) | Tape & Reel (TR) | Active | 2.45GHz Center | 100MHz | - | - | - | Surface Mount | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
BPF1005LM03R2400ARF FILTER BAND PASS 2.45GHZ 0402 |
7,161 | - |
|
Datasheet | 1005 | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | 100MHz | Band Pass | - | 1.5dB | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.018" (0.45mm) |
