RF Mixers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Frequency | Number of Mixers | Gain | Noise Figure | Secondary Attributes | Current - Supply | Voltage - Supply | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC404-SXIC MIXER SUB-HARMONIC DIE |
3,553 | - |
|
Datasheet | - | Die | Tray | Active | General Purpose | 26GHz ~ 33GHz | 2 | - | 11dB | Up/Down Converter | 28mA | 4V | Surface Mount | Die |
|
HMC525A-SX12-PAD BARE DIE [CHIP] SAMPLE PA |
2,555 | - |
|
Datasheet | - | Die | Tray | Active | General Purpose | 4GHz ~ 8.5GHz | 2 | - | 10.5dB | Up/Down Converter | - | - | Surface Mount | Die |
|
|
HMC521A-SXGAAS IQ MIXER SAMPLE PACK |
4,860 | - |
|
Datasheet | - | Die | Tray | Active | VSAT | 8.5GHz ~ 13.5GHz | 2 | - | 14dB | Down Converter | - | - | - | Die |
|
HMC337-SXIC MIXER SUB-HARMONIC DIE |
4,643 | - |
|
Datasheet | - | Die | Tray | Active | General Purpose | 17GHz ~ 25GHz | 1 | - | 9dB | Up/Down Converter | 28mA | 3V ~ 4V | Surface Mount | Die |
|
|
HMC774AIC MMIC MIXER DBL-BAL |
4,234 | - |
|
Datasheet | - | - | Tray | Active | VSAT | 7GHz ~ 34GHz | 1 | - | - | - | - | - | - | - |
|
HMC264-SXIC MIXER SUB-HARMONIC DIE |
3,636 | - |
|
Datasheet | - | Die | Tray | Active | General Purpose | 20GHz ~ 32GHz | 1 | - | 10dB | Up/Down Converter | 28mA | 3V ~ 4V | Surface Mount | Die |
|
|
HMC774A-SXMIXERS |
3,253 | - |
|
Datasheet | - | Die | Tray | Active | VSAT | 7GHz ~ 40GHz | 1 | - | 12dB | Up/Down Converter | - | - | Surface Mount | Die |
|
HMC8192-SX20 TO 42GHZ I/Q MIXER |
4,356 | - |
|
Datasheet | - | 25-LFLGA Exposed Pad | Tray | Active | Radar | 20GHz ~ 42GHz | 2 | - | - | - | - | - | Surface Mount | 25-LGA (4x4) |
|

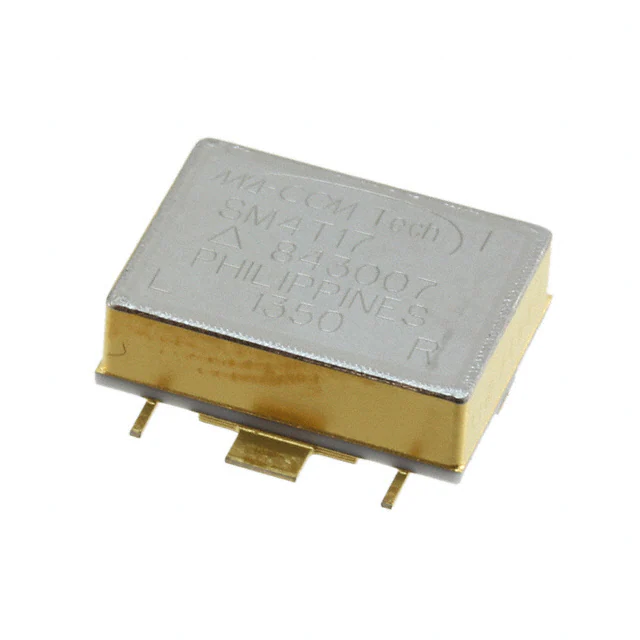

SM4T17MIXER SURFACE MOUNT |
4,171 | - |
|
Datasheet | - | Module | Bulk | Active | General Purpose | 3.4GHz | 1 | - | - | - | - | - | Surface Mount | Module |
|
|
HMC773A-SXFUNDAMENTAL MIXER SMT, 6 - 26 GH |
3,911 | - |
|
Datasheet | - | Die | Tray | Active | General Purpose | 6GHz ~ 26GHz | 1 | - | 10dB | Up/Down Converter | - | - | Surface Mount | Die |
|
MC4510MIXER.SMALL OPEN CARRIER |
3,307 | - |
|
Datasheet | - | Module | Tray | Active | General Purpose | 4GHz ~ 20GHz | 2 | - | 7.5dB | Down Converter | - | - | - | - |
|
M9HMIXER,DOUBLE BALANCED |
4,469 | - |
|
Datasheet | - | TO-8 Style, 4 Lead | Tray | Active | General Purpose | 10MHz ~ 1.5GHz | 2 | - | 9dB | Down Converter | - | - | - | TO-8 |
|
MY50CMIXER,MICROWAVE |
3,964 | - |
|
Datasheet | - | Module, SMA Connectors | Tray | Active | General Purpose | 2GHz ~ 26GHz | 3 | - | 9dB | Down Converter | - | - | - | - |
|

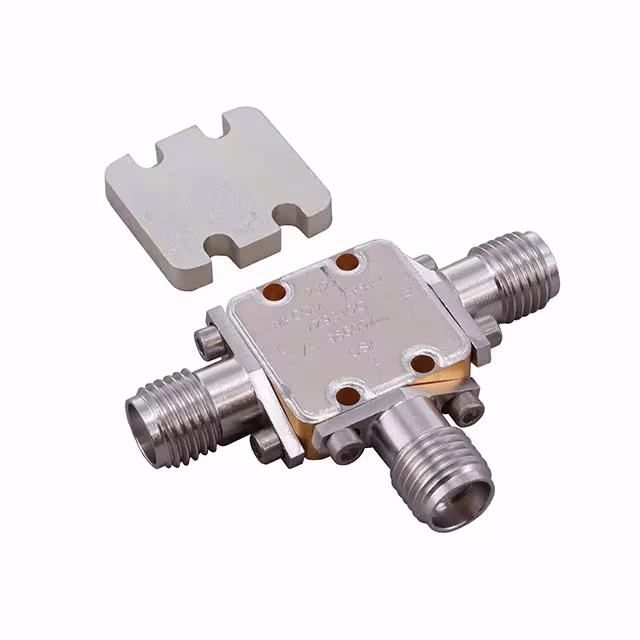

MZ9310CMIXER,MICROWAVE |
2,608 | - |
|
Datasheet | - | Module, SMA Connectors | Tray | Active | General Purpose | 2GHz ~ 18GHz | 3 | - | 8dB | Down Converter | - | - | - | - |
|
HMC339IC MIXER SUB-HARMONIC DIE |
1,775 | - |
|
Datasheet | - | Die | Tray | Active | General Purpose | 33GHz ~ 42GHz | 1 | - | 10dB | - | 28mA | 3V ~ 4V | Surface Mount | Die |
|
HMC-MDB171IC MMIC IQ MIXER DIE |
4,141 | - |
|
Datasheet | - | Die | Bulk | Active | Radar | 35GHz ~ 45GHz | 2 | - | - | Up Converter | - | - | Surface Mount | Die |
|
|
MAC-60+LEVEL 7, RF/LO 1600 - 6000 MHZ |
100 | - |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | PCN, Radar, WCDMA | 1.6GHz ~ 6GHz | 1 | - | - | - | 40mA | - | Surface Mount | - |
|
HMC521ALC4TRIC MMIC IQ MIXER 24CLCC |
100 | - |
|
Datasheet | - | 24-CLCC Exposed Pad | Tape & Reel (TR) | Active | Radar | 8.5GHz ~ 13.5GHz | 2 | - | - | - | - | - | Surface Mount | 24-CLCC (3.9x3.9) |
|
|
CMD183C47.5-13 GHZ C,X,KU BAND I/Q MIXER |
3,605 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | 7.5GHz ~ 13GHz | 1 | - | - | - | - | - | Surface Mount | 24-SMT (3.9x3.9) |
|
|
TFM-3+LEVEL 7, DBM, RF/LO 0.04-400 MHZ |
2,635 | - |
|
Datasheet | - | 4-SIP Module | Tube | Active | UHF, VHF | 40kHz ~ 400MHz | 1 | - | - | - | 40mA | - | Through Hole | - |
