RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RFDIP1608060L5TDIPLEXER |
2,619 | - |
|
Datasheet | RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | - | - | - | Surface Mount |
.jpg)
|
RFDIP1608060L0TRF DIPLEXER 2.45GHZ/5.4GHZ 0603 |
2,972 | - |
|
Datasheet | RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 18.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
|
RFDIP1608060L3TRF DIPLEXER 2.45GHZ/5.4GHZ 0603 |
2,004 | - |
|
Datasheet | RFDIP | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 18.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
|
RFTIP2109ATM0T63TRIPLEXER |
1,644 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
RFDIP2012050LBTDIPLEXER |
4,224 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
|
RFDIP2012050LCTDIPLEXER |
1,947 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|

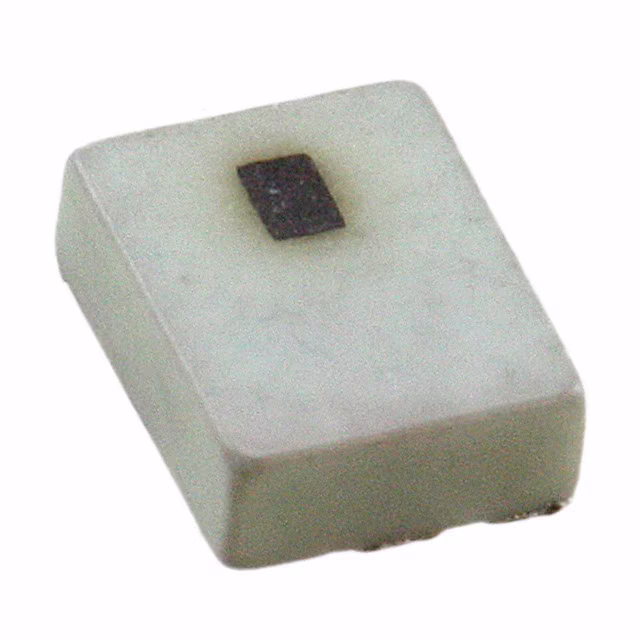

RFDIP2520080TM0T62RF DIPLEXER 1.575/2.45GHZ 1008 |
4,063 | - |
|
Datasheet | RFDIP | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz | - | 30.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
RFDIP2012050L7TRF DIPLEXER 2.45GHZ/5.4GHZ 0805 |
4,620 | - |
|
Datasheet | RFDIP | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | 18.00dB / - | 19.00dB / - | - | - | - | Surface Mount |
|
|
AMDIP2004L157B1UDIPLEXER |
1,915 | - |
|
Datasheet | AMDIP | 6-SMD Module | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / - | 20.00dB / - | - | Automotive | AEC-Q200 | Surface Mount |
