RF Shields
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMI-S-101RF SHIELD 0.5"X0.538" SOLDER 1PC |
4,094 |
1+：$1.25600 10+：$1.07920 25+：$1.01824 100+：$0.93440 250+：$0.88406 500+：$0.84846 |
|
Datasheet | SMT 1 Piece | Tape & Reel (TR) | Active | Shield, 1-Piece | 0.100" (2.54mm) | 0.538" (13.66mm) | 0.512" (13.00mm) | Vent Holes in Pattern | Surface Mount |
|
BMI-S-230-CRF SHIELD 2" X 1.5" SNAP FIT |
8,254 |
1+：$1.20800 10+：$1.04000 25+：$0.98112 100+：$0.90024 450+：$0.82243 900+：$0.78977 1350+：$0.77153 2700+：$0.74177 5400+：$0.71373 |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.125" (3.18mm) | 1.514" (38.46mm) | 2.014" (51.16mm) | Non-Vented | Snap Fit |
|
36903255SRF SHIELD 0.984" SNAP FIT |
361 | - |
|
Datasheet | WE-SHC | Tape & Reel (TR) | Active | Cover | 0.126" (3.20mm) | 0.984" (25.00mm) | - | Non-Vented | Snap Fit |
|
BMI-S-209-CRF SHIELD 0.728"X1.156" SNAP FIT |
10,078 |
1+：$0.96000 10+：$0.82640 25+：$0.77920 100+：$0.71440 400+：$0.65672 800+：$0.63031 1200+：$0.61555 2800+：$0.58631 5200+：$0.56625 |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.118" (3.00mm) | 1.180" (29.96mm) | 0.752" (19.10mm) | Non-Vented | Snap Fit |
|
BMI-S-202-CRF SHIELD 0.668"X0.668" SNAP FIT |
17,191 |
1+：$0.58400 14+：$0.49143 28+：$0.47000 105+：$0.43223 252+：$0.40934 504+：$0.39237 1001+：$0.37650 2506+：$0.35666 5005+：$0.34270 |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 0.668" (16.96mm) | 0.668" (16.96mm) | Vent Holes in Pattern | Snap Fit |
|
BMI-S-205-FRF SHIELD 1" X 1.5" SOLDER |
13,930 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.236" (6.00mm) | 1.500" (38.10mm) | 1.000" (25.40mm) | - | Surface Mount |
|
MS570-10FRF SHIELD 1.220"X2.244" SOLDER |
3,191 |
1+：$1.66400 21+：$1.36952 42+：$1.31181 105+：$1.24054 252+：$1.17737 504+：$1.13055 1008+：$1.08642 2520+：$1.03194 5019+：$0.99371 |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.236" (6.00mm) | 2.244" (57.00mm) | 1.220" (31.00mm) | - | Solder |
|
|
36103205RF SHIELD 0.827" X 0.827" SMD |
3,630 | - |
|
Datasheet | WE-SHC | Tray | Active | Frame | 0.118" (3.00mm) | 0.827" (21.00mm) | 0.827" (21.00mm) | - | Surface Mount |
|

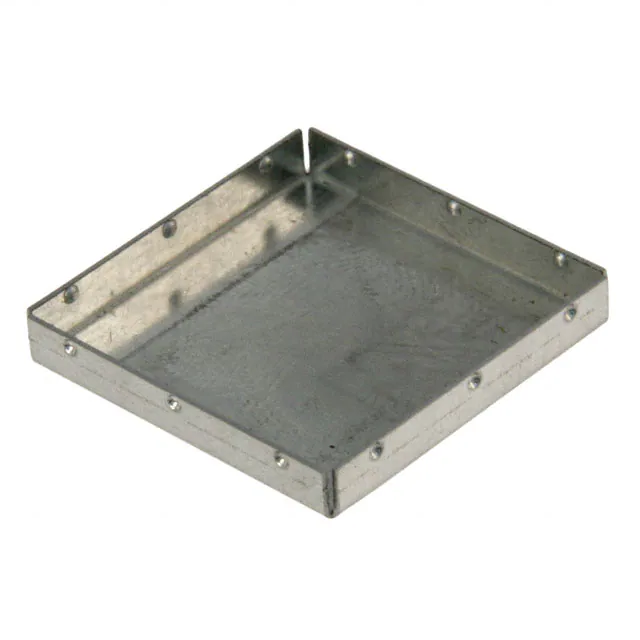

36003200RF SHIELD 0.858X0.858" SLDR/SNAP |
2,710 | - |
|
Datasheet | WE-SHC | Bulk | Active | Cover | 0.118" (3.00mm) | 0.858" (21.80mm) | 0.858" (21.80mm) | Non-Vented | Solder and Snap On |
|
BMI-S-202-FRF SHIELD 0.65" X 0.65" SOLDER |
19,128 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.142" (3.60mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | - | Surface Mount |
|
BMI-S-203-CRF SHIELD 1.05" X 1.05" SNAP FIT |
44,170 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.050" (26.67mm) | 1.050" (26.67mm) | Vent Holes in Pattern | Snap Fit |
|
BMI-S-209-FRF SHIELD 0.728" X 1.156" SOLDER |
17,847 |
1+：$1.11200 10+：$0.95920 25+：$0.90528 100+：$0.83048 |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.276" (7.00mm) | 1.156" (29.36mm) | 0.728" (18.50mm) | - | Surface Mount |
|
BMI-S-204-CRF SHIELD 1.278"X1.278" SNAP FIT |
34,085 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.278" (32.46mm) | 1.278" (32.46mm) | Vent Holes in Pattern | Snap Fit |
|
BMI-S-210-CRF SHIELD 1.201"X1.732" SNAP FIT |
7,321 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.094" (2.40mm) | 1.756" (44.60mm) | 1.224" (31.10mm) | Non-Vented | Snap Fit |
|
|
BMI-S-102RF SHIELD 0.65"X0.65" SOLDER 1PC |
92,448 | - |
|
Datasheet | SMT 1 Piece | Tape & Reel (TR) | Active | Shield, 1-Piece | 0.142" (3.60mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | Vent Holes in Pattern | Surface Mount |
|
BMI-S-210-FRF SHIELD 1.201" X 1.732" SOLDER |
10,574 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.118" (3.00mm) | 1.732" (44.00mm) | 1.201" (30.50mm) | - | Surface Mount |
|
|
BMI-S-103RF SHIELD 1.032"X1.032" SLDR 1PC |
131,541 | - |
|
Datasheet | SMT 1 Piece | Tape & Reel (TR) | Active | Shield, 1-Piece | 0.200" (5.08mm) | 1.032" (26.21mm) | 1.032" (26.21mm) | Vent Holes in Pattern | Surface Mount |
|
BMI-S-203-FRF SHIELD 1.032" X 1.032" SOLDER |
15,627 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.032" (26.21mm) | 1.032" (26.21mm) | - | Surface Mount |
|
36103305RF SHIELD 1.22" X 1.22" SMD |
461 | - |
|
Datasheet | WE-SHC | Tray | Active | Frame | 0.118" (3.00mm) | 1.220" (31.00mm) | 1.220" (31.00mm) | - | Surface Mount |
|
BMI-S-230-F-RRF SHIELD 2" X 1.5" SOLDER |
7,752 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.500" (38.10mm) | 2.000" (50.80mm) | - | Surface Mount |
