RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC641A-SXIC RF SWITCH SP4T 18GHZ DIE |
2,457 | - |
|
Datasheet | - | Die | Tray | Active | VSAT | Absorptive | SP4T | 0Hz ~ 18GHz | 38dB | 2.1dB | 8GHz | - | 41dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
HMC986A-SXIC RF SWITCH SPDT 50GHZ DIE |
3,190 | - |
|
Datasheet | - | Die | Tray | Active | Radar | Reflective | SPDT | 100MHz ~ 50GHz | 34dB | 2.1dB | 40GHz | 28dBm | 40dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|

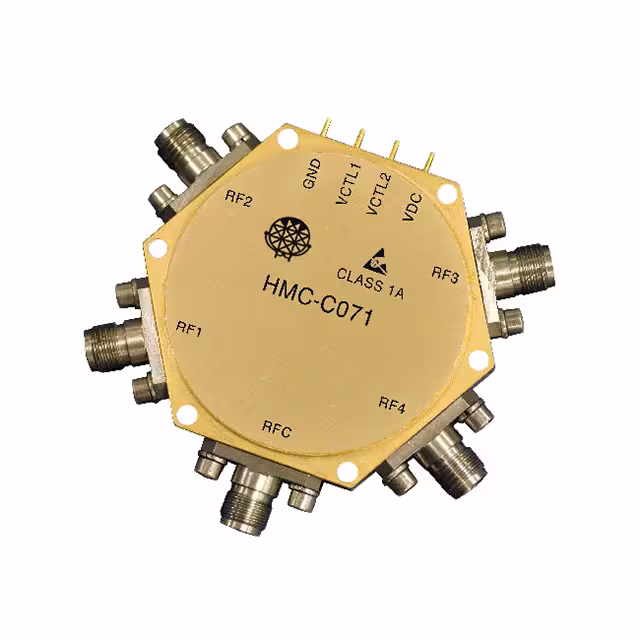

HMC-C071IC RF SWITCH SP4T 20GHZ MODULE |
3,786 | - |
|
Datasheet | - | Module, SMA Connectors | Bulk | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 20GHz | 38dB | - | 20GHz | 24dBm | 40dBm | - | 50Ohm | 5V | -55°C ~ 85°C | - | - | - | Module |
|
HMC347B-SXIC RF SWITCH SPDT 20GHZ DIE |
3,047 | - |
|
Datasheet | - | Die | Tray | Active | VSAT | Absorptive | SPDT | 100MHz ~ 20GHz | 45dB | 1.7dB | 20GHz | 25dBm | 41dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
HMC344ATCPZ-EP-PTIC RF SWITCH SP4T 8GHZ 16LFCSP |
4,620 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad, CSP | Strip | Active | General Purpose | - | SP4T | 100MHz ~ 8GHz | 32dB | 2.1dB | 8GHz | 25dBm | 44dBm | - | 50Ohm | -3V ~ -5V | -55°C ~ 125°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
HMC641ATCPZ-EP-PTIC RF SWITCH SP4T 20GHZ 24LFCSP |
3,431 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad, CSP | Strip | Active | General Purpose | Absorptive | SP4T | 100MHz ~ 20GHz | 40dB | 3dB | 20GHz | 24dBm | 41dBm | - | 50Ohm | - | -55°C ~ 125°C | - | - | Surface Mount | 24-LFCSP (4x4) |
|
HMC349AMS8GETRIC RF SWITCH SPDT 4GHZ 8MSG |
1,727 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SPDT | 0Hz ~ 4GHz | 50dB | 1.2dB | 3GHz | 34dBm | 53dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP-EP |
|
HMC241AQS16ETRIC RF SWITCH SP4T 3.5GHZ 16QSOP |
1,999 | - |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | CATV | Absorptive | SP4T | 0Hz ~ 3.5GHz | 36dB | 0.8dB | 2.5GHz | 29dBm | 48dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QSOP |
|
HMC252AQS24ETRIC RF SWITCH SP6T 2.5GHZ 24QSOP |
4,602 | - |
|
Datasheet | - | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | General Purpose | - | SP6T | 0Hz ~ 3GHz | 32dB | 1.4dB | 3GHz | 28dBm | 47dBm | - | 50Ohm | 3V ~ 5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
ADRF5050BCCZNIC RF SWITCH SP4T 20GHZ 24LGA |
1,293 | - |
|
Datasheet | - | 24-WFLGA Exposed Pad | Strip | Active | General Purpose | Absorptive | SP4T | 100MHz ~ 20GHz | 47dB | 1.2dB | 20GHz | - | 55dB | Single Line Control | - | -3.3V ~ 3.3V | -40°C ~ 105°C | - | - | Surface Mount | 24-LGA (3x3) |
