Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1D0206S-VASWITCH ROTARY 2-6POS 100MA 125V |
4,674 | - |
|
Datasheet | C1 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 1 | SP6T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 25.68mm |
|
C1D0112N-VASWITCH ROTARY 2-12POS 100MA 125V |
1,536 | - |
|
Datasheet | C1 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 20.60mm |
|
|
C1D0206N-VASWITCH ROTARY 2-6POS 100MA 125V |
2,114 | - |
|
Datasheet | C1 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 1 | SP6T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 25.68mm |
|
|
C1D0406S-ASWITCH ROTARY 2-6POS 100MA 125V |
4,137 | - |
|
Datasheet | C1 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 25.68mm |
|
|
C1D0604S-ASWITCH ROTARY 2-4POS 100MA 125V |
1,345 | - |
|
Datasheet | C1 | Bulk | Active | 2 ~ 4 | Adjustable | 2 | 3 | 3P4T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 25.68mm |
|
|
C4D0212S-ASWITCH ROTARY 2-12POS 300MA 125V |
1,314 | - |
|
Datasheet | C4 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Shorting (MBB) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 27.33mm |
|

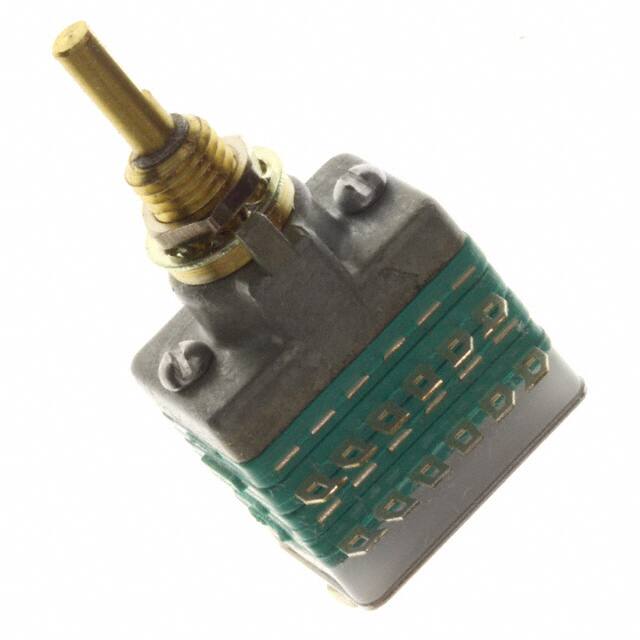

C1D0212N-ASWITCH ROTARY 2-12POS 100MA 125V |
3,316 | - |
|
Datasheet | C1 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 25.68mm |
|
|
C1D0406S-VASWITCH ROTARY 2-6POS 100MA 125V |
3,307 | - |
|
Datasheet | C1 | Bulk | Active | 2 ~ 6 | Adjustable | 4 | 1 | SP6T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 35.84mm |
|
|
C1D0406N-ASWITCH ROTARY 2-6POS 100MA 125V |
3,238 | - |
|
Datasheet | C1 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 25.68mm |
|
|
C3P0212S-ASWITCH ROTARY 2-12POS 100MA 125V |
1,269 | - |
|
Datasheet | C3 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Shorting (MBB) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.00mm |
