Selector Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Number of Positions | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Mounting Type | Termination Style | Panel Cutout Dimensions | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB6EAD232PSWITCH SELECT 3P DPDT 1.5A 120V |
4,549 | - |
|
Datasheet | Harmony XB6 | Box | Obsolete | Standard | DPDT | 3 | On-Off-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Illuminated | LED, Red | 24 VDC | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -10°C ~ 55°C |
|
XB6EAD222PSWITCH SELECTOR |
1,910 | - |
|
Datasheet | Harmony XB6E | Box | Active | Standard | SPDT | 2 | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -10°C ~ 55°C |
|
|
XB5AD41C0SWITCH SELECTOR |
2,238 | - |
|
Datasheet | Harmony XB5 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67 - Dust Tight, Waterproof | - | -40°C ~ 70°C |
|
XB6CD221BSWITCH SELECT 2POS DPST 3A 120V |
4,893 | - |
|
Datasheet | Harmony XB6 | Box | Obsolete | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Non-Illuminated | LED, Green | 24 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|

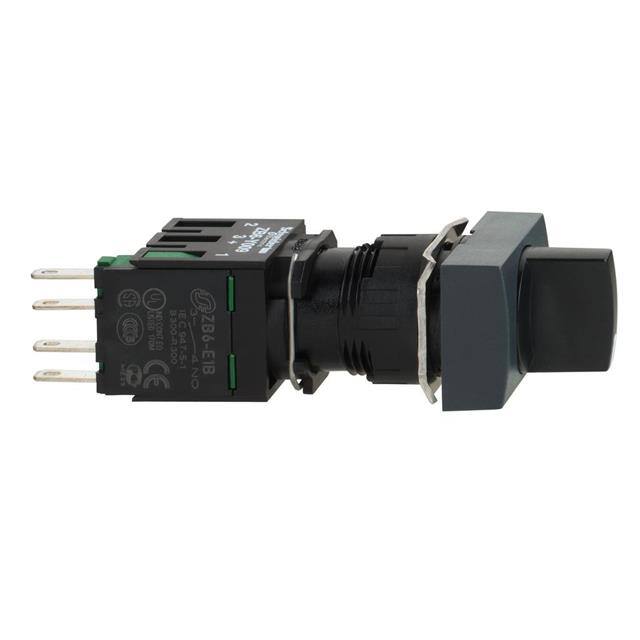

XB6DD221BSWITCH SELECT 2POS DPST 3A 120V |
4,130 | - |
|
Datasheet | Harmony XB6 | Box | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
ZA2BD2SWITCH SELECTOR 2POS |
3,279 | - |
|
Datasheet | Harmony XAC | Box | Active | Standard | - | 2 | - | - | - | - | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
|
XB5FD41C0SWITCH SELECTOR 2POS |
4,851 | - |
|
Datasheet | Harmony XB5 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.50mm Dia | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
|
|
XB5AD21C0SWITCH SELECTOR |
3,752 | - |
|
Datasheet | Harmony XB5 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67 - Dust Tight, Waterproof | - | -40°C ~ 70°C |
|
|
XB5AJ21C0SWITCH KEYLOCK |
1,481 | - |
|
Datasheet | Harmony XB5 | Box | Active | Standard | DPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67 - Dust Tight, Waterproof | - | -40°C ~ 70°C |
|
|
XB5FD21C0SWITCH SELECTOR 2POS |
2,280 | - |
|
Datasheet | Harmony XB5 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.50mm Dia | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
