Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8-1617349-0RELAY GEN PURPOSE 4PDT 2A 26.5V |
2,488 | - |
|
Datasheet | 3SBM, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 27.2 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|

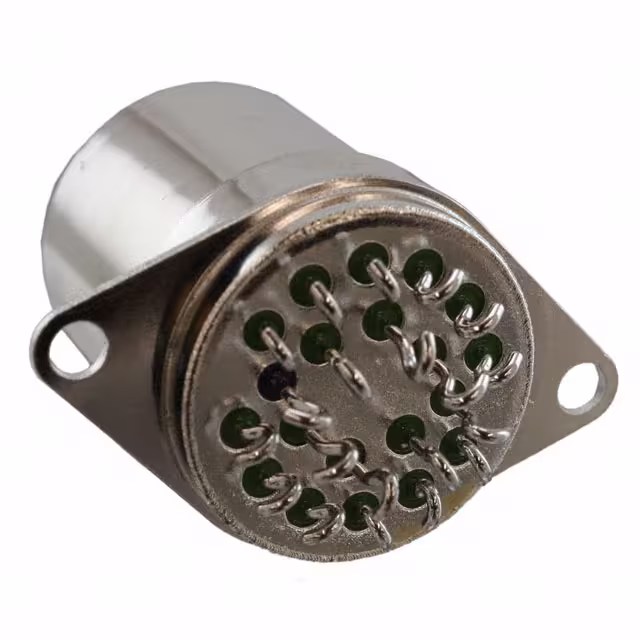

RD6CAH2600RELAY GEN PURPOSE 6PDT 2A 26.5V |
3,686 | - |
|
Datasheet | RD, CII | Bulk | Active | Chassis Mount | 26.5VDC | 6PDT (6 Form C) | 2 A | 28VDC - Nom | - | 133 mA | Non Latching | - | Solder Hook | - | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-5757/1 |
|
|
2-1617057-2RELAY GENERAL PURPOSE |
3,088 | - |
|
Datasheet | 5407 | Bulk | Active | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
1617121-7RELAY GEN PURPOSE DPDT 1A 26.5V |
4,461 | - |
|
Datasheet | MAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617126-3RELAY GEN PURPOSE DPDT 1A 18V |
2,379 | - |
|
Datasheet | MAWD | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617029-6RELAY GEN PURPOSE DPDT 2A 12V |
1,448 | - |
|
Datasheet | HFW | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617148-3RELAY GEN PURPOSE DPDT 1A 26.5V |
4,406 | - |
|
Datasheet | MGAPD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617146-2RELAY GEN PURPOSE DPDT 1A 26.5V |
3,733 | - |
|
Datasheet | MGACD | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617029-5RELAY GEN PURPOSE DPDT 2A 12V |
3,069 | - |
|
Datasheet | HFW | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617121-3RELAY GEN PURPOSE DPDT 1A 12V |
3,613 | - |
|
Datasheet | MAC | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
