Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SBC1512A2RELAY GEN PURPOSE DPDT 2A 26.5V |
4,244 | - |
|
Datasheet | 3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
|
3SBH5004K1RELAY GEN PURPOSE 4PDT 2A 26.5V |
4,970 | - |
|
Datasheet | 3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH5004K2RELAY GEN PURPOSE 4PDT 2A 26.5V |
3,028 | - |
|
Datasheet | 3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH5134K5RELAY GEN PURPOSE 4PDT 2A 26.5V |
3,233 | - |
|
Datasheet | 3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBC1623A2RELAY GENERAL PURPOSE DPDT 2A |
2,082 | - |
|
Datasheet | 3SBC, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | - | - | PC Pin | - | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1142A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
3,710 | - |
|
Datasheet | 3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3SBH1227A2RELAY GEN PURPOSE 4PDT 2A 18V |
3,306 | - |
|
Datasheet | 3SBH, CII | Bulk | Active | Through Hole | 18VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 64.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.4 VDC | 0.8 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|

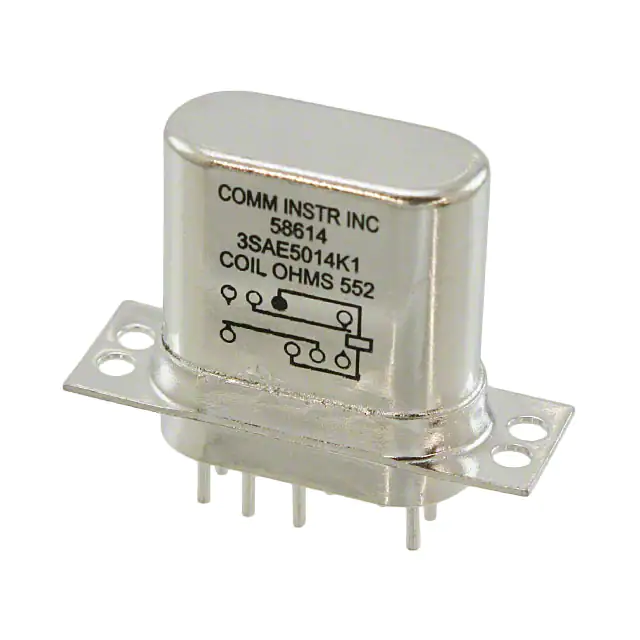

3SAE5014K1RELAY GEN PURPOSE DPDT 2A 24V |
4,398 | - |
|
Datasheet | 3SAE, CII | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 43.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 6 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1-1617054-0RELAY |
3,074 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1617054-9RELAY |
1,175 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
