Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1520160-1SWITCH SLIDE SPST 6A 125V |
4,745 | - |
|
Datasheet | 8907 | Bulk | Obsolete | SPST | - | On-Off | 6A (AC) | 125 V | - | Standard | - | - | - | Panel Mount, Right Angle | Wire Leads | - |
|
|
SL330SWITCH SLIDE SP3T 250MA 125V |
2,951 | - |
|
Datasheet | SL | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 14.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSS4300GSWITCH SLIDE 4P3T 0.4VA 20V |
2,627 | - |
|
Datasheet | MSS | Bulk | Obsolete | 4P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1437576-4SWITCH SLIDE DP3T 300MA 125V |
3,076 | - |
|
Datasheet | CST | Tray | Obsolete | DP3T | Non-Shorting (BBM) | On-On-On | 300mA (AC), 200mA (DC) | 125 V | 12 V | Baton | 12.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

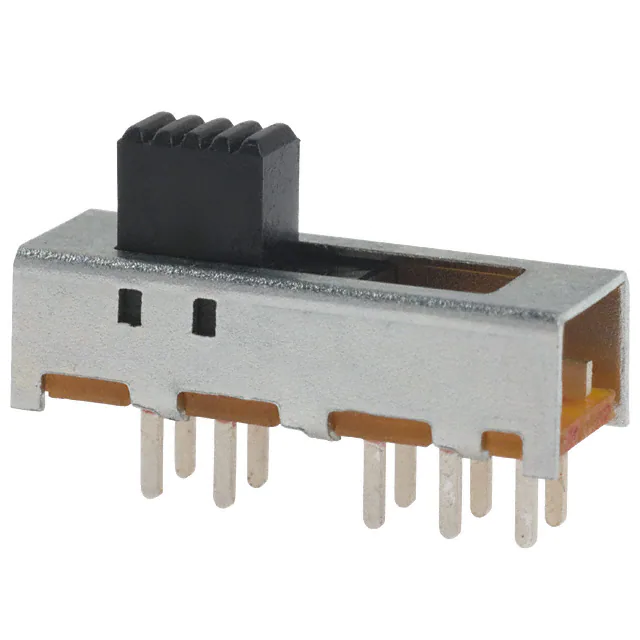

1825165-1SWITCH SLIDE DP4T 300MA 125V |
2,691 | - |
|
Datasheet | STS | Bulk | Obsolete | DP4T | Shorting (MBB) | On-On-On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825116-3SWITCH SLIDE SPDT 250MA 125V |
4,302 | - |
|
Datasheet | SLS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
STSA230RASWITCH SLIDE DP3T 300MA 125V |
4,745 | - |
|
Datasheet | STSA | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
STSA230RA1SWITCH SLIDE DP3T 300MA 125V |
4,275 | - |
|
Datasheet | STSA | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1825256-3SWITCH SLIDE SP3T 300MA 125V |
1,872 | - |
|
Datasheet | MHS | Bulk | Active | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
SE2EGRASWITCH SLIDE DPDT 0.4VA 20V |
2,316 | - |
|
Datasheet | SE | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof |
